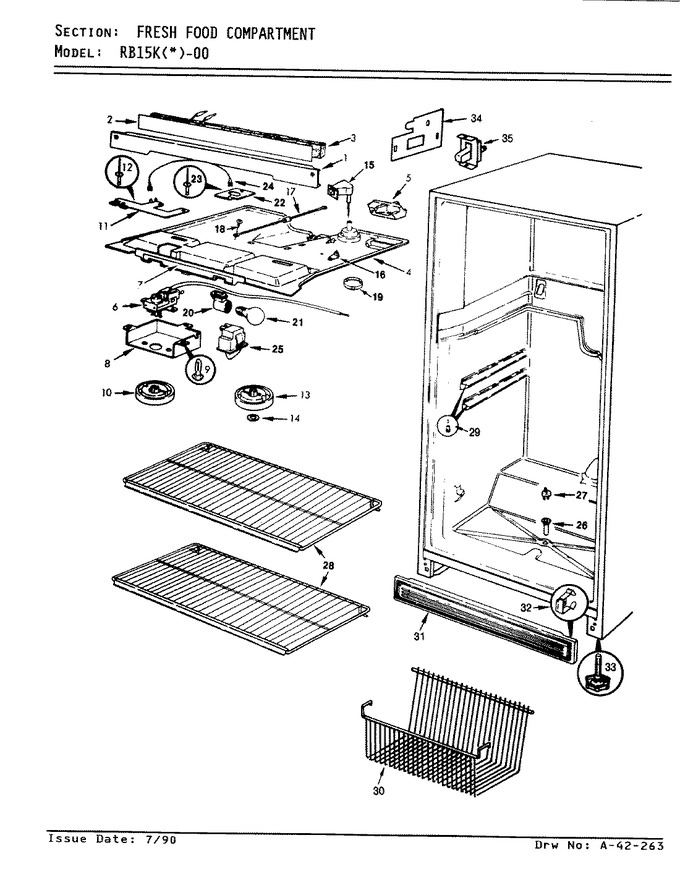

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 65275-23 | Screw |
|
- | |||||
| 1 | 65797-1-AM | Divider, Mullion (alm) |
|
- | |||||
| 2 | 68830-1 | Heater Wire |
|
- | |||||
| 2 | 68577-1 | Insulation |
|
- | |||||
| 3 | 68903-1 | Wire Harness |
|
- | |||||
| 3 | 60140-1 | Insulation |
|
- | |||||
| 4 | 68530-2 | Top, F.f. Compartment |
|
- | |||||
| 5 | 60120-2 | Deflector |
|
- | |||||
| 6 | 406013-1 | Screw |
|
- | |||||
| 6 | WP68601-6 | Control, Temperature (Replaces: 68119-3) |
|
Immediately | $ 233.80 | ||||
| 6 | 29675-22 | Ground Wire |
|
- | |||||
| 7 | 60571-65 | Insert |
|
- | |||||
| 8 | 405012-1 | Screw |
|
- | |||||
| 8 | 60083-1 | Cover, Temperature Control |
|
- | |||||
| 9 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 10 | 68600-1 | Knob, Control |
|
- | |||||
| 11 | 60147-1 | Bracket, Control |
|
- | |||||
| 12 | WP210720 | Rivet (Replaces: 26397-9) |
|
$ 12.14 | |||||
| 13 | 68600-2 | Knob, Frz. |
|
- | |||||
| 14 | 420092-900 | Washer, Spring |
|
- | |||||
| 15 | 67558-1 | Orifice, Damper |
|
- | |||||
| 16 | 67636-1 | Crank, Frz. Control |
|
- | |||||
| 17 | 67499-3 | Rod, Freezer Control |
|
- | |||||
| 18 | 420005-1 | Washer, Control Rod |
|
- | |||||
| 18 | WP59002061 | Screw (Replaces: 65275-13) |
|
$ 6.98 | |||||
| 19 | 67493-1 | Cover, Crank |
|
- | |||||
| 20 | 60577-1 | Socket, Light |
|
- | |||||
| 21 | W11679940 | Bulb, Light (Replaces: 68123-1) |
|
Immediately | $ 10.17 | ||||
| 22 | 60147-2 | Bracket, Light Socket |
|
- | |||||
| 23 | WP210720 | Rivet (Replaces: 26397-9) |
|
$ 12.14 | |||||
| 24 | 29675-28 | Ground Wire |
|
- | |||||
| 25 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 25 | 54653-28 | Cord, Switch/light |
|
- | |||||
| 26 | 54531-8 | Grommet |
|
- | |||||
| 27 | 65039-1 | Cap, Drain Tube |
|
- | |||||
| 28 | 60223-7 | Shelf |
|
- | |||||
| 29 | 21697-9 | Stud |
|
- | |||||
| 30 | 68225-2 | Trivet |
|
- | |||||
| 31 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 31 | 60237-23 | Kickplate |
|
- | |||||
| 32 | 60100-1 | Clip, Kickplate |
|
$ 5.85 | |||||
| 33 | W11117769 | Leg, Leveling (Replaces: 6012-8) |
|
Immediately | $ 16.61 | ||||
| 34 | 60583-1 | Bracket, Switch |
|
- | |||||
| 35 | 60585-1 | Switch, Mullion Heater |
|
- |
