SELECT A DIAGRAM

01 - Cover

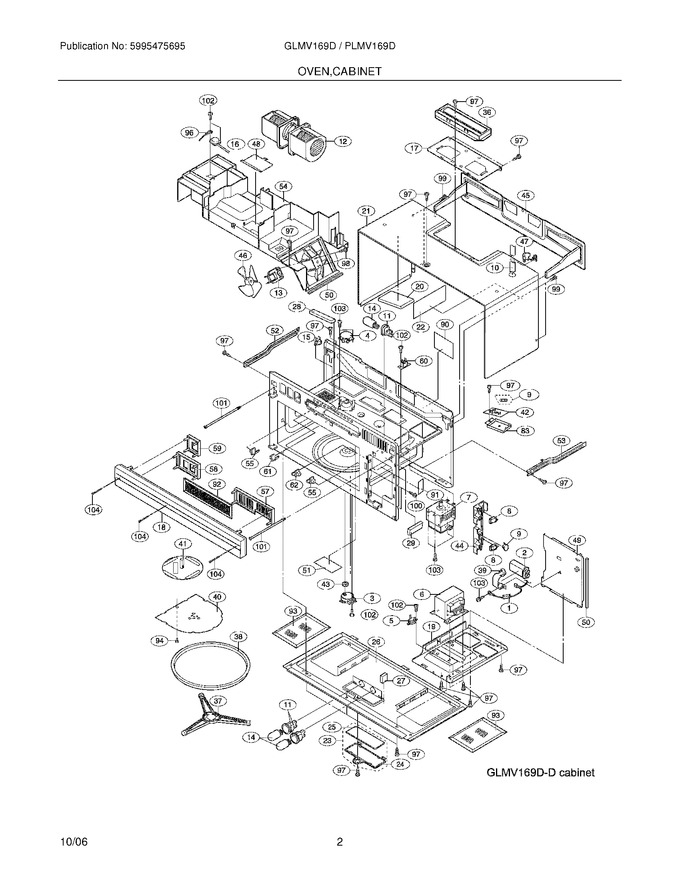

03 - Oven/cabinet


05 - Control Panel/door/misc


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5304440031		Lamp,incandescent ,20 W ,(3)			Immediately	$ 12.85
17	5304440232		Plate,rear Stay		Appelez-nous	-
18	5304456054		Grille,exhaust ,stainless Steel		Appelez-nous	-
19	5304440236		Base,transformer Mtg ,right Side		Appelez-nous	-
20	5304440237		Cushion,cabinet		Appelez-nous	-
21	5304445465		Cabinet,outer Casing ,black				$ 221.45
22	5304451803		Wiring Diagram,schematic ,label		Appelez-nous	-
23	5303319573		Lens/frame Assy,lamp				$ 117.34
24	5303319574		Frame,lens Holder				$ 60.17
25	5303319575		Lens,cooktop Lamp ,glass				$ 104.94
26	5304451823		Cover,unit Base				$ 164.78
27	5304441368		Cushion,base Cover Pad		Appelez-nous	-
28	5304441369		Cushion,cavity Top Pnl		Appelez-nous	-
29	5304441370		Cushion,magnetron Pad		Appelez-nous	-
36	5304464343		Damper Assy,exhaust   (Replaces: 5304440283)				$ 60.48
37	5304467717		Support Assy,turntable   (Replaces: 5304440284)				$ 122.18
38	5304440285		Tray,turntable ,glass				$ 92.03
39	5303319587		Retainer,capacitor Strap		Appelez-nous	-
40	5304440286		Cover,stirrer Fan		Appelez-nous	-
43	5304440288		Bushing,motor Shaft ,turntable				$ 16.45
44	5304440289		Latch Hook				$ 102.11
45	5304468135		Bracket,unit Mtg Plate ,rear   (Replaces: 5304440290)				$ 101.93
47	5303319605		Bushing,power Cord				$ 45.73
48	5304440292		Cover,oven Lamp		Appelez-nous	-
49	5304440293		Duct,hood Intake ,right Side		Appelez-nous	-
50	5304440294		Cushion,intake Duct				$ 9.35
51	5304440295		Lens,lamp Filter				$ 14.86
52	5304451826		Support,chassis ,left Side				$ 19.01
53	5304451827		Support,chassis ,right Side				$ 15.23
54	5304451828		Duct,exhaust Hood		Appelez-nous	-
55	5304440299		Support,rack ,front		Appelez-nous	-
57	5304440301		Cover A,grille Louver		Appelez-nous	-
58	5304440302		Cover B,grille Louver				$ 42.95
59	5304440303		Cover C,grille Louver				$ 42.95
61	5304441371		Support,rack ,left Rear				$ 4.99
62	5304441372		Support,rack ,right Rear		Appelez-nous	-
83	5303322975		Bracket,noise Filter ,angle				$ 17.43
90	5304440333		Label,caution-dhhs		Appelez-nous	-
91	5304440334		Label,caution-monitor		Appelez-nous	-
92	5304440335		Filter,inside Exhaust ,charcoal				$ 50.32
93	5303319568		Filter-grease, (2)			Immediately	$ 37.52
94	5304467773		Clip,canoe Type ,stirrer Cover   (Replaces: 5304440337)				$ 55.67
97	5304440340		Screw,4mm X 12mm		Appelez-nous	-
98	5303319637		Screw,4mm X 8mm		Appelez-nous	-
99	5303319639		Screw,wrapper,back				$ 7.79
100	5303319641		Screw				$ 12.76
101	5304440341		Screw,unit Mounting				$ 16.96
102	5303319633		Screw,3mm X 8mm		Appelez-nous	-
103	5303319636		Screw		Appelez-nous	-
104	5304441378		Screw,vent Grille ,black   (Replaces: 5303319640)				$ 15.90
F1	5304468869		Rectifier,high Voltage   (Replaces: 5304440019)				$ 92.14
F10	5304440028		Power Cord,electric				$ 119.07
F11	5303319561		Receptacle,lamp Socket ,oven				$ 61.45
F12	5304440029		Motor,hood Fan				$ 459.06
F13	5304493152		Motor,cooling Fan   (Replaces: 5304448490)				$ 87.43
F15	5304440032		Thermal Cutout,oven Cavity				$ 26.99
F16	5304440033		Sensor,humidity ,cook Control				$ 223.65
F2	5304470539		Capacitor,high Voltage   (Replaces: 5303319549)				$ 145.76
F3	5304440021		Motor-turntable   (Replaces: 5304448488)				$ 82.64
F4	5304448489		Motor,stirrer Fan		Appelez-nous	-
F41	5304440287		Stirrer Assembly		Appelez-nous	-
F42	5304492543		Filter,noise ,electronic   (Replaces: 5304451818)				$ 81.18
F46	5304440291		Fan Blade,mag Cooling Fan				$ 46.36
F5	5304440023		Thermal Cutout,hood				$ 58.13
F6	5304456053		Transformer,power		Appelez-nous	-
F60	5303319550		Fuse,magnetron				$ 117.23
F7	5304463439		Magnetron   (Replaces: 5304440025)				$ 257.99
F8	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F9	5303319559		Switch,monitor ,w/ceramic Fuse				$ 85.43
F96	5304440339		Wire,sensor Ground		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
