SELECT A DIAGRAM

01 - Cover


03 - Oven/cabinet

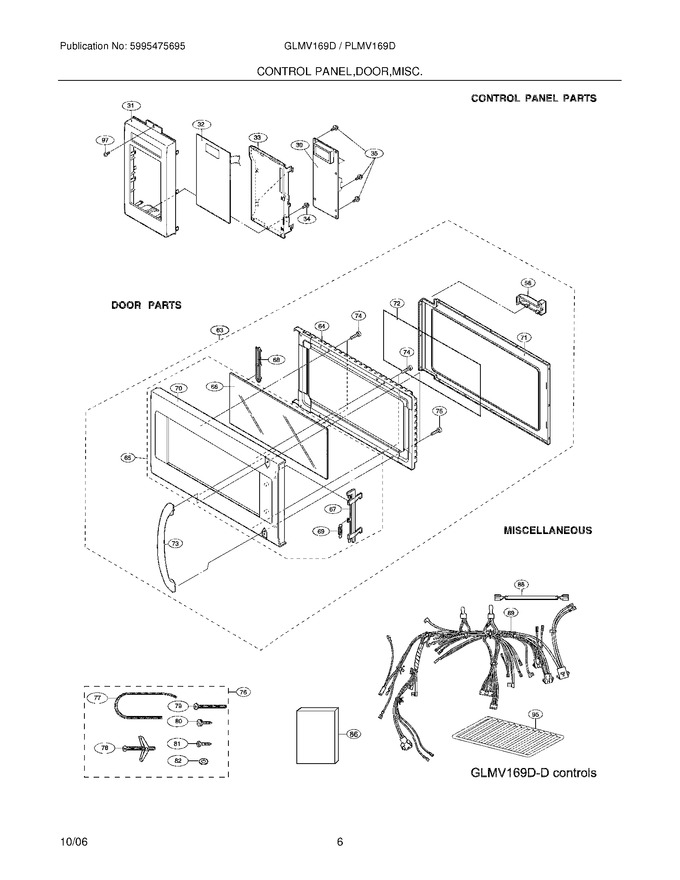

05 - Control Panel/door/misc


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	5304448491		Frame,control Panel ,stainless Steel				$ 211.67
33	5304440281		Panel,control Mount				$ 33.39
34	5303319584		Screw,control Panel ,3mm X 10mm		Appelez-nous	-
35	5304440282		Screw,control Board ,3mm X 10mm		Appelez-nous	-
56	5304440300		Door Stop		Appelez-nous	-
64	5304440305		Panel,inner Door ,black				$ 299.20
66	5304440311		Panel,glass ,door Front				$ 182.70
67	5304440314		Latch,door			Immediately	$ 51.13
68	5304440315		Clip,glass Retainer ,door				$ 3.81
69	5304440316		Spring,door Latch			Immediately	$ 61.00
71	5304440320		Frame,choke Cover ,inner Door		Appelez-nous	-
72	5304440321		Seal,door ,film		Appelez-nous	-
73	5304456145		Handle,door ,stainless Steel		Appelez-nous	-
74	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
75	5304458213		Screw,4 Mm X 12 Mm		Appelez-nous	-
76	5303319625		Hardware,installation ,kit				$ 163.64
77	5303318761		Sleeve,power Cord ,grommet				$ 25.05
78	5303318762		Screw,toggle				$ 11.71
79	5304453895		Screw,5mm X 60mm   (Replaces: 5303318764)				$ 16.68
80	5303318767		Screw,4mm X 12mm		Appelez-nous	-
81	5303318765		Screw,wood ,5mm X 35 Mm ,(6)		Appelez-nous	-
82	5303318766		Washer,flat ,30mm ,(2)				$ 19.74
86	5304451831		Template,installation ,wall		Appelez-nous	-
86	5304451830		Template,installation ,top		Appelez-nous	-
95	5304440338		Rack,microwave Oven ,wire				$ 256.10
97	5304440340		Screw,4mm X 12mm		Appelez-nous	-
F30	5304440245		Control Board,printed Circuit		Appelez-nous	-
F32	5304443989		Touch Control,key Pad ,black				$ 163.02
F63	5304458212		Door Assy,stainless ,w/handle		Appelez-nous	-
F88	5304440331		Wire,high Voltage-a		Appelez-nous	-
F89	5304451832		Wiring Harness,main-a		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
