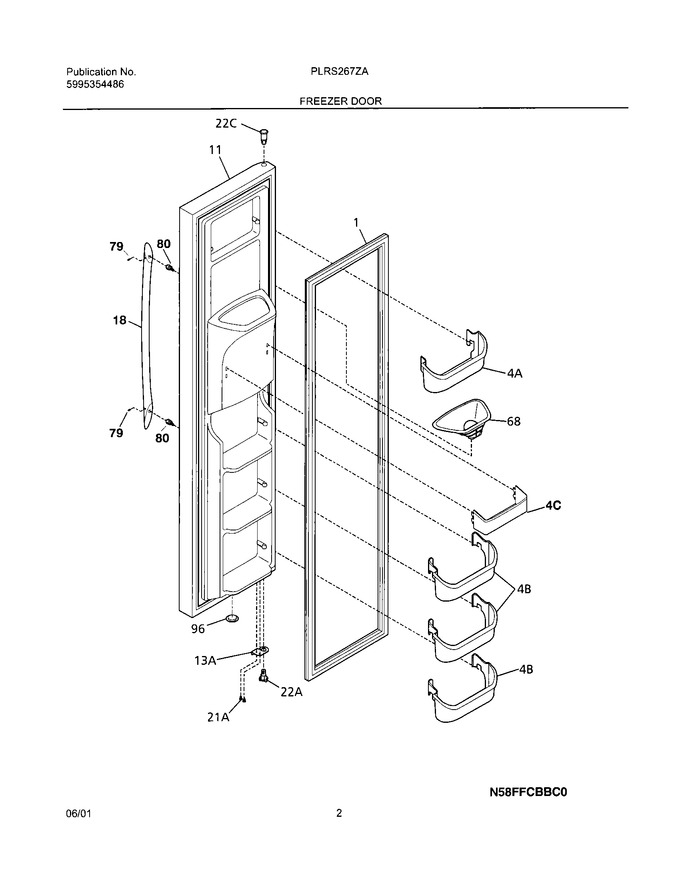

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241786014		Gasket-frzr Door,black ,magnetic   (Replaces: 240390606)				$ 95.17
4	240351602		Bin-door				$ 67.21
4	240334202		Bin-door,frzr-upper			Immediately	$ 67.21
4	240351702		Bin-door,frzr-dispenser				$ 97.39
11	240451816		Panel-frzr Door,stainless Steel ,complete Assy		Appelez-nous	-
13	5303918455		Door Stop,black ,frzr   (Replaces: 240456906)				$ 142.04
18	240409801		Handle-door,stainless Steel ,with Insert		Appelez-nous	-
21	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22	240328404		Bearing-hinge,black ,upper				$ 22.87
22	242000501		Bearing-hinge,closer   (Replaces: 240328202)				$ 7.14
68	240467701		Chute-ice		Appelez-nous	-
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder, 10 Ab, Handle Mounting   (Replaces: 218755501)			Immediately	$ 18.60
96	240345504		Plug-foam Hole,black		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	240323202		Harness-wiring,door		Appelez-nous	-
NI	5303918256		Dispenser Heater Kit				$ 474.16
NI	240545201		Connector-water,straight   (Replaces: 240352101)				$ 73.71

    View Diagram in Separate Window       Print Part List
