01 - Cover
03 - Freezer Door

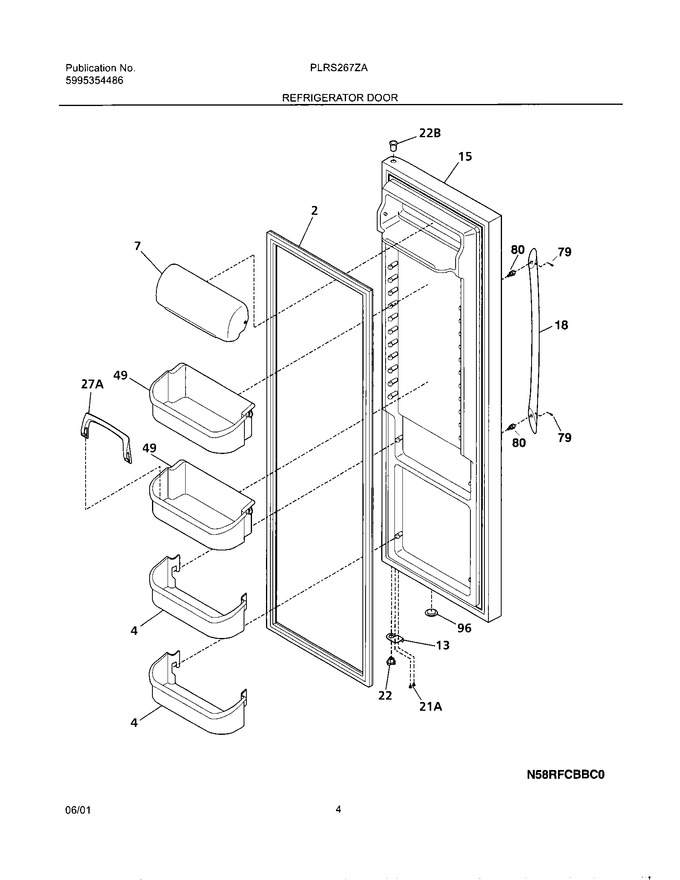

05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786005 | Gasket-refr Door,black ,magnetic (Replaces: 240390605) |
|
Immediately | $ 225.62 | ||||
| 4 | 240323002 | Bin-door,pseudo ,bottom |
|
Immediately | $ 67.21 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 12 | 240449704 | Nameplate,black |
|
$ 72.54 | |||||
| 13 | 5303918455 | Door Stop,black ,ref (Replaces: 240456905) |
|
$ 142.04 | |||||
| 15 | 240451909 | Panel-refr Door,stainless Steel ,complete Assy |
|
- | |||||
| 18 | 240409801 | Handle-door,stainless Steel ,with Insert |
|
- | |||||
| 21 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 22 | 240328201 | Bearing-hinge,closer |
|
Immediately | $ 17.72 | ||||
| 22 | 240328403 | Bearing-hinge,upper |
|
$ 14.85 | |||||
| 27 | 240396102 | Retainer,tall Bottle |
|
$ 19.13 | |||||
| 49 | 240356402 | Bin-door,gallon (Replaces: 240430305) |
|
Immediately | $ 106.83 | ||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder, 10 Ab, Handle Mounting (Replaces: 218755501) |
|
Immediately | $ 18.60 | ||||
| 96 | 240345504 | Plug-foam Hole,black |
|
- | |||||
| NI | 01300019EA | Cleaner, Stainless Steel (Replaces: 218490900) |
|
Immediately | $ 21.27 |
