SELECT A DIAGRAM
01 - Cover
03 - Door

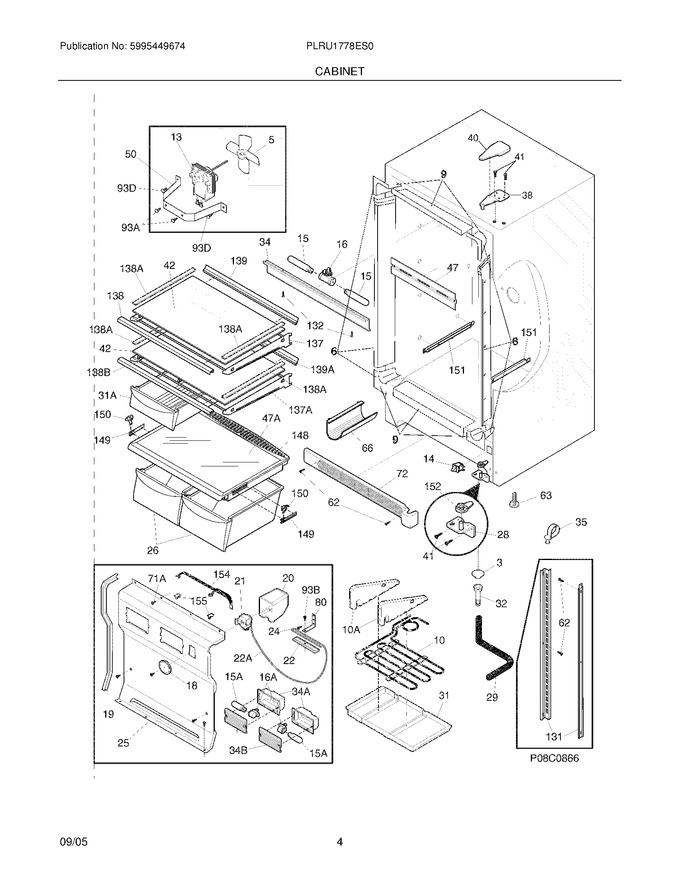

05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 62.17 | |||||
| 6 | 216604200 | Breaker Kit W/corners |
|
$ 227.12 | |||||
| 9 | 216603300 | Breaker Kit W/corners,32`` ,top Or Bottom |
|
$ 94.19 | |||||
| 10 | 216999400 | Tubing- Heater,formed |
|
$ 29.10 | |||||
| 14 | 216922800 | Switch,light/lamp ,ramp |
|
$ 12.22 | |||||
| 15 | 5304517886 | Light Bulb/lamp,long ,blue Tint ,40 W ,120v,(2) (Replaces: 216988100) |
|
Immediately | $ 73.06 | ||||
| 16 | 241622802 | Socket-light (Replaces: 241507803) |
|
$ 65.93 | |||||
| 18 | 216707200 | Knob,temp Control |
|
$ 44.10 | |||||
| 19 | 216204902 | Gasket-evap Cover |
|
Immediately | $ 35.74 | ||||
| 20 | 216967201 | Cover,temp Control (Replaces: 216967200) |
|
$ 15.18 | |||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 25 | 216949707 | Cover-evaporator |
|
- | |||||
| 26 | 216959900 | Pan-crisper,(2) |
|
$ 169.68 | |||||
| 28 | 216978200 | Hinge,bracket, Lower ,rh |
|
$ 48.93 | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313503) |
|
Immediately | $ 15.90 | ||||
| 31 | 216732400 | Pan-drain |
|
$ 208.48 | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 216979500 | Shield-light |
|
- | |||||
| 35 | 216629700 | Clip |
|
- | |||||
| 38 | 216939100 | Hinge-upper |
|
$ 59.54 | |||||
| 40 | 216809001 | Cover-upper Hinge,black |
|
$ 13.70 | |||||
| 41 | 216936800 | Screw-hinge,12-24x.700 Hwh |
|
- | |||||
| 42 | 297265900 | Glass-shelf,full Shelf (Replaces: 216983101) |
|
$ 156.15 | |||||
| 47 | 216661601 | Baffle-plate |
|
$ 51.76 | |||||
| 50 | 216394050 | Bracket,fan Motor Mount (Replaces: 216394000) |
|
$ 22.75 | |||||
| 62 | 131420300 | Screw, Cr Truss Head, 8-18ab X 0.750 |
|
$ 13.46 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 66 | 5303295947 | Rack-wine |
|
- | |||||
| 72 | 297036907 | Grille/kickplate,32`` ,black (Replaces: 297036901) |
|
$ 39.29 | |||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 131 | 241513001 | Channel-shelf Mtg,side ,(2) |
|
$ 112.24 | |||||
| 132 | 5303283898 | Screw, 6-20ab X 3/8 |
|
- | |||||
| 137 | 297050600 | Frame-shelf,cantilever ,(2) |
|
Immediately | $ 179.29 | ||||
| 138 | 297050700 | Trim-shelf,front |
|
$ 44.94 | |||||
| 139 | 297050800 | Trim-shelf,rear |
|
$ 50.03 | |||||
| 148 | 216979401 | Cover-crisper Pan,w/dampers&knobs |
|
$ 168.95 | |||||
| 149 | 5304492617 | Damper,humidity Cont. (Replaces: 240361301) |
|
Immediately | $ 8.69 | ||||
| 150 | 5304492617 | Knob,humidity Cont. (Replaces: 240361202) |
|
Immediately | $ 8.69 | ||||
| 151 | 216988200 | Support-crspr Cover,rh |
|
$ 68.04 | |||||
| 151 | 216988201 | Support-crspr Cover,lh |
|
$ 67.33 | |||||
| 152 | 216974600 | Bearing,hinge Closer |
|
$ 16.36 | |||||
| 154 | 297053000 | Wire,jumper |
|
$ 57.42 | |||||
| 155 | 30534600 | Clip,(2) (Replaces: 5303313703) |
|
$ 3.79 | |||||
| 10A | 216933701 | Bracket,drain Pan ,w/hole ,(2) |
|
$ 15.88 | |||||
| 15A | 241552802 | Light Bulb/lamp,short ,(2) (Replaces: 297048600) |
|
Immediately | $ 50.45 | ||||
| 16A | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 19.52 | |||||
| 22A | 297058500 | Tube,10`` ,plastic |
|
- | |||||
| 31A | 240530811 | Pan-meat,w/o Graphics ,clear (Replaces: 240530803) |
|
Immediately | $ 135.77 | ||||
| 34A | 297053101 | Shield-light,rh |
|
- | |||||
| 34A | 297053100 | Shield-light,lh |
|
- | |||||
| 34B | 297053200 | Lens,light |
|
$ 43.95 | |||||
| 47A | 240350608 | Insert-pan Cover,glass (Replaces: 240350650) |
|
Immediately | $ 45.50 | ||||
| 71A | 5304416289 | Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel |
|
- | |||||
| 93A | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping (Replaces: 216629600) |
|
$ 13.01 | |||||
| 93B | 216036600 | Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming |
|
- | |||||
| 93D | 216912400 | Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2) |
|
- | |||||
| F13 | 297309000 | Motor,fan ,115 V (Replaces: 216934100) |
|
Immediately | $ 55.32 | ||||
| F137 | 297050601 | Frame-shelf,cantilever |
|
$ 201.50 | |||||
| F138 | 216983601 | Trim-shelf,side |
|
$ 47.92 | |||||
| F138 | 297050701 | Trim-shelf,front |
|
$ 51.08 | |||||
| F139 | 297050801 | Trim-shelf,rear |
|
$ 44.04 | |||||
| F21 | 5304492453 | Control Temperature (Replaces: 216715500) |
|
Immediately | $ 269.25 | ||||
| F5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 49.03 | ||||
| NI | 297048000 | Screw,anchor ,no.8 ,white |
|
$ 12.05 | |||||
| NI | 216697904 | Energy Guide |
|
- | |||||
| NI | 297002600 | Gasket,light Socket |
|
- | |||||
| NI | 125963-48 | Insulation,24`` ,drain Tube (Replaces: 297001704) |
|
Immediately | $ 59.16 | ||||
| NI | 216917100 | Screw,8-18x.625 ,flat Sems ,(2) ,bracket |
|
- | |||||
| NI | 216742701 | Screw,8-18 X 9/16 ,black ,(4) |
|
- |
