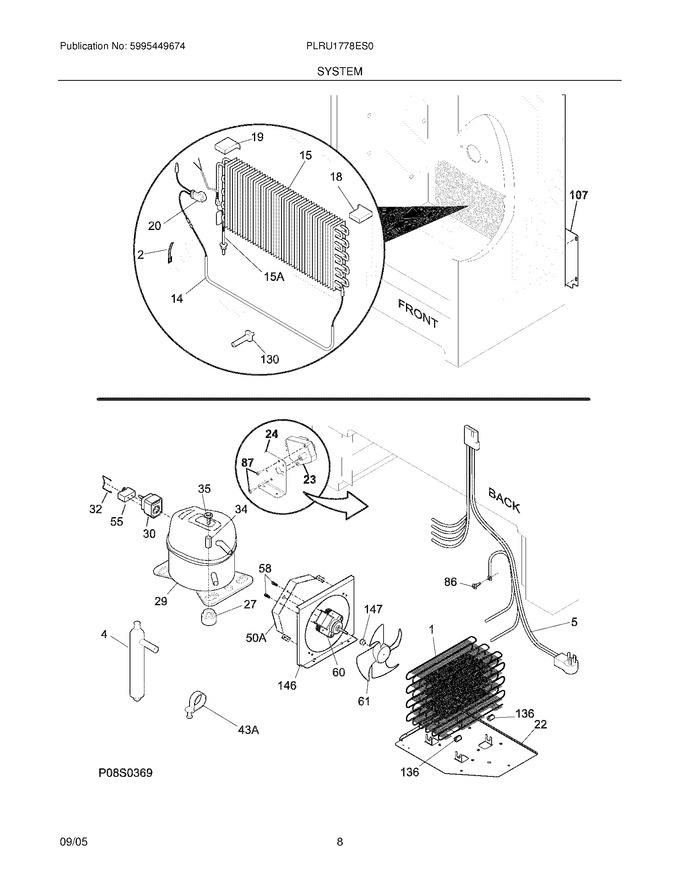

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 5 | 297033700 | Harness-main |
|
- | |||||
| 14 | 216730700 | Heater-defrost |
|
Immediately | $ 116.44 | ||||
| 18 | 216727600 | Insulator-evap,styrofoam |
|
- | |||||
| 19 | 216727700 | Insulator-evap,styrofoam |
|
- | |||||
| 20 | 216731001 | Thermostat, Defrost |
|
Immediately | $ 84.46 | ||||
| 22 | 216970300 | Base,condenser |
|
$ 38.96 | |||||
| 23 | 5304518034 | Timer,defrost ,12 Hour (Replaces: 216744400) |
|
Immediately | $ 57.55 | ||||
| 24 | 216968500 | Bracket-timer |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216954200 | Controller,compressor ,5 Speed |
|
$ 63.79 | |||||
| 32 | 216954300 | Clip,controller |
|
$ 17.01 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor |
|
$ 10.34 | |||||
| 58 | 240555002 | Screw,hex Washer Head ,8-32 X 0.375 (Replaces: 218897002) |
|
Immediately | $ 13.46 | ||||
| 86 | 216036600 | Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming |
|
- | |||||
| 87 | 08037849 | Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting |
|
$ 8.98 | |||||
| 107 | 297001900 | Shield,compressor ,compartment |
|
- | |||||
| 107 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 130 | 216486800 | Support,evaporator Mtg |
|
- | |||||
| 136 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| 146 | 216970200 | Shroud-fan Orfice |
|
$ 104.90 | |||||
| 147 | 240560001 | Ring-compression |
|
- | |||||
| 15A | 297217900 | Heat Exchanger (Replaces: 216751100) |
|
Immediately | $ 91.82 | ||||
| 43A | 5303212614 | Clip,harness Mount |
|
$ 2.88 | |||||
| 50A | 240524001 | Bracket,fan Motor Mount |
|
$ 185.70 | |||||
| F1 | 216970100 | Condenser |
|
$ 106.74 | |||||
| F15 | 297414901 | Evaporator (Replaces: 216737300) |
|
Immediately | $ 171.34 | ||||
| F29 | 5304507767 | Compressor,w/o Electricals (Replaces: 216966300) |
|
$ 726.41 | |||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938600) |
|
Immediately | $ 31.67 | ||||
| F55 | 218909912 | Capacitor-run,220 Vac ,12 Microfarad |
|
Immediately | $ 74.75 | ||||
| F60 | 5303918774 | Motor-condenser Fan (Replaces: 240525401) |
|
Immediately | $ 186.30 | ||||
| F61 | 240524102 | Fan Blade,galv Steel ,condenser Fan (Replaces: 240524101) |
|
Immediately | $ 39.43 | ||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 |
