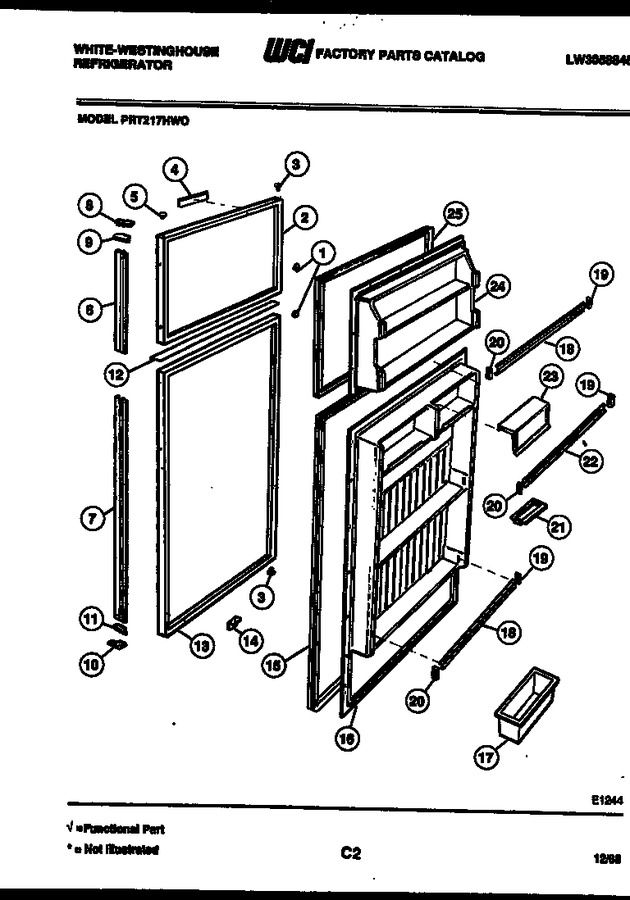

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G162977-01 | Button Plug-white |
|
- | |||||
| 1 | G162977-08 | Button Plug-avocado |
|
- | |||||
| 1 | G162977-09 | Button Plug-wheat |
|
- | |||||
| 1 | G162977-10 | Button Plug-coffee |
|
- | |||||
| 1 | G162977-11 | Button Plug-almond |
|
- | |||||
| 2 | 3916335 | Freezer Door-white |
|
- | |||||
| 2 | 3916339 | Freezer Door-almond |
|
- | |||||
| 2 | 3916337 | Freezer Door-wheat |
|
- | |||||
| 2 | 3916336 | Freezer Door-avoc |
|
- | |||||
| 2 | 3916338 | Freezer Door-coffee |
|
- | |||||
| 3 | G183138 | Bearing Hinge (8) |
|
- | |||||
| 4 | R000304001 | Nameplate Assy |
|
- | |||||
| 5 | G169332-09 | Button Plug, Wheat |
|
- | |||||
| 5 | G169332-01 | Button Plug, White |
|
- | |||||
| 5 | G169332-08 | Button Plug-avocado |
|
- | |||||
| 5 | G169332-10 | Button-plug, Coffee |
|
- | |||||
| 5 | G169332-11 | Button Plug, Almond |
|
- | |||||
| 6 | G177141-07 | Handle-freezer Door |
|
- | |||||
| 7 | G177141-04 | Handle-refr Door |
|
- | |||||
| 8 | G179270 | Handle Trim-top (2) |
|
- | |||||
| 9 | G177142 | Handle End-top (2) |
|
- | |||||
| 10 | G179271 | Handle Trim-bottom (2) |
|
- | |||||
| 11 | G177143 | Handle End-bottom (2) |
|
- | |||||
| 12 | G178328-02 | Trim, Door Top |
|
- | |||||
| 13 | 3916341 | Refr Door-avocado |
|
- | |||||
| 13 | 3916340 | Refr Door-white |
|
- | |||||
| 13 | 3916344 | Refr Door-almond |
|
- | |||||
| 13 | 3916343 | Refr Door-coffee |
|
- | |||||
| 13 | 3916342 | Refr Door-wheat |
|
- | |||||
| 14 | G155072 | Door Stop-refr |
|
- | |||||
| 15 | G186932-13 | Gasket-refr Door |
|
- | |||||
| 16 | 3001614 | Inner Panel-refr |
|
- | |||||
| 17 | G173948-19 | Egg Container |
|
- | |||||
| 18 | G161019-51 | Rack-refr Lower |
|
- | |||||
| 19 | G185363-01 | Support Rs (4) |
|
- | |||||
| 20 | G185364-01 | Support-ls (4) |
|
- | |||||
| 21 | G161079 | Butter Dish |
|
- | |||||
| 22 | G161019-52 | Rack-refr Upper |
|
- | |||||
| 23 | R000901100 | Dairy Door (2) |
|
- | |||||
| 24 | 3001613 | Inner Panel-freezer |
|
- | |||||
| 25 | G186932-14 | Gasket-freezer Door |
|
- | |||||
| *17634 | G89643 | Insulation-door (bulk) |
|
- | |||||
| 12A | G153407-60 | Tape-trim Mtg (non-illustrated) |
|
- | |||||
| 14A | G155072 | Door Stop-freezer (non-illustrated) |
|
- | |||||
| 14B | G185566 | Screw |
|
- | |||||
| 16A | G162585 | Screw |
|
- | |||||
| 18A | G161019-51 | Rack-frzr (2) |
|
- | |||||
| 24A | G162585 | Screw |
|
- | |||||
| 4A | G176986 | Frame-nameplate |
|
- | |||||
| 4B | G177218-01 | Label-nameplate |
|
- | |||||
| 4C | G153407-12 | Tape-nameplate Mtg |
|
- | |||||
| 7A | G185566 | Screw |
|
- | |||||
| 7B | G177144 | Clip-door Handle (8) (non-illustrated) |
|
- |
