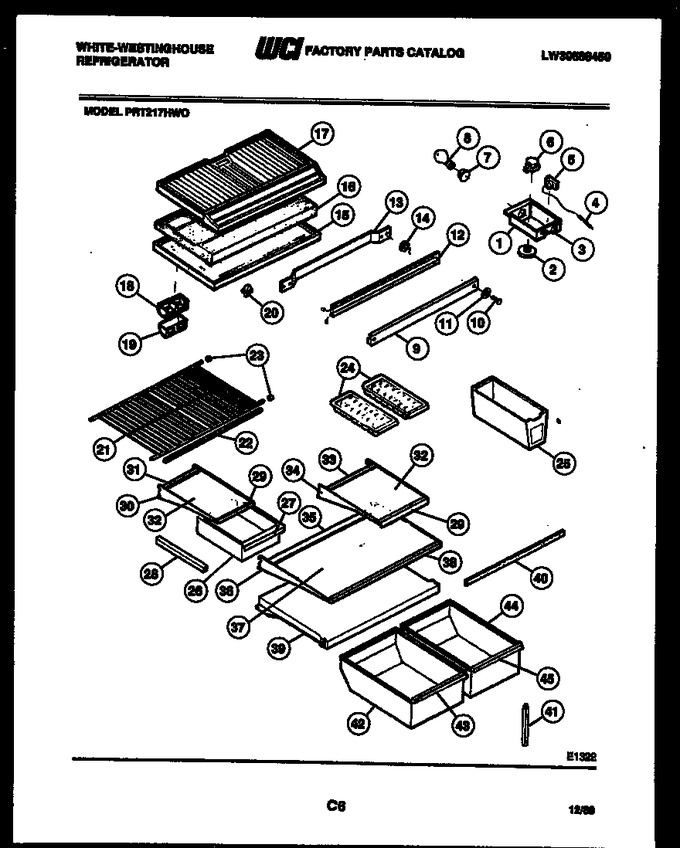

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G176722-02		Control Box		Appelez-nous	-
2	G490107-02		Knob-temp Control		Appelez-nous	-
3	G180694		Label-control Box		Appelez-nous	-
4	G142176-11		Sleeve-plastic		Appelez-nous	-
5	3200810		Control-temperature		Appelez-nous	-
6	G187484		Timer-defrost		Appelez-nous	-
7	G168302		Light Socket		Appelez-nous	-
8	G25806		Light Bulb		Appelez-nous	-
9	3200370		Mullion-almond		Appelez-nous	-
9	3200366		Mullion-white		Appelez-nous	-
9	3200368		Mullion-wheat		Appelez-nous	-
9	3200369		Mullion-coffee		Appelez-nous	-
9	3200367		Mullion-avocado		Appelez-nous	-
10	G183103		Screw-mullion (4)		Appelez-nous	-
11	G166847		Washer-no. 10 Steel (2)		Appelez-nous	-
12	3018916		Heater-mullion		Appelez-nous	-
13	G490087		Strap, Mullion Mtg		Appelez-nous	-
14	3200464		Spacer-mullion (2)		Appelez-nous	-
15	3001651		Top Panel-refr		Appelez-nous	-
16	G184683		Divider-styrofoam		Appelez-nous	-
17	G184604		Bottom Panel-freezer		Appelez-nous	-
18	G162675		Air Deflector		Appelez-nous	-
19	G162178		Cover, Deflector		Appelez-nous	-
20	G187200		Light Switch		Appelez-nous	-
21	G177059-05		Shelf, Freezer		Appelez-nous	-
22	3001636		Trim-freezer Shelf		Appelez-nous	-
23	G166495-01		End Cap-shelf (2)		Appelez-nous	-
24	G156376-01		Ice Tray (2)		Appelez-nous	-
25	G161015-13		Ice Container		Appelez-nous	-
26	G176918-03		Meat Pan		Appelez-nous	-
27	G177343-02		Trim-meat Pan		Appelez-nous	-
28	G187215-01		Hanger-pan L.s.		Appelez-nous	-
29	G187267-11		Trim-shelf Front (3)		Appelez-nous	-
30	G187217-01		Frame-meat Pan Shelf		Appelez-nous	-
31	G172409-09		Trim-shelf Rear		Appelez-nous	-
32	G171654-27		Glass-half Shelf (3)		Appelez-nous	-
33	G172409-10		Trim-shelf Rear (2)		Appelez-nous	-
34	G178323-03		Frame-half Shelf (2)		Appelez-nous	-
35	G172409-11		Trim, Shelf, Rear		Appelez-nous	-
36	G178323-05		Frame-full Shelf		Appelez-nous	-
37	G171654-29		Glass-full Shelf		Appelez-nous	-
38	G187267-10		Trim-shelf Front		Appelez-nous	-
39	G490064-09		Cover-crisper Pan		Appelez-nous	-
40	G180108-07		Gasket-pan Cover		Appelez-nous	-
41	G166310-06		Support-pan Cover		Appelez-nous	-
42	G490015-02		Pan-fruit Ls		Appelez-nous	-
43	G177343-01		Trim-pan Ls		Appelez-nous	-
44	R000901114		Pan-moist Seal Rs		Appelez-nous	-
45	G177343-07		Trim-pan Rs		Appelez-nous	-
15A	G162673		Screw-panel Mtg (3) (non-illustrated)		Appelez-nous	-
16A	3001637		Wiring Harness-divider (non-illustrated)		Appelez-nous	-
1A	G187363		Screw		Appelez-nous	-
28A	G187216-01		Hanger-pan R.s. (non-illustrated)		Appelez-nous	-
28B	G184823		Screw-hanger Mtg (2) (non-illustrated)		Appelez-nous	-
5A	G107080		Screw		Appelez-nous	-
6A	G105289		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
