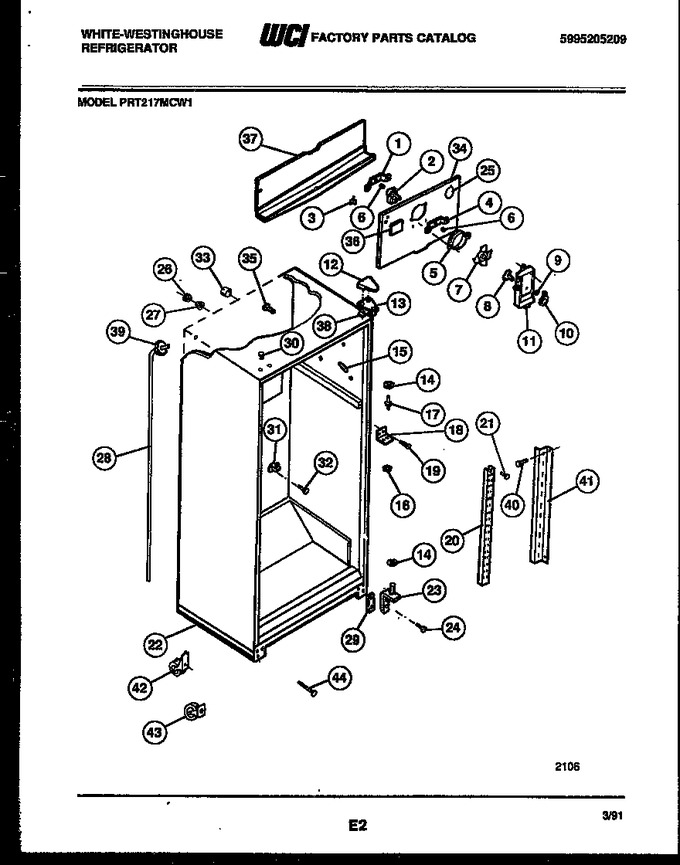

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303205119		Bracket, Rear		Appelez-nous	-
2	5300158289		Motor, Fan			Immediately	$ 149.94
3	5308000107		Connector Bracket				$ 33.23
4	5303205118		Bracket - Front		Appelez-nous	-
5	5308000124		Orifice Ring				$ 53.58
6	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
7	5308000010		Fan Blade			Immediately	$ 49.03
8	5303001331		Damper				$ 31.71
9	5303001028		Push Nut - Damper		Appelez-nous	-
10	3206381		Knob - Damper Control		Appelez-nous	-
11	5303206544		Cover-fan		Appelez-nous	-
12	5308012820		Hinge Cover, White		Appelez-nous	-
13	5308012843		Hinge-top				$ 71.47
14	5308000007		Washer-hinge (2)		Appelez-nous	-
15	5303202336		Corner-trim (white)		Appelez-nous	-
16	5308000186		Washer - Hinge			Immediately	$ 6.02
17	5308000184		Pin-center Hinge				$ 8.87
18	5303001369		Bracket- Center Hinge		Appelez-nous	-
19	5308012258		Screw				$ 2.25
20	5303015409		Channel-ctr		Appelez-nous	-
21	5308016568		Screw-ctr Channel Mtg (3)		Appelez-nous	-
22	5303212487		Base-cabinet		Appelez-nous	-
23	5303212489		Bracket, Bottom Hinge		Appelez-nous	-
24	5303001320		Screw-hinge Gusset Mtg (6)		Appelez-nous	-
25	5303208309		Plug, Short Test Hole				$ 45.50
26	5303001287		Ferrule-outer		Appelez-nous	-
27	5303001286		Ferrule-inner		Appelez-nous	-
28	5303210377		Drain Tube & Ring Seal				$ 109.31
29	5303212488		Shim, Bottom Hinge				$ 5.25
30	5303001388		Plug - Hinge - White (2)				$ 2.60
31	5308000056		Spout-drain Tube				$ 11.66
32	5303001361		Push Pin - Drain Spout		Appelez-nous	-
33	5303001198		Tube, Rubber (2)		Appelez-nous	-
34	5308013665		Cover, Evaporator Coil		Appelez-nous	-
35	5308000097		Support, Cover (2)		Appelez-nous	-
36	5303018193		Plug-decorative		Appelez-nous	-
37	5303001470		Drain Trough		Appelez-nous	-
38	5303001037		Shim, Top Hinge				$ 12.39
39	5303207353		Ring - Seal				$ 6.81
40	5308010253		Screw-channel Mtg (6)		Appelez-nous	-
41	5308000302		Channel-shelf Mtg (2)		Appelez-nous	-
42	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
43	5303212490		Roller Assy, Front, (2)		Appelez-nous	-
44	5303271412		Bolt-adj (2)				$ 37.64
*42926	5308012296		Tapping Plate (4)				$ 47.44
*42926	5308016571		Plug-liner (5)				$ 4.79
11A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
11B	5303206545		Label-fan Cover (non-illustrated)		Appelez-nous	-
13A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
23A	5303212597		Gusset-tapping Plate Rh (non-illustrated)		Appelez-nous	-
23B	5303212596		Gusset-tapping Plate (lh) (non-illustrated)		Appelez-nous	-
34A	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
34B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
3A	5303210353		Screw-brkt Mtg (non-illustrated)		Appelez-nous	-
42A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
42B	5308009762		Screw-roller Mtg (2) (non-illustrated)		Appelez-nous	-
5A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
