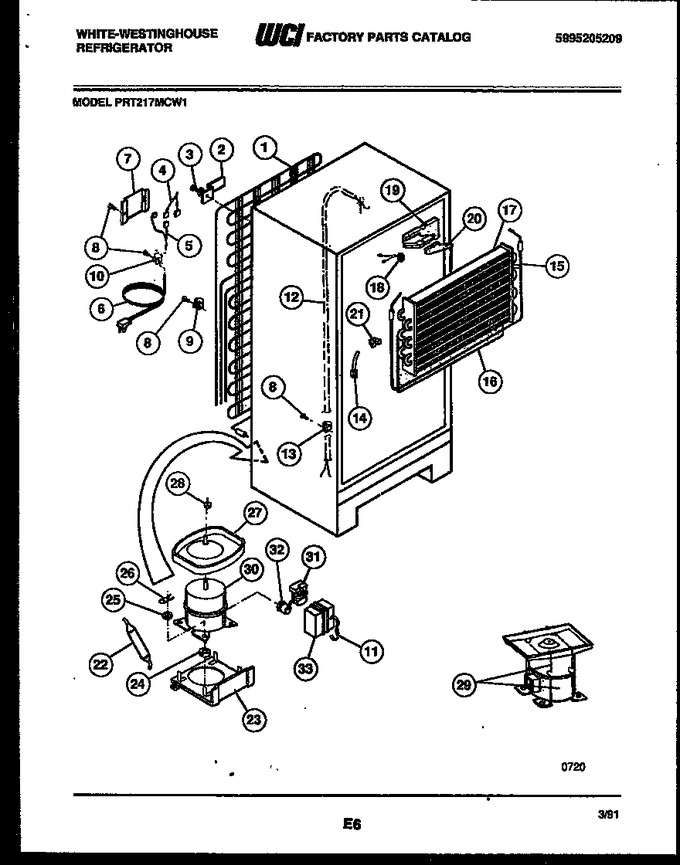

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300163133 | Condenser |
|
- | |||||
| 2 | 5308000296 | Bracket,condenser Mtg ,(4) |
|
$ 30.20 | |||||
| 3 | 5308000039 | Screw |
|
- | |||||
| 4 | 5303207109 | Wiring Harness-control |
|
- | |||||
| 5 | 5303001347 | Wiring Harness-compr |
|
- | |||||
| 6 | 5316254901 | Service Cord |
|
- | |||||
| 7 | 5303001197 | Cover-wiring |
|
- | |||||
| 8 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 9 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 10 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 11 | 5303211232 | Strap-term Cover |
|
- | |||||
| 12 | 5308000728 | Heat Exchanger |
|
- | |||||
| 13 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 14 | 5308000110 | Strap, Evap/ Heater (2) |
|
Immediately | $ 59.82 | ||||
| 15 | 5317842502 | Heater-defrost |
|
$ 133.96 | |||||
| 16 | 5316651102 | Insulator-evaporator |
|
$ 53.04 | |||||
| 17 | 5303271578 | Evaporator Coil |
|
- | |||||
| 18 | 5303917954 | Thermostat-defrost (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 19 | 5308013648 | Insulation Block, Rh |
|
- | |||||
| 20 | 5303007287 | Insulation Plug, Rh |
|
- | |||||
| 21 | 5308017227 | Insulation Block, Lh |
|
- | |||||
| 22 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 23 | 5308013663 | Plate-compr Mtg |
|
- | |||||
| 24 | 5308008778 | Grommet (4) |
|
- | |||||
| 25 | 5308003633 | Washer (4) |
|
$ 35.67 | |||||
| 26 | 5308003596 | Clip (4) |
|
$ 6.62 | |||||
| 27 | 5300171129 | Pan-defrost-orig Compressor |
|
- | |||||
| 28 | 5303001348 | Lock Nut, Pan Mtg |
|
$ 2.73 | |||||
| 29 | 5303916001 | Pan-retainer Kit-included W/ Service Compr |
|
$ 78.75 | |||||
| 30 | 5303916012 | Compressor W/electricals-service |
|
- | |||||
| 31 | 5303007173 | Relay |
|
$ 207.43 | |||||
| 32 | 5303270294 | Overload |
|
- | |||||
| 33 | 5303209254 | Cover-terminal |
|
- | |||||
| *42939 | 5300189383 | Hot Tube Repair Kit-svce |
|
$ 613.15 | |||||
| 27A | 5300184715 | Pan Defrost - Service Comp (non-illustrated) |
|
- | |||||
| 27B | 5308017610 | Sound Tape-pan (non-illustrated) |
|
- | |||||
| 30A | 5303916391 | Capacitor-run (non-illustrated) |
|
- | |||||
| 3A | 5308009617 | Washer, No. 10 Ext Tooth Lock (non-illustrated) |
|
- |
