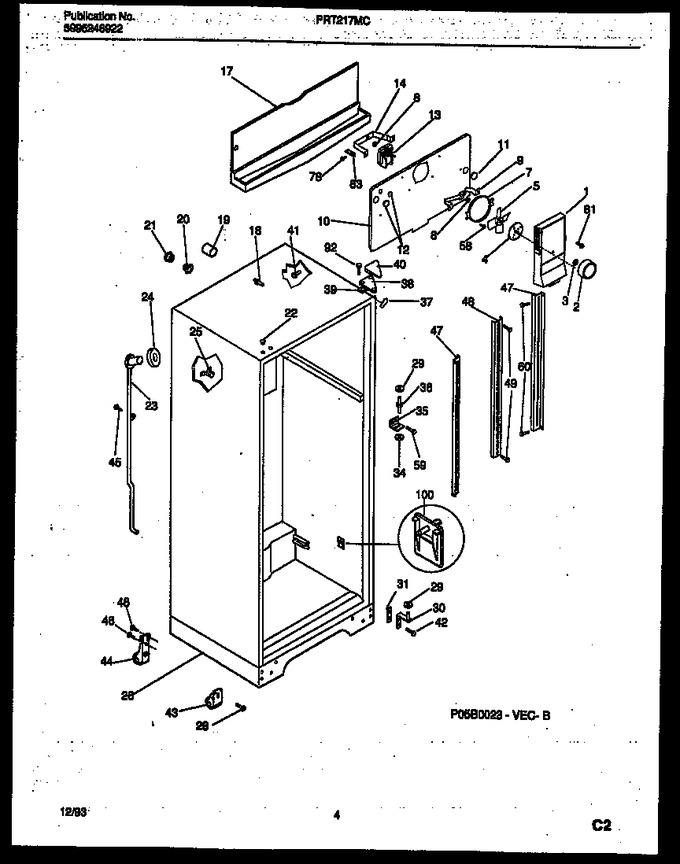

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206544 | Cover-fan |
|
- | |||||
| 2 | 3206381 | Knob - Damper Control |
|
- | |||||
| 3 | 5303001028 | Nut,push-on |
|
- | |||||
| 4 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 10 | 5308013665 | Cover-evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 215079100 | Plug-wtr Inlet Tube, Round |
|
$ 6.25 | |||||
| 12 | 215079000 | Plug-harness Hole, Round |
|
$ 8.61 | |||||
| 13 | 5300158289 | Motor-evap Fan (Replaces: 215360800) |
|
Immediately | $ 149.94 | ||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 17 | 5303001470 | Trough-drain |
|
- | |||||
| 18 | 215245000 | Support-evap Cover |
|
$ 25.20 | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 20 | 5303001286 | Ferrule-inner |
|
- | |||||
| 21 | 5303001287 | Ferrule-outer |
|
- | |||||
| 22 | 5303001388 | Plug-button, White, Upr Hinge Holes |
|
$ 2.60 | |||||
| 23 | 5303210377 | Tube-drain, W/seal Ring |
|
$ 109.31 | |||||
| 24 | 5303207353 | Seal Ring, Drain Tube |
|
$ 6.81 | |||||
| 25 | 5308000056 | Spout-drain Tube |
|
$ 11.66 | |||||
| 26 | 5303212487 | Base-cabinet |
|
- | |||||
| 28 | 5303271412 | Bolt-roller Adj, Indt Hx Hd Sems, 1/4-28 X 2-3/4, (2) (n |
|
$ 37.64 | |||||
| 29 | 5308000007 | Washer, .34 X .62 X .05, Nylon |
|
- | |||||
| 30 | 5303212489 | Bracket-lower Hinge, W/ Hinge Pin |
|
- | |||||
| 31 | 5303212488 | Shim-lower Hinge |
|
$ 5.25 | |||||
| 34 | 5308000186 | Washer, .34 X .62 X .10, Nylon |
|
Immediately | $ 6.02 | ||||
| 35 | 5303001369 | Bracket-ctr Hinge |
|
- | |||||
| 36 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 37 | 5303202336 | Trim-cabinet Corner, White |
|
- | |||||
| 38 | 5308012843 | Bracket-upper Hinge |
|
$ 71.47 | |||||
| 39 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 40 | 5308012820 | Cover-upper Hinge, White |
|
- | |||||
| 41 | 5304509705 | Grommet, Shelf/rod Mtg, Rh (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 10A | 5303209636 | Screw-coil Cover, Cr Pan Head, 8-15(a) X 5/8 (non-illustrated) |
|
- | |||||
| 1A | 5303206545 | Label-fan Cover (non-illustrated) |
|
- | |||||
| 25A | 5303001361 | Pin-push, Plastic (non-illustrated) |
|
- | |||||
| 30A | 5303212596 | Tapping Plate/gusset, Lh (non-illustrated) |
|
- | |||||
| 30B | 5303212597 | Tapping Plate/gusset, Rh (non-illustrated) |
|
- | |||||
| 38A | 5308012296 | Tapping Plate, Upper Hinge, (2) (non-illustrated) |
|
$ 47.44 | |||||
| 41A | 5308000039 | Screw |
|
- | |||||
| 41B | 5304500407 | Grommet, Shelf Mtg, Lh (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 |
