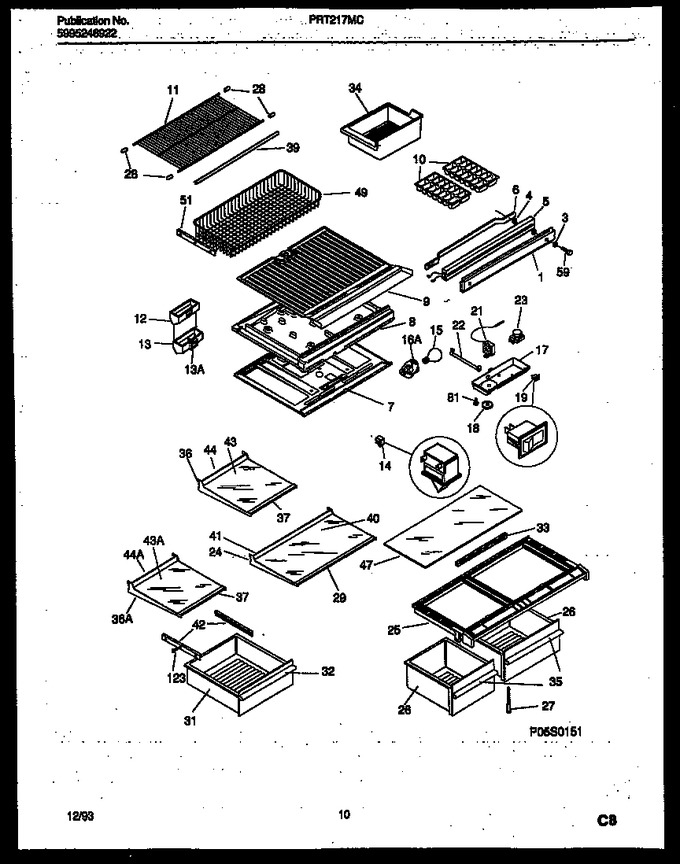

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 40 | 5303206536 | Glass-shelf, Full Shelf |
|
- | |||||
| 41 | 5303206576 | Trim-full Shelf, Rear |
|
- | |||||
| 42 | 5303210016 | Hanger, Meat Pan, Lh |
|
$ 134.09 | |||||
| 43 | 5303206532 | Glass-shelf, Half Shelf, (2) |
|
- | |||||
| 44 | 3204795 | Trim-half Shelf, Rear, (2) |
|
- | |||||
| 47 | 5303206539 | Insert-pan Cover, Glass |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 123 | 08014528 | Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P |
|
$ 4.31 | |||||
| *83631 | 3200316 | Retainer-glass |
|
- | |||||
| *83631 | 3200610 | Retainer-glass |
|
- | |||||
| *83631 | 3018724 | Retainer-glass |
|
- | |||||
| 42A | 5303210017 | Hanger, Meat Pan, Rh (non Illustrated) |
|
$ 107.89 | |||||
| 43A | 5303206527 | Glass-shelf, Meat Kpr Shelf |
|
- | |||||
| 44A | 3204799 | Trim-meat Kpr Shelf, Rear |
|
- |
