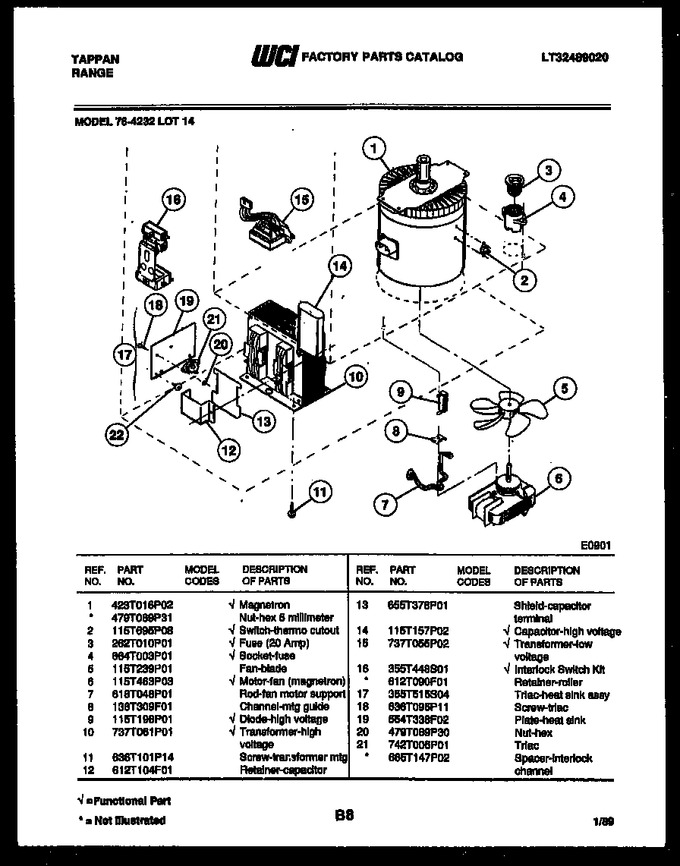

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 423T016P02 | Magnetron |
|
- | |||||
| 2 | 115T695P08 | Switch, Thermo Cutout |
|
- | |||||
| 3 | 262T010P01 | Fuse (20 Amp) |
|
- | |||||
| 4 | 664T003P01 | Socket, Fuse |
|
- | |||||
| 5 | 115T239P01 | Fan Blade |
|
- | |||||
| 6 | 115T463P03 | Motor-fan (magnetron) |
|
- | |||||
| 7 | 618T048P01 | Rod-fan Motor Support |
|
- | |||||
| 8 | 136T309F01 | Channel Mtg Guide |
|
- | |||||
| 9 | 115T198P01 | Diode-high Voltage |
|
- | |||||
| 10 | 737T061P01 | Transformer High Voltage |
|
- | |||||
| 11 | 636T101P14 | Screw-transformer Mtg |
|
- | |||||
| 12 | 612T104F01 | Retainer, Capacitor |
|
- | |||||
| 13 | 655T378P01 | Shield, Capacitor Terminal |
|
- | |||||
| 14 | 115T157P02 | Capacitor-high Voltage |
|
- | |||||
| 15 | 737T055P02 | Transformer, Low Voltage |
|
- | |||||
| 16 | 355T448S01 | Interlock Switch Kit |
|
- | |||||
| 17 | 355T515S04 | Triac Heat Sink Assy |
|
- | |||||
| 18 | 636T095P11 | Screw-triac |
|
- | |||||
| 19 | 554T338F02 | Plate, Heat Sink |
|
- | |||||
| 20 | 479T069P30 | Nut Hex |
|
- | |||||
| 21 | 742T005P01 | Triac |
|
- | |||||
| *20384 | 665T147P02 | Spacer-interlock Channel |
|
- | |||||
| 16A | 612T090F01 | Retainer Roller (non-illustrated) |
|
- | |||||
| 1A | 479T069P31 | Nut-hex 5 Millimeter (non-illustrated) |
|
- |
