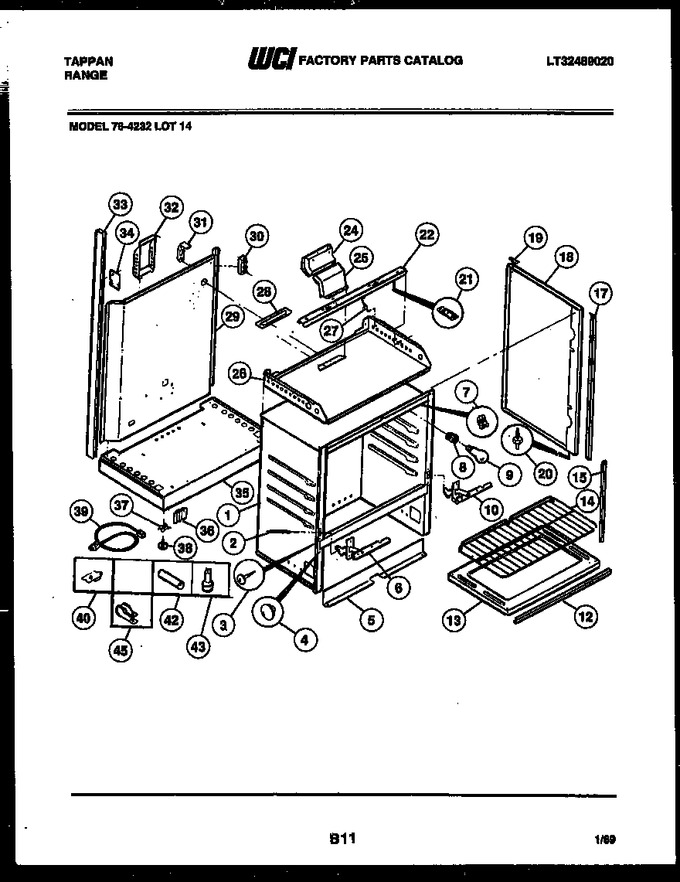

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 675T041P01 | Spring-oven Door |
|
- | |||||
| 3 | 636T066P06 | Screw-shoulder |
|
- | |||||
| 4 | 557T021P31 | Plug, Button |
|
- | |||||
| 5 | 655T308F02 | Shield, Wool |
|
- | |||||
| 6 | 117T013S13 | Cam-oven Door |
|
- | |||||
| 7 | 145T025P01 | Clip-thermo Bulb |
|
$ 1.76 | |||||
| 8 | 355T330S01 | Socket-oven Light |
|
- | |||||
| 9 | 374T018P05 | Bulb-oven Light |
|
- | |||||
| 10 | 117T013S14 | Cam, Oven Door, Rh |
|
- | |||||
| 12 | 058T035F01-86 | Bottom, Oven |
|
- | |||||
| 13 | 647T068P02 | Seal-door Bottom |
|
- | |||||
| 14 | 591T073P02 | Rack-door |
|
- | |||||
| 15 | 115T647P03 | Seal-door (side) |
|
- | |||||
| 17 | 740T431F01 | Trim-body Panel |
|
- | |||||
| 18 | 515T047F16-57 | Panel-bodyside-avocado (2) |
|
- | |||||
| 19 | 280T028P02 | Glide-main Top |
|
- | |||||
| 20 | 550T034P01 | Pin-body Panel/base |
|
- | |||||
| 21 | 241T017P23 | Fastener-wire Retainer |
|
- | |||||
| 22 | 136T310F03-18 | Channel-top Burner Support |
|
- | |||||
| 24 | 250T009W03-18 | Flue-back-upper |
|
- | |||||
| 25 | 250T013W01-18 | Flue Box (lower) |
|
- | |||||
| 26 | 095T029W16-86 | Burner Box |
|
- | |||||
| 27 | 302T019P01 | Hinge-main Top |
|
- | |||||
| 28 | 3131536 | Shield-wool - Vent |
|
- | |||||
| 29 | 021T043F05-18 | Back-main |
|
- | |||||
| 30 | 709T033P02 | Terminal Block |
|
- | |||||
| 31 | 072T612F02 | Bracket |
|
- | |||||
| 32 | 174T220F01 | Cover-igniter |
|
- | |||||
| 33 | 136T148W05 | Channel-post |
|
- | |||||
| 34 | 694T088F01 | Support Plate-upper Oven |
|
- | |||||
| 35 | 036T054W05-18 | Base-main |
|
- | |||||
| 36 | 136T283F01 | Channel Stiffener |
|
- | |||||
| 37 | 241T017P10 | Fastener-leveling Leg |
|
- | |||||
| 38 | 636T004P01 | Screw-leveling |
|
- | |||||
| 39 | 171T030P01 | Cord-range Power Supply |
|
- | |||||
| 40 | 241T017P67 | Fastener-8 A U-type |
|
- | |||||
| 42 | 660T032P01 | Sleeve, Insulator |
|
- | |||||
| 43 | 711T047P93 | Terminal |
|
- | |||||
| 45 | 241T017P128 | Fastener, Clamp |
|
- | |||||
| *20392 | 328T015P47 | Insulation-wool (top & Sides) |
|
- | |||||
| *20392 | 328T015P37 | Insulation-wool (back) |
|
- | |||||
| *20392 | 554T353P01 | Plate-wall |
|
- | |||||
| *20392 | 597T040P01 | Receptacle-wall |
|
- | |||||
| *20392 | 612T094P01 | Retainer-oven Brnr |
|
- | |||||
| *20393 | 328T015P15 | Insulation-wool (channel) |
|
- | |||||
| 10A | 355T588P01 | Door Adjustment Kit (non-illustrated) |
|
- |
