Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304506125 Gasket-door,gray   (Replaces: 216522315) Special Order $ 232.02

2 216362700 Lock Assy Special Order $ 90.30

5 216362800 Key, Lock Special Order $ 5.79

7 216468700 Bezel-lock Special Order $ 35.28

9 216529700 Panel-inner Door Special Order $ 287.76

11 216362200 Panel-outer Door, White Appelez-nous -
18 216714100 Handle-door Appelez-nous -
25 216022800 Screw, Washer Head, 8, 18 X 1/2 Appelez-nous -
38 216322800 Trim-door Appelez-nous -
64 216403800 Plug-button, Vent Appelez-nous -
65 216423500 Screw-retainer Appelez-nous -
67 216423000 Retainer-lock Appelez-nous -
93 216858001 Screw   (Replaces: 5303161215) In-Stock Immediately $ 10.85

14B 5303311368 Washer, Flat Appelez-nous -
22A 216335400 Bearing-hinge Special Order $ 67.73

93A 5303302760 Screw Special Order $ 8.72


    View Diagram in Separate Window     Print Icon   Print Part List

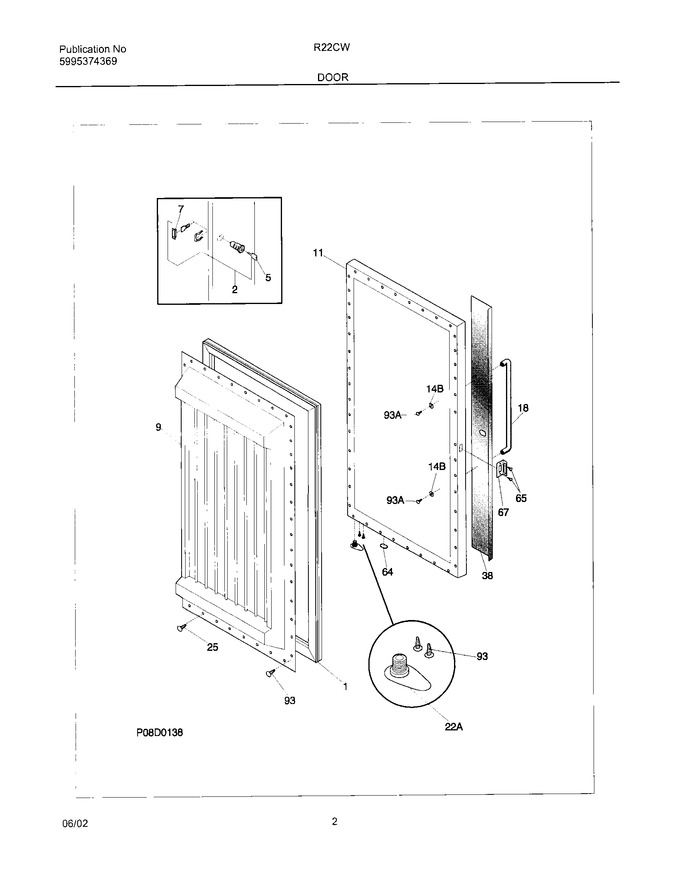

Diagram for R22CW10
