Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 69403-1 Tray, Styrofoam Mullion Appelez-nous -
2 69414-2 Seal, Mullion Tray Appelez-nous -
3 69106-2 Motor, Evaporator Fan Special Order $ 95.45

3 406062-1 Screw Appelez-nous -
4 64856-1 Bracket, Fan Motor Appelez-nous -
5 W11233072 Screw   (Replaces: 400015-36) In-Stock Immediately $ 12.62

6 69107-1 Blade, Evaporator Fan Appelez-nous -
7 420092-900 Washer, Spring Appelez-nous -
8 60608-2 Orifice, Fan Blade Appelez-nous -
9 68592-3 Tunnel, Air Appelez-nous -
10 W11233072 Screw   (Replaces: 400015-31) In-Stock Immediately $ 12.62

11 66403-2 Cover, Evaporator Appelez-nous -
12 69397-1 Bottom, Frz. Appelez-nous -
13 66325-10 Seal, Frost Chest Appelez-nous -
14 69562-2 Seal, Mullion Tray (front) Appelez-nous -
15 66325-34 Seal, Air Tunnel----na Appelez-nous -
16 69413-2 Magnet Appelez-nous -
17 66480-5 Cover, Plenum Appelez-nous -
18 WP841180A Tray, Ice   (Replaces: 59281-2) In-Stock Immediately $ 41.00


    View Diagram in Separate Window     Print Icon   Print Part List

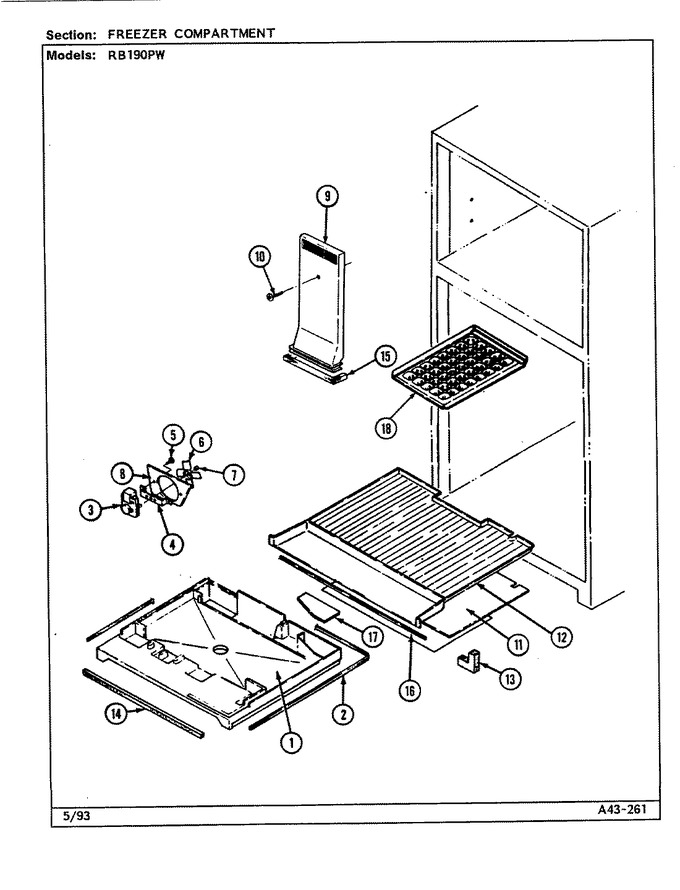

Diagram for RB190PW (BOM: DG53A)
