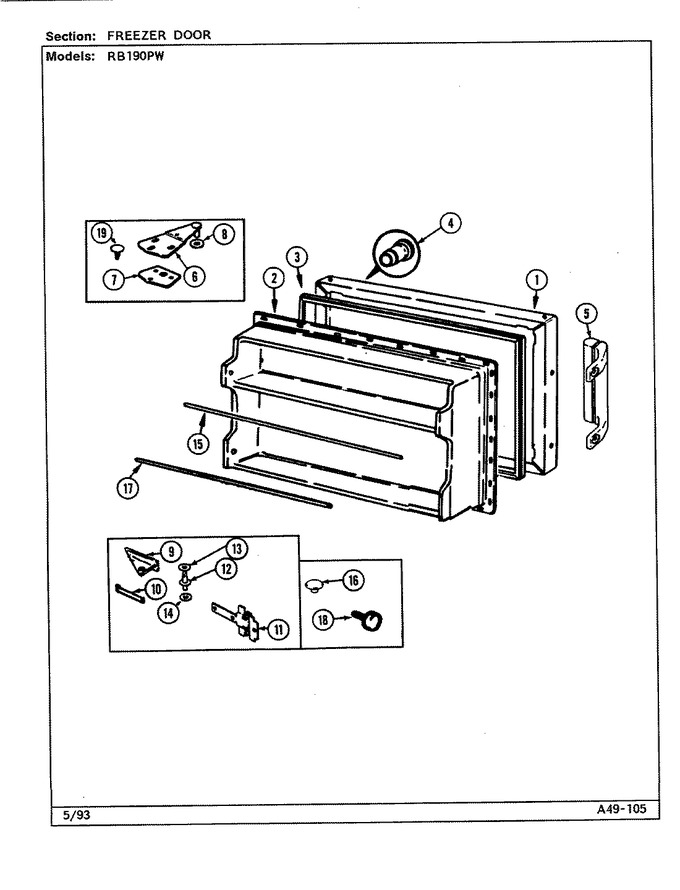

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-13-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	69470-2		Liner, Frz. Door		Appelez-nous	-
3	70025-5		Gasket, Frz. Door (wht)				$ 142.50
4	29356-1		Retainer, Nameplate		Appelez-nous	-
5	69922-1		Plug Button, Handle (wht)		Appelez-nous	-
5	69168-4		Handle, Door (wht)				$ 69.03
6	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
6	53709-20		Hinge, Upper		Appelez-nous	-
7	65031-1		Shim, Upper Hinge		Appelez-nous	-
8	54233-2		Washer		Appelez-nous	-
9	69514-2		Hinge, Center		Appelez-nous	-
9	65275-62		Screw		Appelez-nous	-
10	69515-1		Shim, Center Hinge		Appelez-nous	-
11	69419-1		Tapping Plate, Center Hinge		Appelez-nous	-
12	69517-1		Pin, Center Hinge		Appelez-nous	-
13	67483-6		Washer		Appelez-nous	-
14	54233-7		Washer		Appelez-nous	-
15	53605-31		Trim, Door Shelf (25``)		Appelez-nous	-
16	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
17	69480-2		Plug Button, Handle Hole (wht)		Appelez-nous	-
17	53605-34		Trim, Door Shelf (25 1/4``)		Appelez-nous	-
18	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
