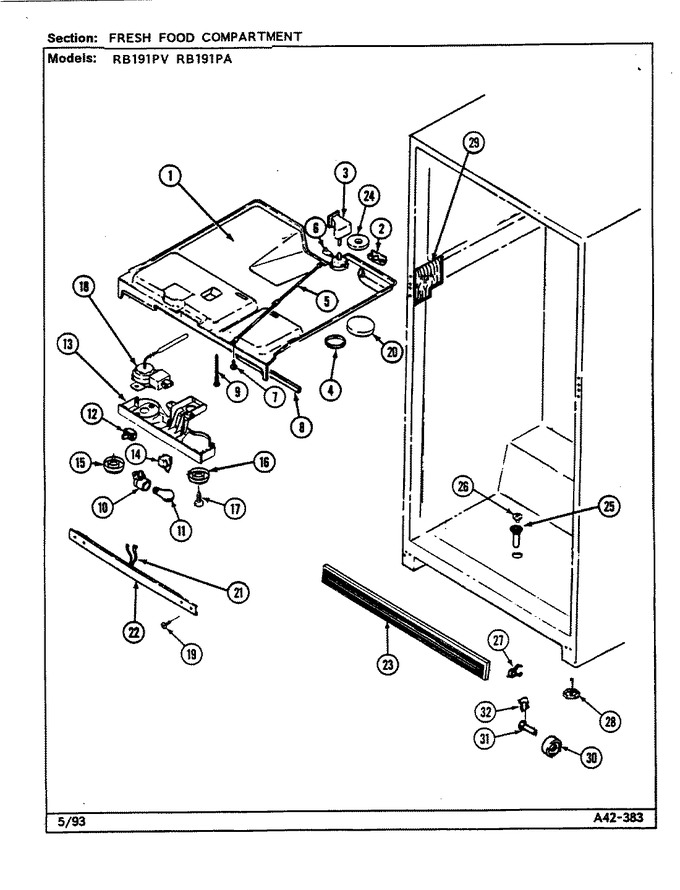

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69409-1		Top, F.f. Compartment		Appelez-nous	-
2	69623-1		Deflector, Air		Appelez-nous	-
3	69811-2		Orifice Assy., Damper		Appelez-nous	-
4	69037-1		Disc, Crank Cover		Appelez-nous	-
5	69418-3		Rod, Frz. Control		Appelez-nous	-
6	67636-1		Crank, Frz. Control		Appelez-nous	-
7	420005-1		Washer, Control Rod		Appelez-nous	-
7	WP59002061		Screw   (Replaces: 65275-13)				$ 6.98
8	69413-2		Magnet		Appelez-nous	-
9	65275-78		Screw		Appelez-nous	-
10	68974-3		Receptacle, Bulb		Appelez-nous	-
11	69752-1		Foil (above Light Bulb)		Appelez-nous	-
11	W11679940		Bulb, Light   (Replaces: 68123-1)			Immediately	$ 10.17
12	69283-1		Switch, Heater		Appelez-nous	-
13	69421-5		Cover, Temperature Control		Appelez-nous	-
13	405016-35		Screw		Appelez-nous	-
14	W11384469		Switch, Light   (Replaces: 66987-1)			Immediately	$ 33.51
15	69417-9		Knob, Temperature Control		Appelez-nous	-
16	WP61006073		Knob, Freezer Control   (Replaces: 69417-10)				$ 30.53
17	65275-38		Screw		Appelez-nous	-
18	406013-1		Screw		Appelez-nous	-
18	WP68601-6		Control, Temperature   (Replaces: 68601-7)			Immediately	$ 233.80
19	65275-54		Screw		Appelez-nous	-
20	69037-1		Disc, Crank Cover		Appelez-nous	-
21	69617-2		Heater, Divider Channel		Appelez-nous	-
21	70117-2		Wire Harness, Mullion		Appelez-nous	-
22	69420-2-WW		Channel, Mullion Divider (wht)		Appelez-nous	-
23	70128-2		Kickplate Assy. W/clips (blk)		Appelez-nous	-
23	70128-6		Kickplate Assy. W/clips (wht)		Appelez-nous	-
24	68989-1		Seal, Top Tower		Appelez-nous	-
25	54531-7		Tube, Drain		Appelez-nous	-
26	65039-1		Cap, Drain Tube		Appelez-nous	-
27	69940-1		Clip, Kickplate		Appelez-nous	-
28	W11117769		Leg, Leveling   (Replaces: 68664-1)			Immediately	$ 16.61
29	69416-1		Seal, Food Liner (lt)		Appelez-nous	-
29	69416-2		Seal, Food Liner (rt)		Appelez-nous	-
30	69812-1		Wheel		Appelez-nous	-
31	29835-2		Pin, Wheel		Appelez-nous	-
32	60216-1		Clip		Appelez-nous	-
