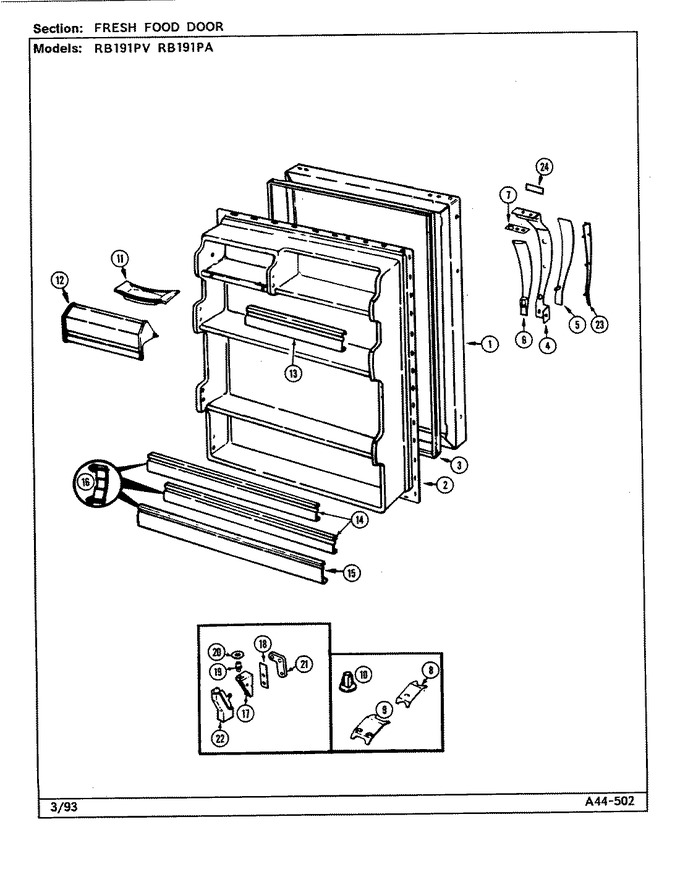

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-2-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	69454-1		Liner, F.f. Door		Appelez-nous	-
3	70025-6		Gasket, F.f. Door (wht)				$ 155.30
4	69300-4		Handle, Door----na		Appelez-nous	-
4	65275-57		Screw		Appelez-nous	-
5	68016-6		Handle Insert, Front		Appelez-nous	-
6	65275-53		Screw		Appelez-nous	-
6	60445-4		Insert, Handle (back)		Appelez-nous	-
7	69301-1		Shim, Handle		Appelez-nous	-
8	56209-3		Clip, Stop Screw		Appelez-nous	-
9	60123-2		Clip, Stop Screw		Appelez-nous	-
10	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
10	55782-6		Plug Button (almond)		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	69058-23		Door, Dairy		Appelez-nous	-
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-361)				$ 129.55
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-364)				$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-360)				$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-336)				$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
17	65275-51		Screw, Lower Hinge		Appelez-nous	-
17	69516-2		Hinge, Lower (blk)		Appelez-nous	-
18	69031-1		Shim		Appelez-nous	-
19	68977-1		Pin, Hinge		Appelez-nous	-
20	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
21	65275-59		Screw		Appelez-nous	-
21	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
22	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
23	68017-5		Insert, Vinyl Clad		Appelez-nous	-
24	69511-1		Tapping Plate, Lower Hinge		Appelez-nous	-
24	60603-25		Insert, Nameplate		Appelez-nous	-
