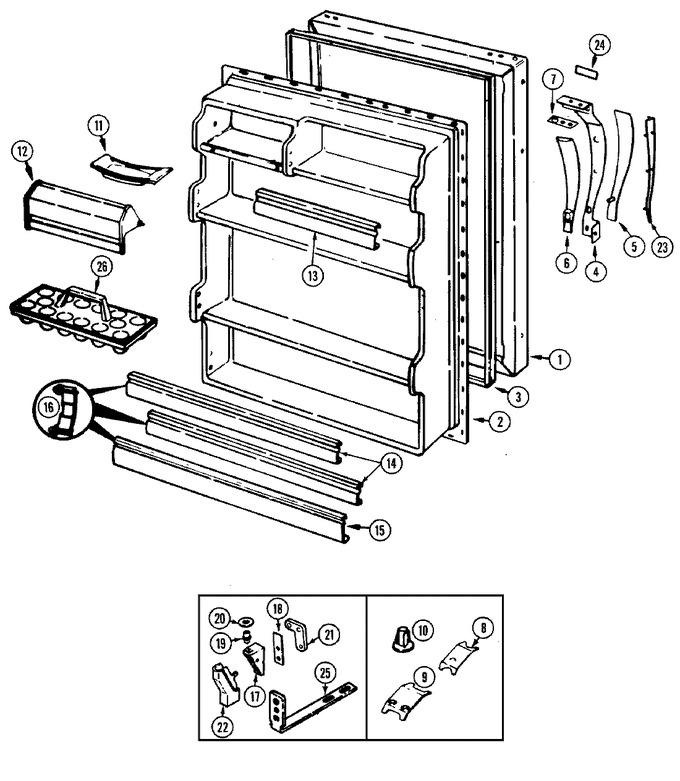

RB192PA (BOM: DE72A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	72349-2-AM	Panel, F.f. Door (alm)	10	Appelez-nous	-
2	69454-1	Liner, F.f. Door	10	Appelez-nous	-
2	65275-5	Screw	10	Appelez-nous	-
3	70025-6	Gasket, F.f. Door (wht)	10			$ 155.30
4	69300-4	Handle, Door----na	10	Appelez-nous	-
4	69300-2	Handle, Door	11	Appelez-nous	-
4	65275-57	Screw	10	Appelez-nous	-
5	68959-2	Insert	11	Appelez-nous	-
5	68016-6	Handle Insert, Front	10	Appelez-nous	-
6	65275-53	Screw	10	Appelez-nous	-
6	60445-4	Insert, Handle (back)	10	Appelez-nous	-
7	69301-1	Shim, Handle	10	Appelez-nous	-
8	56209-3	Clip, Stop Screw	10	Appelez-nous	-
9	60123-2	Clip, Stop Screw	10	Appelez-nous	-
10	55782-6	Plug Button (almond)	10	Appelez-nous	-
10	55782-10	Plug Button, Hdle & Door Stop	10	Appelez-nous	-
11	29936-2	Tray, Butter	10	Appelez-nous	-
12	69058-23	Door, Dairy	10	Appelez-nous	-
13	WP61003045	Trim, Door Shelf (Replaces: 65151-361)	10			$ 129.55
14	WP61003045	Trim, Door Shelf (Replaces: 65151-364)	10			$ 129.55
15	WP61003045	Trim, Door Shelf (Replaces: 65151-360)	10			$ 129.55
15	WP61003045	Trim, Door Shelf (Replaces: 65151-336)	10			$ 129.55
16	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)	10			$ 9.39
17	68975-2	Hinge, Lower	10	Appelez-nous	-
17	65275-51	Screw, Lower Hinge	10	Appelez-nous	-
18	69031-1	Shim	10	Appelez-nous	-
19	68977-1	Pin, Hinge	10	Appelez-nous	-
20	67483-3	Washer, Lower Hinge (Replaces: 67483-2)	10		Immediately	$ 45.86
21	65275-59	Screw	10	Appelez-nous	-
21	67874-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
22	68978-1	Cover, Lower Hinge (blk)	10	Appelez-nous	-
23	68017-3	Insert, Vinyl Clad	10	Appelez-nous	-
24	60603-25	Insert, Nameplate	10	Appelez-nous	-
24	68987-1	Stop, Door	10	Appelez-nous	-
25	65275-48	Screw	10	Appelez-nous	-
25	69511-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
26	60066-1	Tray, Egg	10	Appelez-nous	-
