SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit

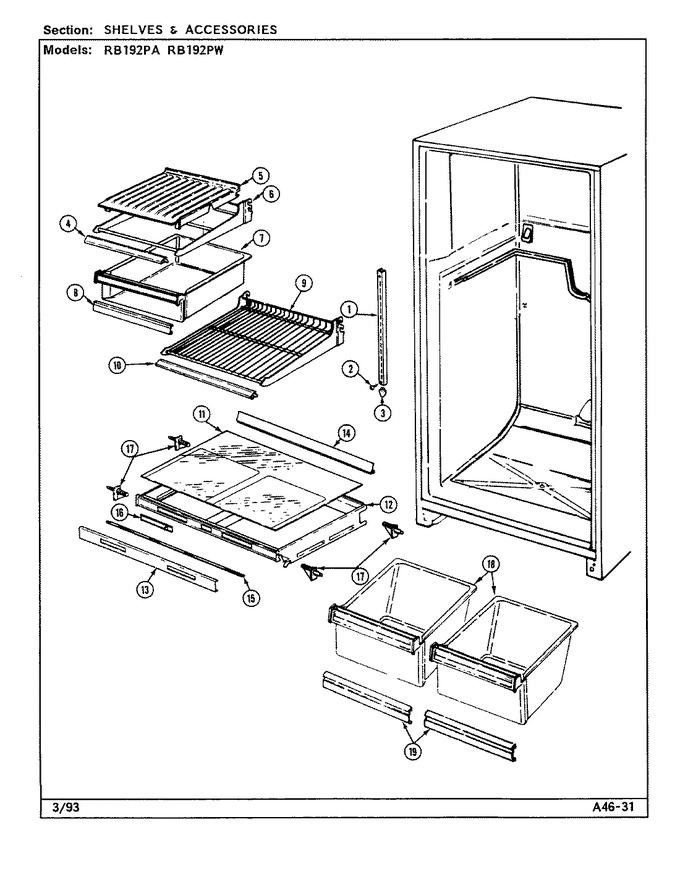

06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-7		Rail, Shelf Support (lt)	10	Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)	10	Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)	10	Appelez-nous	-
2	400037-28		Screw	10	Appelez-nous	-
3	60340-1		End Cap, Center Rail	10	Appelez-nous	-
4	60414-62		Trim	10	Appelez-nous	-
5	60075-7		Cover, Meat Pan	10	Appelez-nous	-
6	60416-13		Shelf, Meat	10	Appelez-nous	-
7	66516-6		Pan, Meat	10	Appelez-nous	-
8	60132-121		Trim, Crisper	10	Appelez-nous	-
9	60417-19		Shelf, Split	10	Appelez-nous	-
10	60414-62		Trim	10	Appelez-nous	-
11	68743-16		Glass, Shelf	10	Appelez-nous	-
12	69057-1		Shelf, Crisper	10	Appelez-nous	-
13	68744-12		Trim, Shelf	10	Appelez-nous	-
14	68798-1		Trim, Crisper Shelf (rear)	10	Appelez-nous	-
15	68797-1		Seal	10	Appelez-nous	-
16	68742-1		Slide, Control	10	Appelez-nous	-
17	68836-1		Stud, Crisper Support	10	Appelez-nous	-
18	68222-550		Pan, Crisper	10	Appelez-nous	-
18	68222-551		Pan, Crisper	10	Appelez-nous	-
19	60132-130		Trim, Crisper	10	Appelez-nous	-
