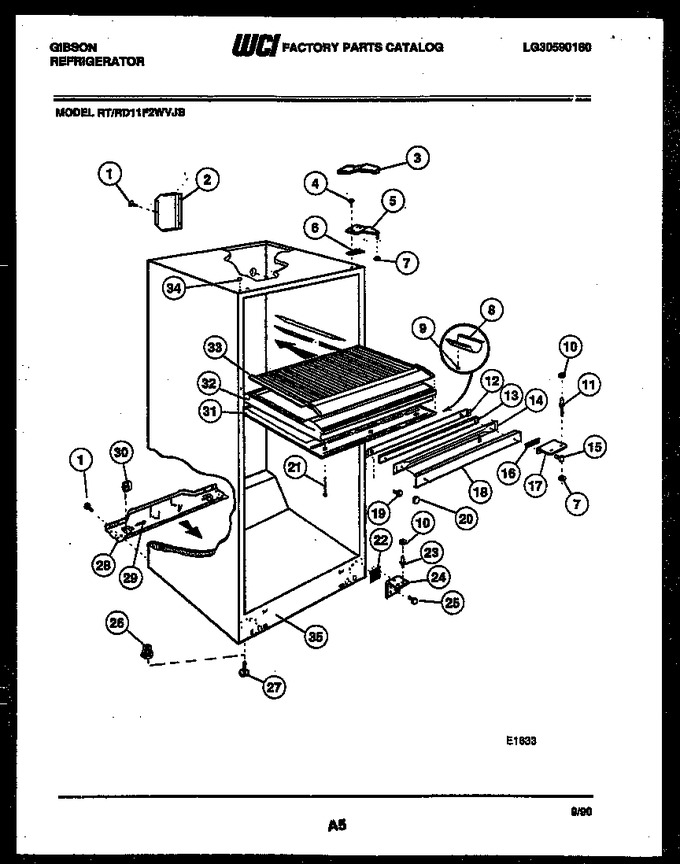

02 - Door Parts
04 - Cabinet Parts
05 - System And Automatic Defrost Parts
06 - Shelves And Supports
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G185075 | Screw (9) |
|
- | |||||
| 2 | 08011184 | Cover |
|
- | |||||
| 3 | 3001695 | Cover-hinge-almd |
|
- | |||||
| 3 | 3001696 | Cover-hinge-wheat |
|
- | |||||
| 3 | 3001694 | Cover-hinge-white |
|
- | |||||
| 4 | 5303211326 | Screw-hinge (2) |
|
- | |||||
| 5 | 08011172 | Hinge Brkt-top |
|
- | |||||
| 6 | 08011177 | Shim-top Hinge |
|
- | |||||
| 7 | 08011152 | Washer-hinge (2) |
|
- | |||||
| 8 | 08011200 | Shield-light |
|
- | |||||
| 9 | G185085 | Screw-mtg (2) |
|
- | |||||
| 10 | G185082 | Washer-hinge (2) |
|
- | |||||
| 11 | 5308000184 | Pin, Ctr Hinge |
|
$ 8.87 | |||||
| 12 | 08011211 | Support-mullion Mtg |
|
- | |||||
| 13 | 08011192 | Insulation |
|
- | |||||
| 14 | 3204929 | Heater-mullion |
|
- | |||||
| 15 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 16 | G185091 | Shim-ctr Hinge |
|
- | |||||
| 17 | 08011173 | Hinge-brkt-ctr |
|
- | |||||
| 18 | G185150-09 | Mullion - Wheat |
|
- | |||||
| 18 | 08011212 | Mullion-white |
|
- | |||||
| 18 | 08011213 | Mullion-almd |
|
- | |||||
| 19 | 3205085 | Screw-support (2) |
|
- | |||||
| 20 | 3001698 | Cover-almd (2) |
|
- | |||||
| 20 | 3001699 | Cover-wheat (2) |
|
- | |||||
| 20 | 3001697 | Cover-white (2) |
|
- | |||||
| 21 | 08011124 | Screw-top Mtg (3) |
|
- | |||||
| 22 | 08011167 | Shim-btm Hinge |
|
- | |||||
| 23 | 5303001321 | Pin-btm Hinge |
|
$ 17.25 | |||||
| 24 | 08011174 | Hinge Brkt-btm |
|
- | |||||
| 25 | 08011142 | Screw-sems (3) |
|
- | |||||
| 26 | 3001700 | Tee Nut (2) |
|
- | |||||
| 27 | 08011117 | Screw-leving (2) |
|
- | |||||
| 28 | 08012871 | Base-compressor |
|
- | |||||
| 29 | 08011131 | Pin-roller (2) |
|
- | |||||
| 30 | 08011155 | Roller-rear (2) |
|
$ 6.88 | |||||
| 31 | 08011195 | Top-refr |
|
- | |||||
| 32 | 08011194 | Divider |
|
- | |||||
| 33 | 08011193 | Bottom-frzr |
|
- | |||||
| 34 | 5303211323 | Plug-btn-white (2) |
|
- | |||||
| 34 | 5303211325 | Plug-btn-wheat (2) |
|
- | |||||
| 34 | 5303211324 | Plug-btn-almd (2) |
|
- | |||||
| 35 | 3204940 | Plug-almd (3) |
|
- | |||||
| 35 | 3204939 | Plug-white (3) |
|
- | |||||
| 35 | 3204941 | Plug-wheat (3) |
|
- |
