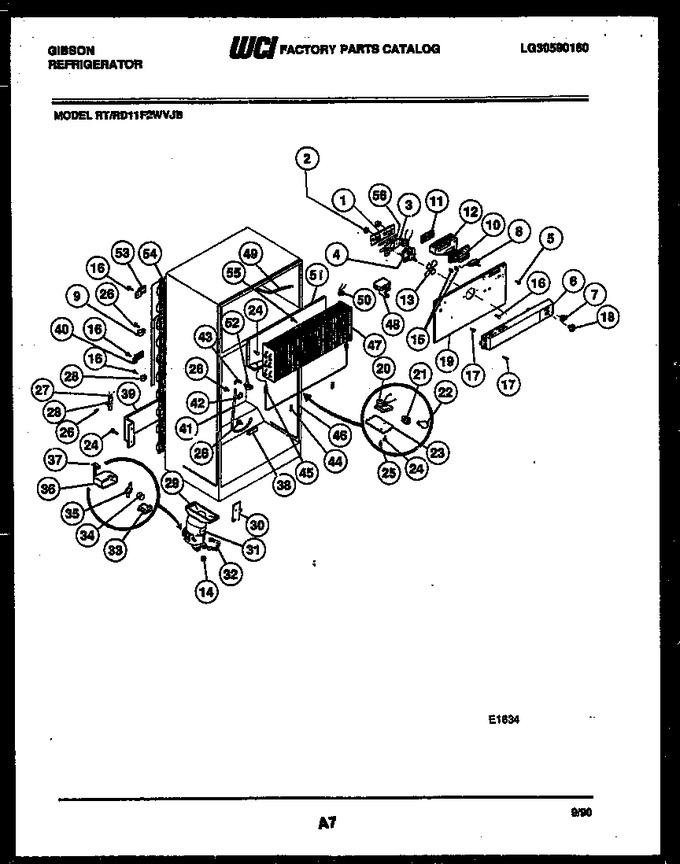

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211318 | Rear Support Motor |
|
- | |||||
| 2 | 08011129 | Nut-keps (2) |
|
- | |||||
| 3 | 5303211320 | Bracket |
|
- | |||||
| 4 | 5308011165 | Motor-fan |
|
- | |||||
| 5 | 08011121 | Screw-brkt (2) |
|
- | |||||
| 6 | 5303211335 | Cover-fan |
|
- | |||||
| 7 | 3204943 | Switch-pwr Saver |
|
- | |||||
| 8 | 5303211156 | Control-temp |
|
$ 312.64 | |||||
| 9 | 08011625 | Clamp (2) |
|
- | |||||
| 10 | 08011203 | Gasket |
|
- | |||||
| 11 | 08011153 | Gasket |
|
- | |||||
| 12 | 08011220 | Spacer-rs |
|
- | |||||
| 13 | 5308011156 | Fan Blade |
|
- | |||||
| 14 | 5308008778 | Grommet (4) |
|
- | |||||
| 15 | 0801134 | Sprt-fan Cover (2) |
|
- | |||||
| 16 | G185156 | Screw-mtg |
|
- | |||||
| 17 | 08011122 | Screw-mtg (4) |
|
- | |||||
| 18 | 5303211327 | Knob-control |
|
- | |||||
| 19 | 5303211321 | Cover-coil |
|
- | |||||
| 20 | 5308000035 | Timer - Defrost |
|
- | |||||
| 21 | 08011171 | Socket-light |
|
- | |||||
| 22 | 3201908 | Bulb-light |
|
- | |||||
| 23 | 08011178 | Cover-timer |
|
- | |||||
| 24 | G185085 | Screw-cover Mtg (6) |
|
- | |||||
| 25 | 08011119 | Screw (2) |
|
- | |||||
| 26 | G185075 | Screw-mtg |
|
- | |||||
| 27 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 28 | 08011144 | Clamp |
|
- | |||||
| 29 | 5303211329 | Drain Pan |
|
- | |||||
| 30 | 5303211336 | Retainer (2) |
|
- | |||||
| 31 | 5303211330 | Compressor |
|
- | |||||
| 32 | 5303211322 | Clip (4) |
|
- | |||||
| 33 | 3205383 | Relay |
|
- | |||||
| 34 | 5303211328 | Overload |
|
- | |||||
| 35 | 3204976 | Retainer |
|
- | |||||
| 36 | 3204977 | Cover |
|
- | |||||
| 37 | 08007439 | Bale Strap |
|
- | |||||
| 38 | 08011157 | Trap Bracket |
|
- | |||||
| 39 | 08013300 | Cover |
|
- | |||||
| 40 | 08011160 | Brkt-cond Lwr (2) |
|
- | |||||
| 41 | 08011149 | Drain Tube |
|
- | |||||
| 42 | 5303211317 | Retainer |
|
- | |||||
| 43 | 3001706 | Elbow |
|
- | |||||
| 44 | 3205110 | Clip |
|
- | |||||
| 45 | 5308011209 | Heater-defrost |
|
- | |||||
| 46 | 08011624 | Heater-kit |
|
- | |||||
| 47 | 3203857 | Evaporator |
|
- | |||||
| 48 | 08011205 | Spacer-ls |
|
- | |||||
| 49 | 3204684 | Heat Exchanger |
|
- | |||||
| 50 | 3204985 | Thermostat-defr |
|
- | |||||
| 51 | 08011216 | Trough-drain |
|
- | |||||
| 52 | 08011170 | Spout-drain |
|
- | |||||
| 53 | 08011161 | Brkt-cond Upr (2) |
|
- | |||||
| 54 | 3001709 | Condenser |
|
- | |||||
| 55 | 08011136 | Support-coil Cvr (2) |
|
- | |||||
| 56 | 5303211319 | Tape |
|
- | |||||
| 19A | 5303203044 | Plug-short Test Hole (non-illustrated) |
|
- | |||||
| 55A | 3204989 | Support-coil Cvr (1) (non-illustrated) |
|
- | |||||
| 55B | 08011215 | Service Cord (non-illustrated) |
|
- |
