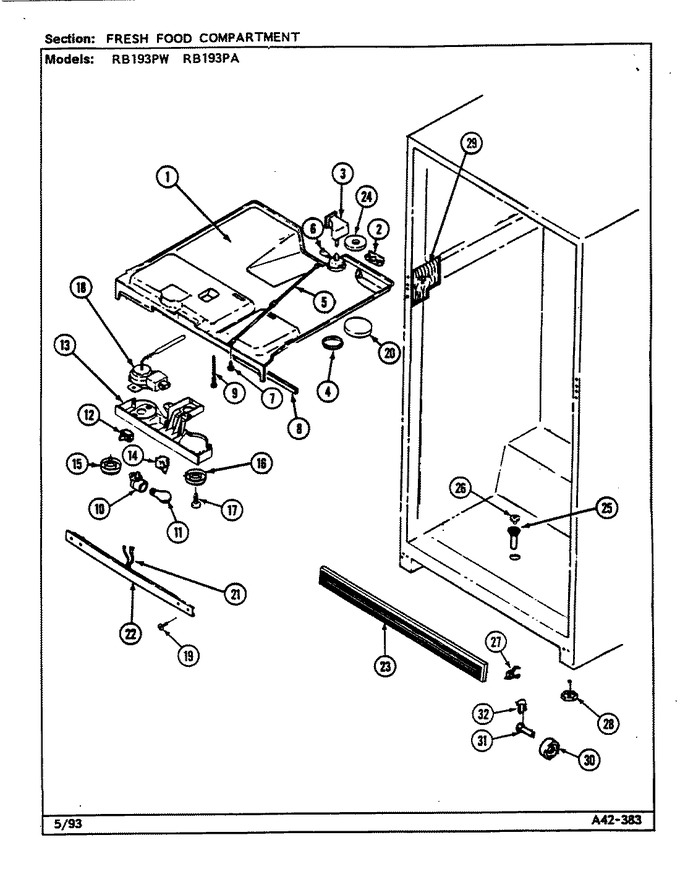

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69409-1 | Top, F.f. Compartment |
|
- | |||||
| 2 | 69623-1 | Deflector, Air |
|
- | |||||
| 3 | 69811-2 | Orifice Assy., Damper |
|
- | |||||
| 4 | 67493-1 | Cover, Crank |
|
- | |||||
| 5 | 69418-3 | Rod, Frz. Control |
|
- | |||||
| 6 | 67636-1 | Crank, Frz. Control |
|
- | |||||
| 7 | WP59002061 | Screw (Replaces: 65275-13) |
|
$ 6.98 | |||||
| 7 | 420005-1 | Washer, Control Rod |
|
- | |||||
| 8 | 69413-2 | Magnet |
|
- | |||||
| 9 | 65275-78 | Screw |
|
- | |||||
| 10 | 68974-3 | Receptacle, Bulb |
|
- | |||||
| 11 | 69752-1 | Foil (above Light Bulb) |
|
- | |||||
| 11 | W11679940 | Bulb, Light (Replaces: 68123-1) |
|
Immediately | $ 10.17 | ||||
| 12 | 69283-1 | Switch, Heater |
|
- | |||||
| 13 | 69421-4 | Cover, Temp. Cont. |
|
- | |||||
| 13 | 405016-35 | Screw |
|
- | |||||
| 14 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 15 | 69417-5 | Knob, Control |
|
- | |||||
| 16 | WP61006073 | Knob, Control (Replaces: 69417-6) |
|
$ 30.53 | |||||
| 17 | 65275-38 | Screw |
|
- | |||||
| 18 | 406013-1 | Screw |
|
- | |||||
| 18 | WP68601-6 | Control, Temperature (Replaces: 68601-7) |
|
Immediately | $ 233.80 | ||||
| 19 | 65275-54 | Screw |
|
- | |||||
| 20 | 69037-1 | Disc, Crank Cover |
|
- | |||||
| 21 | 70117-2 | Wire Harness, Mullion |
|
- | |||||
| 21 | 69617-2 | Heater, Divider Channel |
|
- | |||||
| 22 | 69420-2-WW | Channel, Mullion Divider (wht) |
|
- | |||||
| 23 | 70128-2 | Kickplate Assy. W/clips (blk) |
|
- | |||||
| 24 | 68989-1 | Seal, Top Tower |
|
- | |||||
| 25 | 54531-7 | Tube, Drain |
|
- | |||||
| 26 | 65039-1 | Cap, Drain Tube |
|
- | |||||
| 27 | 69940-1 | Clip, Kickplate |
|
- | |||||
| 28 | W11117769 | Leg, Leveling (Replaces: 68664-1) |
|
Immediately | $ 16.61 | ||||
| 29 | 69416-2 | Seal, Food Liner (rt) |
|
- | |||||
| 29 | 69416-1 | Seal, Food Liner (lt) |
|
- | |||||
| 30 | 69812-1 | Wheel |
|
- | |||||
| 31 | 29835-2 | Pin, Wheel |
|
- | |||||
| 32 | 60216-1 | Clip |
|
- |
