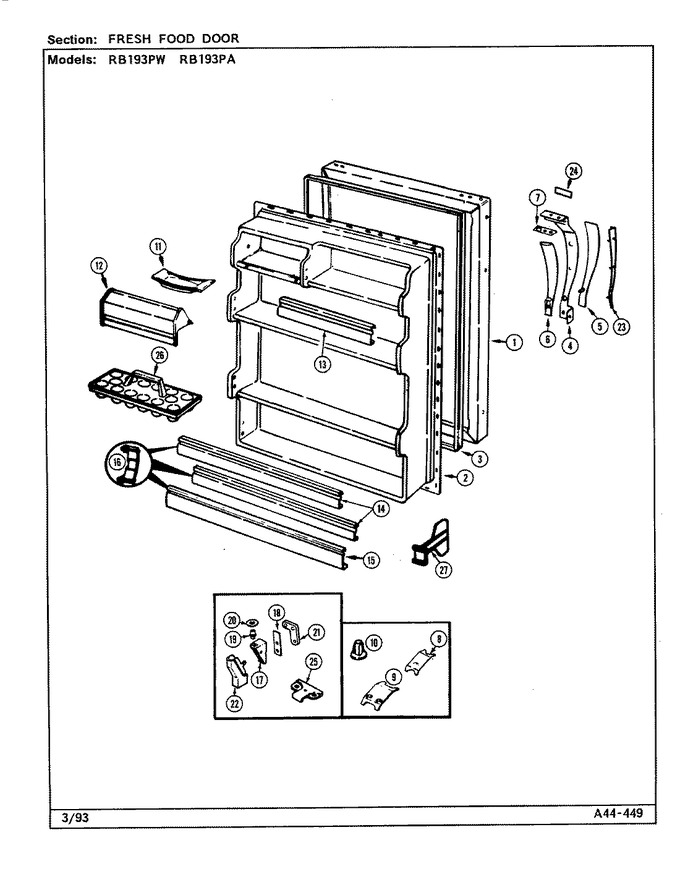

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72349-2-AM | Panel, F.f. Door (alm) |
|
- | |||||
| 2 | 69454-1 | Liner, F.f. Door |
|
- | |||||
| 2 | 65275-5 | Screw |
|
- | |||||
| 3 | 70025-6 | Gasket, F.f. Door (wht) |
|
$ 155.30 | |||||
| 4 | 65275-57 | Screw |
|
- | |||||
| 4 | 69300-4 | Handle, Door----na |
|
- | |||||
| 5 | 68016-6 | Handle Insert, Front |
|
- | |||||
| 6 | 65275-53 | Screw |
|
- | |||||
| 6 | 60445-4 | Insert, Handle (back) |
|
- | |||||
| 7 | 69301-1 | Shim, Handle |
|
- | |||||
| 8 | 56209-3 | Clip, Stop Screw |
|
- | |||||
| 9 | 60123-2 | Clip, Stop Screw |
|
- | |||||
| 10 | 55782-6 | Plug Button (almond) |
|
- | |||||
| 10 | 55782-10 | Plug Button, Hdle & Door Stop |
|
- | |||||
| 11 | 29936-2 | Tray, Butter |
|
- | |||||
| 12 | 69058-23 | Door, Dairy |
|
- | |||||
| 13 | WP61003045 | Trim, Door Shelf (Replaces: 65151-362) |
|
$ 129.55 | |||||
| 14 | WP61003045 | Trim, Door Shelf (Replaces: 65151-363) |
|
$ 129.55 | |||||
| 15 | WP61003045 | Trim, Door Shelf (Replaces: 68375-25) |
|
$ 129.55 | |||||
| 15 | WP61003045 | Trim, Fresh Food Shelf (Replaces: 68375-12) |
|
$ 129.55 | |||||
| 16 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 17 | 65275-51 | Screw, Lower Hinge |
|
- | |||||
| 17 | 68975-2 | Hinge, Lower |
|
- | |||||
| 18 | 69031-1 | Shim |
|
- | |||||
| 19 | 68977-1 | Pin, Hinge |
|
- | |||||
| 20 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) |
|
Immediately | $ 45.86 | ||||
| 21 | 65275-59 | Screw |
|
- | |||||
| 21 | 67874-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 22 | 68978-1 | Cover, Lower Hinge (blk) |
|
- | |||||
| 23 | 68017-3 | Insert, Vinyl Clad |
|
- | |||||
| 24 | 60603-25 | Insert, Nameplate |
|
- | |||||
| 25 | 65275-48 | Screw |
|
- | |||||
| 25 | 68987-1 | Stop, Door |
|
- | |||||
| 26 | 60066-1 | Tray, Egg |
|
- | |||||
| 27 | 69511-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 27 | 64097-11 | Organizer, Shelf |
|
- |
