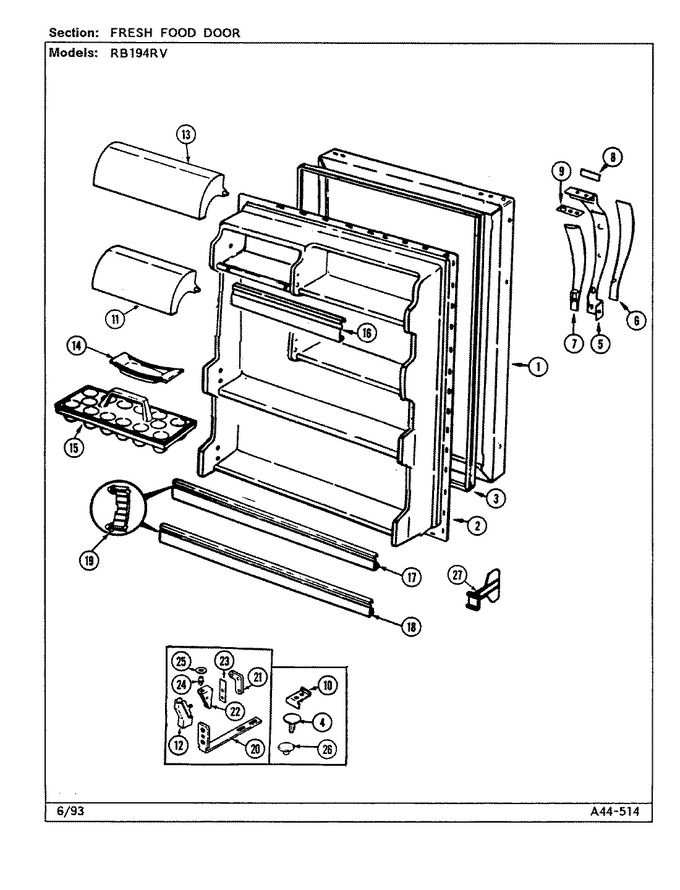

RB194RV (BOM: DG68A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	72349-1-WW	Panel, F.f. Door (wht)	Appelez-nous	-
2	69453-1	Liner, F.f. Door	Appelez-nous	-
2	65275-5	Screw	Appelez-nous	-
3	70025-6	Gasket, F.f. Door (wht)			$ 155.30
4	69480-2	Plug Button, Handle Hole (wht)	Appelez-nous	-
5	69300-4	Handle, Door----na	Appelez-nous	-
5	65275-57	Screw	Appelez-nous	-
6	68016-4	Insert	Appelez-nous	-
6	68017-5	Insert, Vinyl Clad	Appelez-nous	-
7	60445-3	Insert, Handle (back)	Appelez-nous	-
7	60453-44	Trim, F.f. Door (wht)	Appelez-nous	-
8	65275-53	Screw	Appelez-nous	-
8	60603-19	Insert, Nameplate	Appelez-nous	-
9	69301-1	Shim, Handle	Appelez-nous	-
10	69256-2	Stop, Door	Appelez-nous	-
10	65275-48	Screw	Appelez-nous	-
11	66184-365	Door, Dairy	Appelez-nous	-
12	68978-4	Cover, Lower Hinge (wht)	Appelez-nous	-
13	66184-366	Door, Dairy	Appelez-nous	-
14	29936-2	Tray, Butter	Appelez-nous	-
15	60066-1	Tray, Egg	Appelez-nous	-
16	WP61003045	Trim, Shelf (Replaces: 68832-92)			$ 129.55
17	WP61003045	Shelf Trim (Replaces: 68832-21)			$ 129.55
18	WP61003045	Trim, Shelf (Replaces: 68832-93)			$ 129.55
19	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)			$ 9.39
20	65275-66	Screw (no.10 X 1/2``)	Appelez-nous	-
20	414012-1	Screw	Appelez-nous	-
20	69511-1	Tapping Plate, Lower Hinge	Appelez-nous	-
21	67874-1	Tapping Plate, Lower Hinge	Appelez-nous	-
21	65275-59	Screw	Appelez-nous	-
22	69516-4	Hinge, Lower (zinc)	Appelez-nous	-
22	65275-51	Screw, Lower Hinge	Appelez-nous	-
23	69510-1	Shim, Lower Hinge	Appelez-nous	-
24	69845-1	Pin, Lower Hinge			$ 44.55
25	67483-3	Washer, Lower Hinge (Replaces: 67483-2)		Immediately	$ 45.86
26	67634-2	Plug Button, Hinge Cup (wht)	Appelez-nous	-
27	64097-11	Organizer, Shelf	Appelez-nous	-
27	60453-44	Trim, F.f. Door (wht)	Appelez-nous	-
