SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Freezer Compartment


03 - Freezer Door


04 - Fresh Food Compartment


05 - Fresh Food Door


06 - Optional Ice Maker Kit

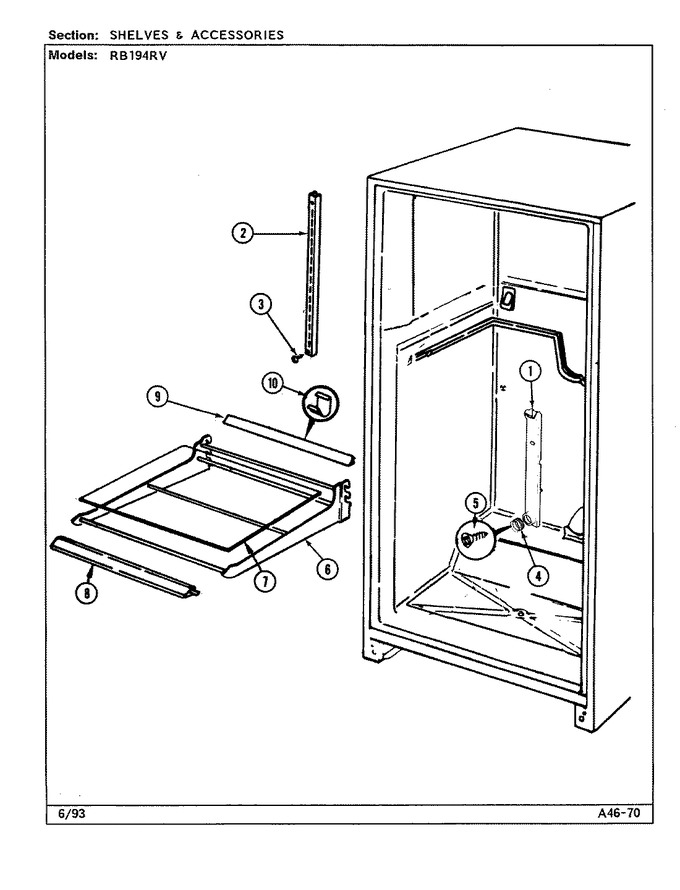

07 - Shelves & Accessories


08 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69578-1		Tunnel, Air		Appelez-nous	-
2	68238-2		Rail, Cantilever Shelf		Appelez-nous	-
2	68238-1		Rail, Cantilever Shelf		Appelez-nous	-
2	68238-3		Rail, Cantilever Shelf		Appelez-nous	-
3	400037-28		Screw		Appelez-nous	-
4	68282-1		Bellows, Air Tunnel		Appelez-nous	-
5	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
6	60570-36		Frame, Shelf		Appelez-nous	-
7	68139-15		Glass, Split Shelf		Appelez-nous	-
8	60524-6		Trim, Meat Shelf (front)		Appelez-nous	-
9	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
10	66333-1		Clip, Shelf Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
