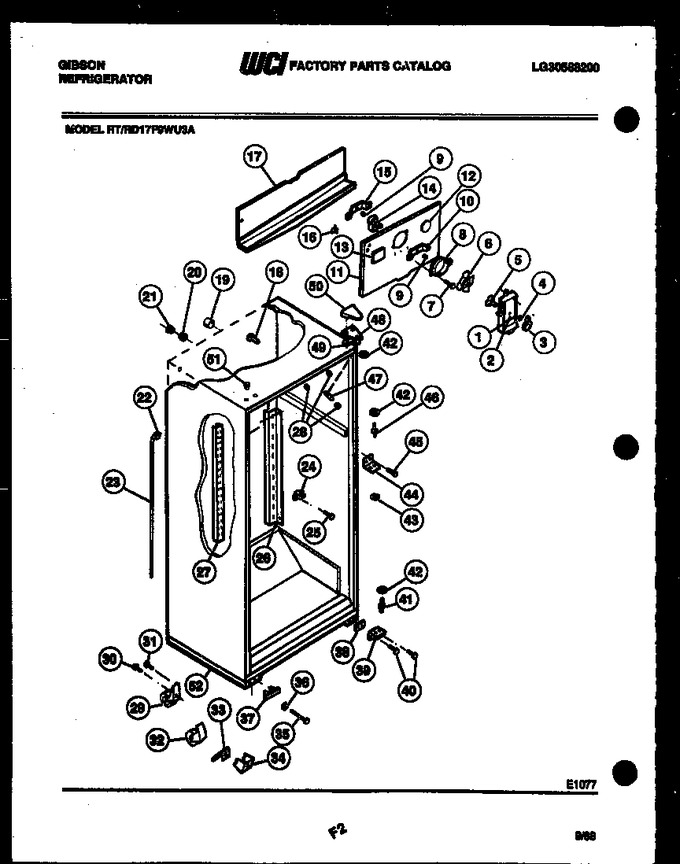

1	G163061-76		Cover, Fan		Appelez-nous	-
2	G186232		Label, Fan Cover		Appelez-nous	-
3	G168702		Knob-damper Control		Appelez-nous	-
4	G162662		Push-nut		Appelez-nous	-
5	G162661		Damper		Appelez-nous	-
6	G174705		Fan Blade		Appelez-nous	-
7	G162585		Screw		Appelez-nous	-
8	G167217		Orifice Ring		Appelez-nous	-
9	G157666		Bushing-fan Assy (2)		Appelez-nous	-
10	G185302		Bracket-front		Appelez-nous	-
11	G176797		Cover-evap Coil		Appelez-nous	-
12	3018768		Plug-short Test Hole		Appelez-nous	-
13	G162827-12		Plug-decorative		Appelez-nous	-
14	G158289		Motor-fan		Appelez-nous	-
15	G185303		Bracket-rear		Appelez-nous	-
16	G164571		Bracket, Connector		Appelez-nous	-
17	G490043		Drain Trough		Appelez-nous	-
18	G163669		Support-coil Cvr (2)		Appelez-nous	-
19	G85642		Tube, Rubber (2)		Appelez-nous	-
20	G174733		Ferrule, Inner		Appelez-nous	-
21	G174734		Ferrule Outer		Appelez-nous	-
22	G176853		Seal Ring-drain Tube		Appelez-nous	-
23	G184920-01		Drain Tube		Appelez-nous	-
24	G162179		Spout Drain Tube		Appelez-nous	-
25	G185279		Push Pin-spout (2)		Appelez-nous	-
26	G170695		Channel, Rs & Ls		Appelez-nous	-
27	G189341		Channel Center		Appelez-nous	-
28	G167565		Grommet-shelf-rs (4)		Appelez-nous	-
29	G183407		Roller, Rear (2)		Appelez-nous	-
30	G177025		Bolt 1/4-28 (2)		Appelez-nous	-
31	G187009		Screw 8-15 (2)		Appelez-nous	-
32	G177021		Roller-front (2)		Appelez-nous	-
33	G178494		Spring-roller Adj (2)		Appelez-nous	-
34	G177302		Support, Roller (2)		Appelez-nous	-
35	G177024		Screw-roller Adj (2)		Appelez-nous	-
36	G182799		Washer Nylon (2)		Appelez-nous	-
37	G166912		Plug-hinge Hole		Appelez-nous	-
38	G163203		Shim-bottom Hinge		Appelez-nous	-
39	G191474		Bracket-bottom Hinge		Appelez-nous	-
40	G181020		Screw-hinge Mtg (2)		Appelez-nous	-
41	G166505		Pin-bottom Hinge		Appelez-nous	-
42	G103903		Washer, Nylon				$ 3.10
43	G164355		Washer-5/16 Nylon		Appelez-nous	-
44	G163207		Bracket-center Hinge		Appelez-nous	-
45	G183103		Screw-hinge Mtg (2)		Appelez-nous	-
46	G142220		Pin		Appelez-nous	-
47	G179684-08		Corner Trim-avocado		Appelez-nous	-
47	G179684-09		Corner Trim-wheat		Appelez-nous	-
47	G179684-01		Corner Trim-white		Appelez-nous	-
47	G179684-11		Corner Trim-almond		Appelez-nous	-
47	G179684-10		Corner Trim-coffee		Appelez-nous	-
48	G183714		Hinge-top		Appelez-nous	-
49	G183861		Shim Top Hinge		Appelez-nous	-
50	G183558-10		Hinge Cover Coffee		Appelez-nous	-
50	G183558-09		Hinge Cover-wheat		Appelez-nous	-
50	G183558-08		Hinge Cover-avoc		Appelez-nous	-
50	G183558-01		Hinge Cover-white		Appelez-nous	-
50	G183558-11		Hinge Cover-almond		Appelez-nous	-
51	G174747-09		Plug-button, Wheat		Appelez-nous	-
51	G174747-10		Plug-button, Coffee		Appelez-nous	-
51	G174747-11		Button-plug, Almond		Appelez-nous	-
51	G174747-01		Button-plug-white		Appelez-nous	-
51	G174747-08		Button, Plug, Avocado		Appelez-nous	-
52	G490004-01		Cabinet Base		Appelez-nous	-
*81897	G187599		Plug-freezer Liner (5)		Appelez-nous	-
11A	G167542		Nut-u Type (2) (non-illustrated)		Appelez-nous	-
16A	G162585		Screw		Appelez-nous	-
1A	G187363		Screw		Appelez-nous	-
23A	G187009		Screw-tube Mtg (2) (non-illustrated)		Appelez-nous	-
26A	G166567		Screw, Channel (6) (non-illustrated)		Appelez-nous	-
27A	G187449		Screw-channel (3) (non-illustrated)		Appelez-nous	-
28A	G176993		Grommet-shelf Ls (4) (non-illustrated)		Appelez-nous	-
40A	G179797		Tapping Plate (2) (non-illustrated)		Appelez-nous	-
45A	G166847		Washer-steel (2) (non-illustrated)		Appelez-nous	-
48A	G167103		Screw-hinge Mtg (2) (non-illustrated)		Appelez-nous	-
