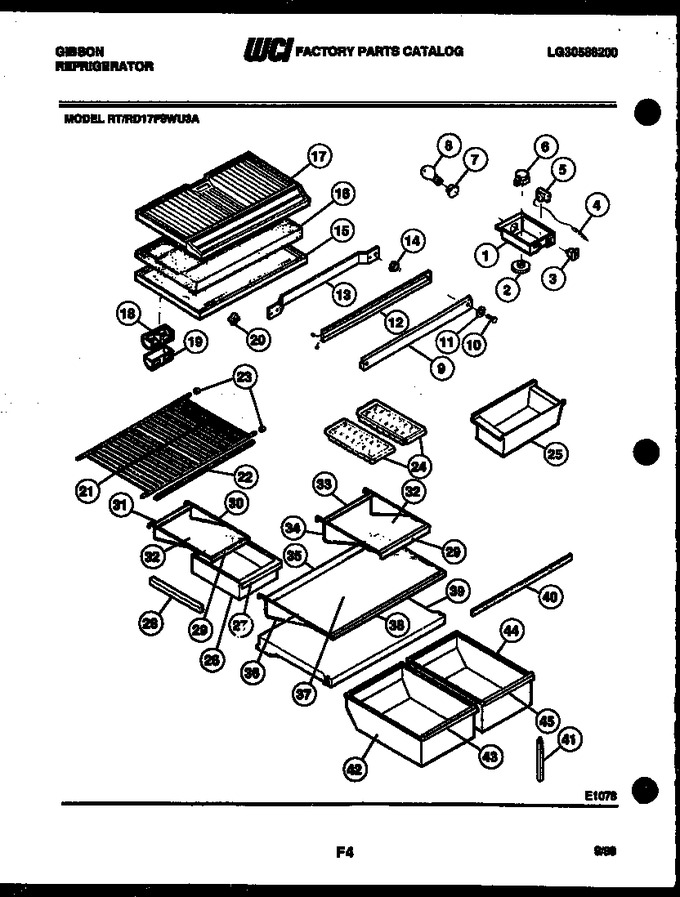

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G176722-03		Control Box		Appelez-nous	-
2	G490107-02		Knob-temp Control		Appelez-nous	-
3	G178402-02		Switch-energy Saver		Appelez-nous	-
4	G142176-11		Sleeve-plastic Tube		Appelez-nous	-
5	G162205-11		Control, Temperature		Appelez-nous	-
6	G187484		Timer-defrost		Appelez-nous	-
7	G168302		Light Socket		Appelez-nous	-
8	G25806		Light Bulb		Appelez-nous	-
9	G490086-10		Mullion, Coffee		Appelez-nous	-
9	G490086-01		Mullion, White		Appelez-nous	-
9	G490086-08		Mullion, Avocado		Appelez-nous	-
9	G490086-11		Mullion, Almond		Appelez-nous	-
9	G490086-09		Mullion, Wheat		Appelez-nous	-
10	G183103		Screw-mullion (4)		Appelez-nous	-
11	G166847		Washer-no. 10 Steel (2)		Appelez-nous	-
12	G177255		Heater, Mullion		Appelez-nous	-
13	G166709		Strap-mullion Mtg		Appelez-nous	-
14	G490082		Spacer, Mullion (2)		Appelez-nous	-
15	3016378		Top Panel-refr		Appelez-nous	-
16	G176774		Divider-styrofoam		Appelez-nous	-
17	G490022-01		Bottom Panel-frzr		Appelez-nous	-
18	G162675		Air Deflector		Appelez-nous	-
19	G162178		Cover, Deflector		Appelez-nous	-
20	G162672		Light Switch		Appelez-nous	-
21	G177059-10		Shelf, Freezer		Appelez-nous	-
22	G172410-09		Trim-frzr Shelf		Appelez-nous	-
23	G166495-01		End Cap (2)		Appelez-nous	-
24	G156376-13		Ice Tray (2)		Appelez-nous	-
25	G163022-03		Ice Container		Appelez-nous	-
26	G176918-12		Meat Pan		Appelez-nous	-
27	G177343-10		Trim - Meat Pan		Appelez-nous	-
28	G187215-03		Hanger, Pan Ls		Appelez-nous	-
29	G172410-18		Trim-shelf Front (3)		Appelez-nous	-
30	G187218-07		Frame-meat Pan Shelf		Appelez-nous	-
31	G172436-12		Trim - Shelf - Rear		Appelez-nous	-
32	G171654-55		Glass-half Shelf (3)		Appelez-nous	-
33	G172436-11		Trim-shelf Rear (2)		Appelez-nous	-
34	G171608-18		Frame-half Shelf (2)		Appelez-nous	-
35	G172436-17		Trim-shelf Rear		Appelez-nous	-
36	G171608-19		Frame-full Shelf		Appelez-nous	-
37	G171654-56		Glass-full Shelf		Appelez-nous	-
38	G172410-10		Trim-shelf Front		Appelez-nous	-
39	G490016-01		Cover-crisper Pan		Appelez-nous	-
40	G180108-04		Gasket-pan Cover		Appelez-nous	-
41	G166310-02		Support-pan Cover		Appelez-nous	-
42	G490015-49		Pan-fruit Ls		Appelez-nous	-
43	3201093		Trim-pan Ls		Appelez-nous	-
44	3201094		Pan-veg Rs		Appelez-nous	-
45	3201092		Trim-pan Rs		Appelez-nous	-
15A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
16A	G174818		Wiring Harness-divider (non-illustrated)		Appelez-nous	-
1A	G188379-02		Label-control Box (non-illustrated)		Appelez-nous	-
1B	G187363		Screw		Appelez-nous	-
28A	G187216-03		Hanger, Pan Rs (non-illustrated)		Appelez-nous	-
28B	G184823		Screw-hanger Mtg (2) (non-illustrated)		Appelez-nous	-
5A	G107080		Screw		Appelez-nous	-
6A	G105289		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
