SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

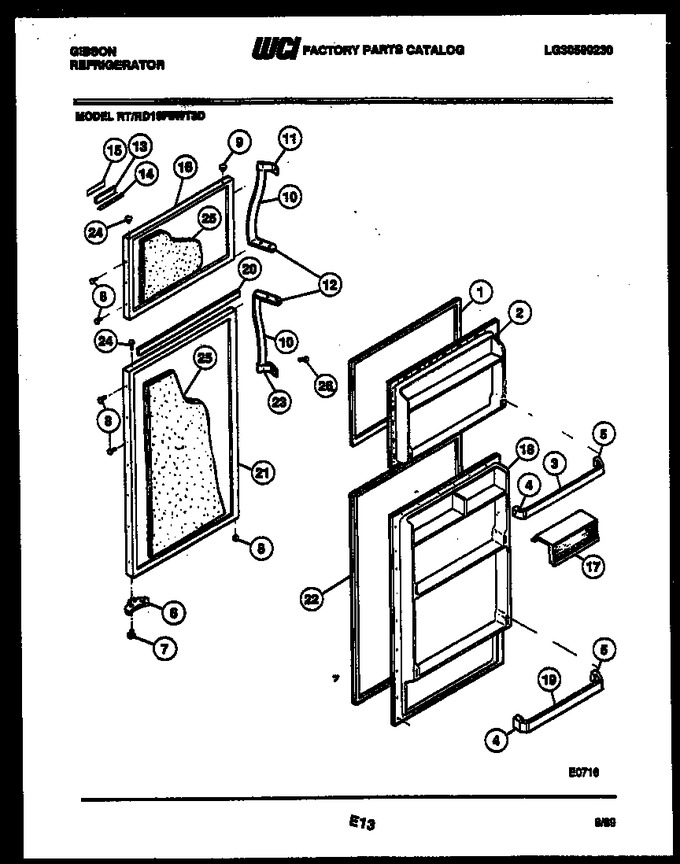

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001486 | Gasket-freezer |
|
- | |||||
| 2 | 5318490301 | Panel-inner |
|
- | |||||
| 3 | G162887-22 | Rack-door (4) |
|
- | |||||
| 4 | 5315288704 | Support Lh (4) |
|
- | |||||
| 5 | 5315288804 | Support Rh (4) |
|
- | |||||
| 6 | 5308000255 | Door Stop (2) |
|
$ 42.20 | |||||
| 7 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 8 | 5308000181 | Button-almond |
|
- | |||||
| 8 | 5308000180 | Button-wheat |
|
- | |||||
| 8 | 5308000178 | Button-coffee |
|
- | |||||
| 8 | 5308000179 | Button-avocado |
|
- | |||||
| 8 | 240494001 | Button-white (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 9 | 5308000175 | Button-avocado |
|
- | |||||
| 9 | 5303001308 | Button-almond |
|
- | |||||
| 9 | 5303001657 | Button-coffee |
|
- | |||||
| 9 | 5308000176 | Button-wheat |
|
- | |||||
| 9 | 5308000134 | Button-white |
|
$ 5.62 | |||||
| 10 | 5317039526 | Grip-handle (2) |
|
- | |||||
| 11 | 5303001297 | End Cap-top |
|
$ 70.22 | |||||
| 12 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 13 | 5317511702 | Nameplate |
|
- | |||||
| 14 | 3019041 | Label-lower |
|
- | |||||
| 15 | 5318837802 | Label Upper |
|
- | |||||
| 16 | 5317869009 | Panel-outer-wheat |
|
- | |||||
| 16 | 5317869008 | Panel-outer-avocado |
|
- | |||||
| 16 | 530178690 | Panel-outer-white |
|
- | |||||
| 16 | 5317869011 | Panel-outer-almond |
|
- | |||||
| 16 | 5317869010 | Panel-outer-coffee |
|
- | |||||
| 17 | G178500-21 | Dairy Door (2) |
|
- | |||||
| 18 | 5318539701 | Panel-inner |
|
- | |||||
| 19 | G162887-22 | Rack-door (2) |
|
- | |||||
| 20 | G167150-12 | Trim-refrig Door |
|
- | |||||
| 21 | 5300178694 | Panel-outer-white |
|
- | |||||
| 21 | 5317869408 | Panel-outer-avocado |
|
- | |||||
| 21 | 5317869409 | Panel-outer-wheat |
|
- | |||||
| 21 | 5317869410 | Panel-outer-coffee |
|
- | |||||
| 21 | 5317869411 | Panel-outer-almond |
|
- | |||||
| 22 | 5308015544 | Gasket-refrig Door |
|
- | |||||
| 23 | 5303001295 | Bottom Handle End Cap |
|
- | |||||
| 24 | 5308012007 | Hinge Bearing (8) |
|
- | |||||
| 25 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 26 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 18A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 2A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 |
