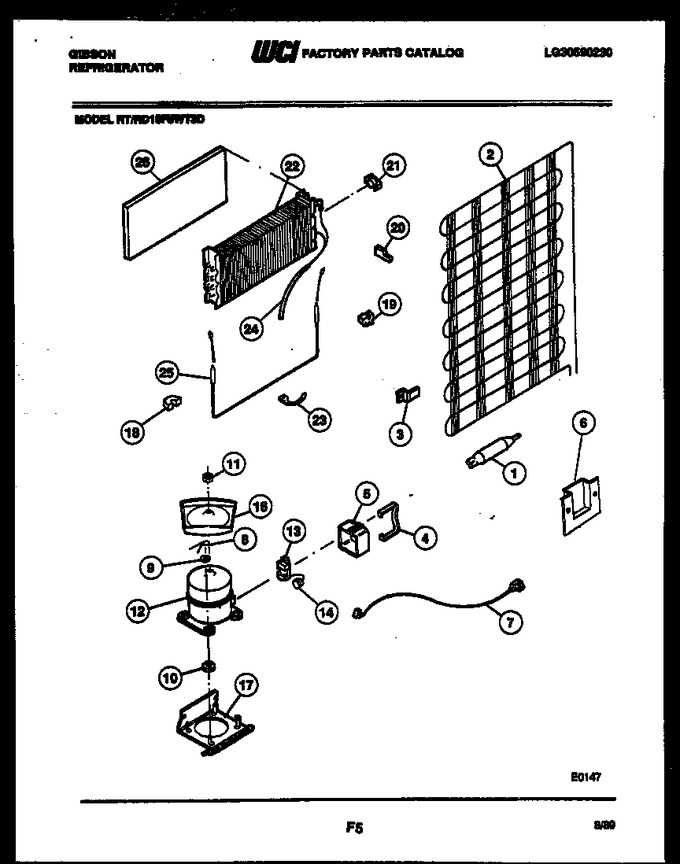

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
2	5300163133		Condenser		Appelez-nous	-
3	5303001342		Bracket-mtg (4)		Appelez-nous	-
4	5303006412		Strap-bale		Appelez-nous	-
5	5303006411		Cover, Terminal		Appelez-nous	-
6	5303001197		Cover-wiring		Appelez-nous	-
7	5316254901		Service Cord		Appelez-nous	-
8	5308003596		Clip (4)				$ 6.62
9	5308003633		Washer (4)				$ 35.67
10	5308008778		Grommet (4)		Appelez-nous	-
11	5303001348		Nut-lock				$ 2.73
12	5303916411		Compressor		Appelez-nous	-
13	216594300		Relay   (Replaces: 3204486)				$ 28.92
14	3204487		Overload		Appelez-nous	-
16	5300184715		Defrost Pan		Appelez-nous	-
17	5308013663		Compressor Mtg Plate		Appelez-nous	-
18	5308017227		Block Insul Lh		Appelez-nous	-
19	5308013648		Block Insul Rh		Appelez-nous	-
20	5303007287		Plug-block Rh		Appelez-nous	-
21	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
22	5300162506		Evaporator		Appelez-nous	-
23	5308000110		Strap-aluminum			Immediately	$ 59.82
24	5308000728		Heat Exchanger		Appelez-nous	-
25	5317842502		Heater-defrost				$ 133.96
26	5316651102		Insulator				$ 53.04
*32557	5303001347		Harness-compressor		Appelez-nous	-
*32558	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
*32558	G103457		Sleeve-connector		Appelez-nous	-
*32558	5300189383		Hot Tube Repair Kit				$ 613.15
*32558	5308017610		Sound Tape		Appelez-nous	-
*32558	5303001199		Clamp				$ 65.92
*32559	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
24A	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
24B	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
3A	5308009617		Washer-ext Tooth Lock (non-illustrated)		Appelez-nous	-
3B	5308000039		Screw		Appelez-nous	-
