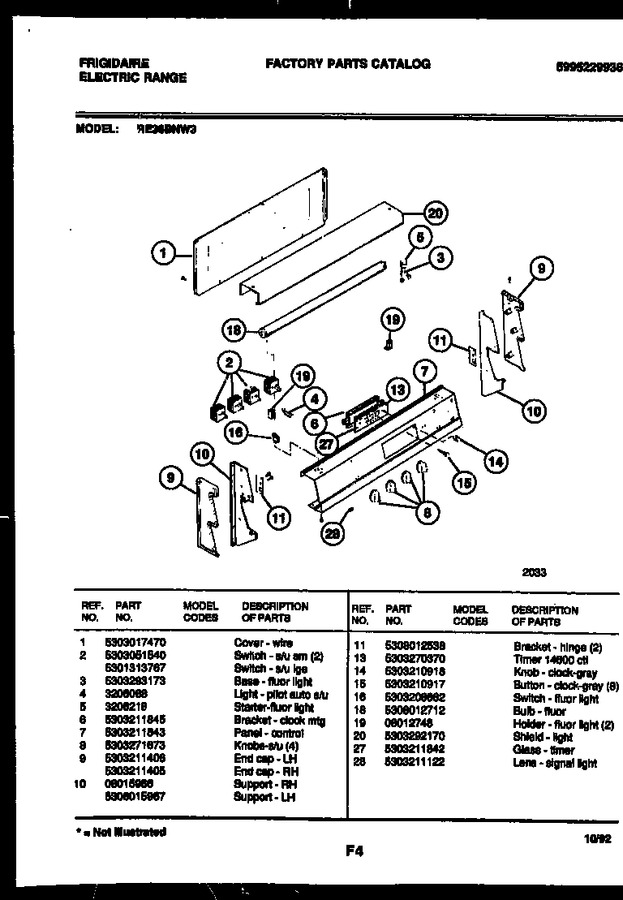

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017470		Cover, Wire.		Appelez-nous	-
2	5303051540		Switch, S/u Sm (2)		Appelez-nous	-
3	5303293173		Base - Fluor Light				$ 18.59
4	3206088		Light - Pilot Auto S/u		Appelez-nous	-
5	3206218		Starter-fluor Light				$ 54.08
6	5303211845		Bracket - Clock Mtg		Appelez-nous	-
7	5303211843		Panel - Control		Appelez-nous	-
8	5303271673		Knobs-s/u (4)		Appelez-nous	-
9	5303211406		End Cap-lh		Appelez-nous	-
10	08015966		Support Rh		Appelez-nous	-
11	5308012538		Bracket, Hinge (2)		Appelez-nous	-
13	5303270370		Timer 14600 Ctl		Appelez-nous	-
14	5303210918		Knob - Clock-gray		Appelez-nous	-
15	5303210917		Button-clock Gray (8)		Appelez-nous	-
16	5303208662		Switch - Fluor Light		Appelez-nous	-
18	5308012712		Bulb-fluor		Appelez-nous	-
19	08012748		Holder-fluor Light (2)		Appelez-nous	-
20	5303292170		Shield-light		Appelez-nous	-
27	5303211842		Glass - Timer				$ 105.11
28	5303211122		Lens - Signal Light		Appelez-nous	-
10A	5308015967		Support - Lh		Appelez-nous	-
2A	5301313767		Switch, S/u Lge		Appelez-nous	-
9A	5303211405		End Cap-rh		Appelez-nous	-
