View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Broiler Parts
03 - Control Panel
04 - Door Parts
05 - Drawer Parts
06 - Body Parts
07 - Cooktop Parts
SELECT A DIAGRAM
New Model Search:

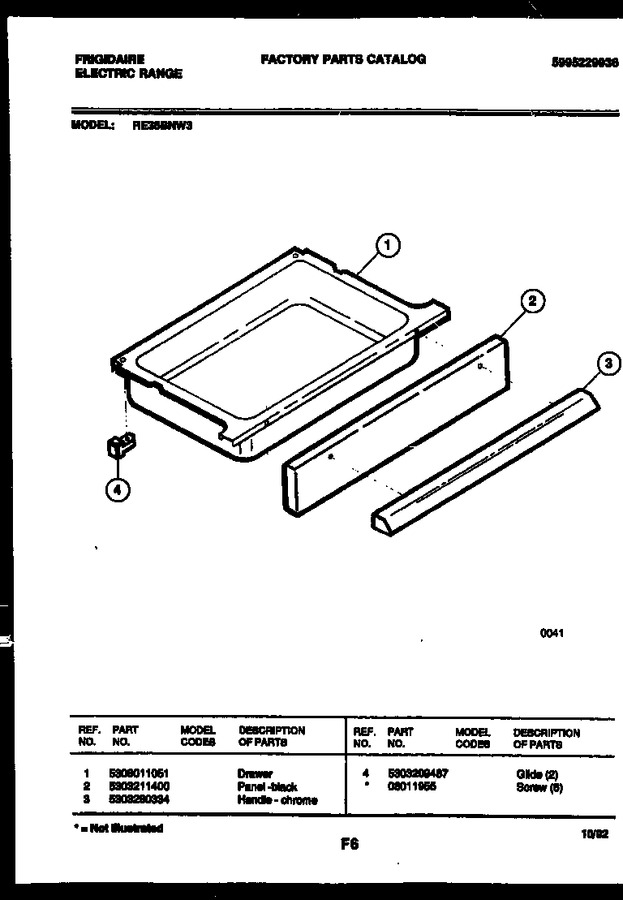

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308011051 | Drawer |
|
- | |||||
| 2 | 5303211400 | Panel-black |
|
- | |||||
| 3 | 5303280334 | Handle-chrome |
|
- | |||||
| 4 | 5303209487 | Glide (2) |
|
- | |||||
| *68859 | 08011955 | Screw (6) |
|
Immediately | $ 9.36 |
