02 - Backguard
03 - Drawer
04 - Body
05 - Door Parts
06 - Cooktop Parts
07 - Broiler Parts
SELECT A DIAGRAM
New Model Search:

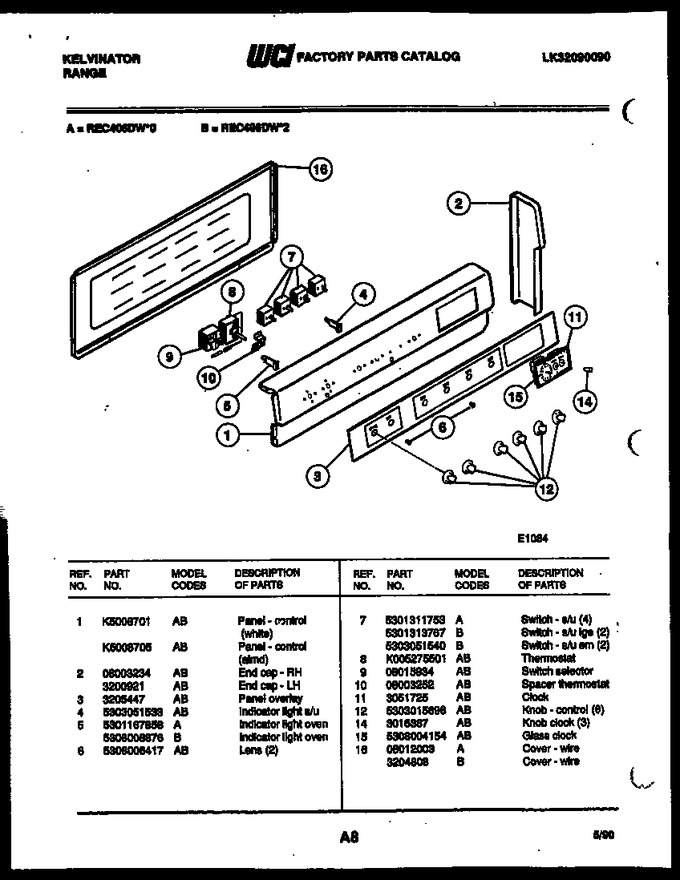

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | K5008705 | Panel - Control (almd) |
|
- | |||||
| 2 | 08003234 | End Cap, Rh |
|
- | |||||
| 3 | 3205447 | Panel Overlay |
|
- | |||||
| 4 | 5303051533 | Indicator Light S/u |
|
$ 53.81 | |||||
| 5 | 5301167858 | Indicator Light Oven |
|
- | |||||
| 6 | 5308006417 | Lens (2) |
|
$ 19.06 | |||||
| 7 | 5301311753 | Switch S/u (4) |
|
- | |||||
| 8 | K005275501 | Thermostat |
|
- | |||||
| 9 | 08015934 | Switch, Selector |
|
- | |||||
| 10 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 11 | 3051725 | Clock |
|
- | |||||
| 12 | 5303015698 | Knob-control (6) |
|
- | |||||
| 14 | 3016387 | Knob-clock (3) |
|
- | |||||
| 15 | 5308004154 | Glass, Clock |
|
- | |||||
| 16 | 08012003 | Cover Wire |
|
- | |||||
| 2A | 3200921 | End Cap - Lh |
|
- |
