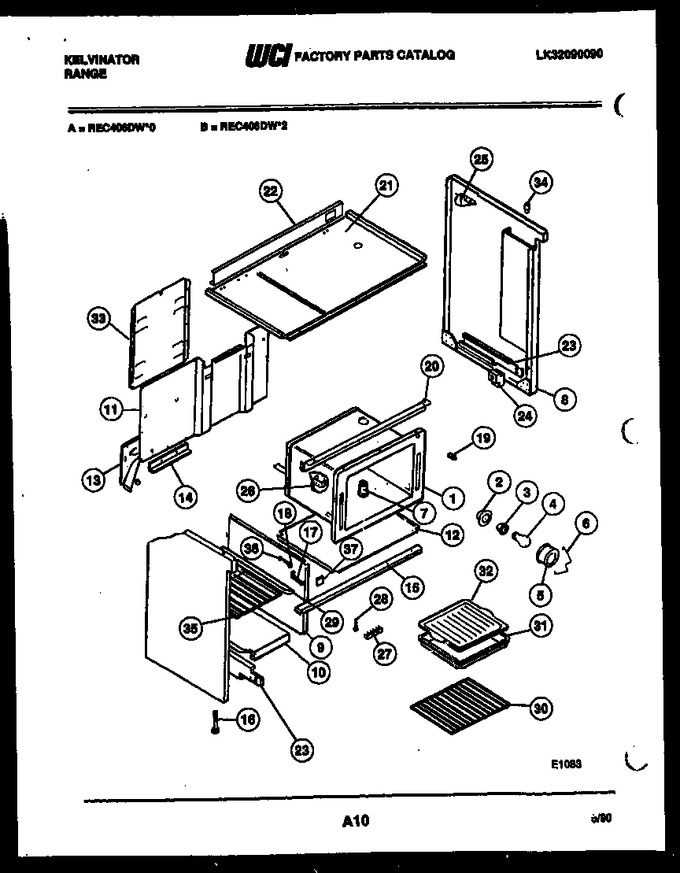

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Drawer
04 - Body
05 - Door Parts
06 - Cooktop Parts
07 - Broiler Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3051511 | Housing-light |
|
$ 60.22 | |||||
| 3 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 6 | 5303205904 | Retainer - Wire Lens |
|
$ 7.67 | |||||
| 7 | 5301311218 | Tube - Oven Vent |
|
- | |||||
| 8 | 5308012529 | Pnl-side Rh Almd |
|
- | |||||
| 9 | 08016542 | Partition - Center |
|
- | |||||
| 10 | 08011951 | Bottom Complete |
|
- | |||||
| 11 | 08015772 | Back - Range |
|
- | |||||
| 12 | 3203172 | Pnl - Bottom |
|
- | |||||
| 13 | 3051636 | Gusset-rear (rh) |
|
- | |||||
| 14 | 5301307085 | Support-gusset |
|
- | |||||
| 15 | 08011954 | Channel, Oven Support |
|
$ 47.60 | |||||
| 16 | 5303205540 | Screw - Levelling |
|
- | |||||
| 17 | 5305138301 | Bracket, Door Strike |
|
- | |||||
| 18 | 08011945 | Strike, Door |
|
- | |||||
| 19 | 5301314211 | Switch - Ov Lt |
|
$ 95.29 | |||||
| 20 | 5305048203 | Bracket - Cooktop |
|
- | |||||
| 21 | 5301317855 | Panel - Subtop |
|
- | |||||
| 22 | 5305287906 | Shield - Wire |
|
- | |||||
| 23 | 5308015746 | Glide - Dwr Rh |
|
- | |||||
| 24 | 3051654 | Glide, Front (2) |
|
- | |||||
| 25 | 3051657 | Gusset - Bkgrd (2) |
|
- | |||||
| 26 | 3051552 | Bracket - Thermo Bulb |
|
- | |||||
| 27 | 5303051098 | Terminal Block |
|
- | |||||
| 28 | K530145190 | Plate - Grounding |
|
- | |||||
| 29 | 5301315199 | Rail - Compl Rack (2) |
|
- | |||||
| 30 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 31 | 08005315 | Pan, Broiler |
|
- | |||||
| 32 | 3203164 | Insert - Broiler Pan |
|
- | |||||
| 33 | 5303051856 | Panel - Wire Cover |
|
- | |||||
| 34 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 35 | 08011960 | Rack - Complete |
|
- | |||||
| 36 | KGM110924 | Nut |
|
- | |||||
| 13A | 3051636 | Gusset - Rear Lh |
|
- | |||||
| 23A | 3051652 | Glide - Dwr Lh |
|
- | |||||
| 6A | 3051521 | Insulation - Wrap (non-illustrated) |
|
- | |||||
| 7A | 5303051630 | Insulation - Back (non-illustrated) |
|
- | |||||
| 8A | 5308012530 | Pnl - Side Lh (almd) |
|
- |
