Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 08067729 Back, O/u Mid Wall Appelez-nous -
2 5303208612 Reflctr - Work Lamp Appelez-nous -
3 3131275 Bulb-fluor Special Order $ 49.40

4 3012947 Insul - Fluor Lite (2) Appelez-nous -
5 597T047S01 Receptacle-fluor Lt (2) Appelez-nous -
6 3131959 Trim Vent Appelez-nous -
7 08010396 Blower-motor Assy. Appelez-nous -
8 08067830 Gusset-mwv Supt Lh Appelez-nous -
8 08067737 Gusset-mwv Supt Rh Appelez-nous -
9 3200496 Glass-splasher U/o Appelez-nous -
10 5303209065 Pnl - Splasher (upper) Appelez-nous -
11 5303051115 Ballast Appelez-nous -
12 08067733 Fstnr., Cable Clamp Appelez-nous -
13 5308008992 Fstnr - Purse Lock Appelez-nous -
14 5303208662 Switch-rocker (2) Appelez-nous -
15 08010549 Trim-o/u Spl. Side Rh Appelez-nous -
15 08010548 Trim-o/u Spl. Side Lh Appelez-nous -
16 5303209039 Trim-o/u Spl Gl Filler Appelez-nous -
17 3204842 Recept Starter Appelez-nous -
18 3206218 Starter Special Order $ 54.08

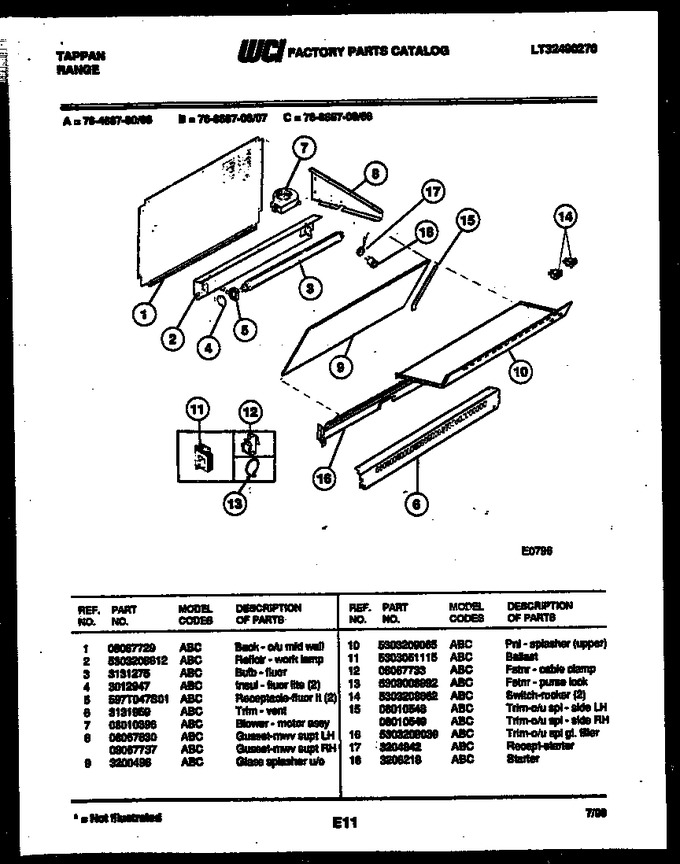

    View Diagram in Separate Window     Print Icon   Print Part List
