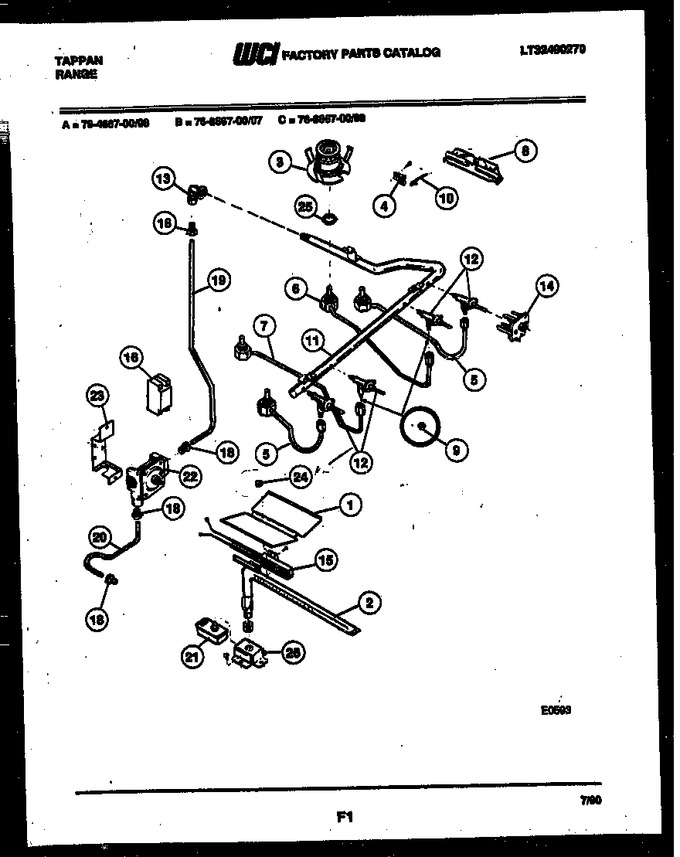

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203265 | Baffle-oven |
|
- | |||||
| 2 | 3131439 | Burner-oven |
|
$ 204.59 | |||||
| 3 | 5303011567 | Burner - Top |
|
- | |||||
| 4 | 3018617 | Retainer, Igniter |
|
- | |||||
| 5 | 5303131970 | Burner - Tube Lf, Rf |
|
- | |||||
| 6 | 5303011569 | Burner-tube-rr |
|
- | |||||
| 7 | 5303011570 | Burner-tube-lr |
|
- | |||||
| 8 | 136T355W03 | Channel, Flash Tube |
|
- | |||||
| 9 | 08067945 | Ferrule (4) |
|
- | |||||
| 10 | 5303131105 | Igniter-top Burner (4) |
|
- | |||||
| 11 | 3131440 | Manifold Pipe |
|
- | |||||
| 12 | 5393017846 | Valve - 3 Pos. |
|
- | |||||
| 13 | 08067948 | Elbow 1/2 Np To 9/16-24 |
|
- | |||||
| 14 | 5303131580 | Sw. - Igniter (3 Pos) |
|
- | |||||
| 15 | 3131300 | Igniter, Oven |
|
- | |||||
| 16 | 5303200669 | Spark Module |
|
- | |||||
| 18 | 3131261 | Fitting, Loxit |
|
- | |||||
| 19 | 5303208495 | Tube - Alum 3/8 |
|
- | |||||
| 20 | 3131448 | Tube - Alum 3/8 |
|
- | |||||
| 21 | 5303131449 | Valve - Safety |
|
- | |||||
| 22 | 5303208498 | Control, Regulator |
|
- | |||||
| 23 | 08067934 | Bracket - Regul. |
|
- | |||||
| 24 | 154079601 | Nut (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 25 | 3013279 | Nut, Special, 4 |
|
$ 2.34 | |||||
| 26 | 3131438 | Brkt.-valve |
|
- | |||||
| *38898 | 3131598 | Washer-(repair) (2) |
|
- | |||||
| *38898 | 3131737 | Washer (4) |
|
$ 5.59 | |||||
| *38898 | 3051420 | Pop Rivet |
|
- | |||||
| 13A | 3131148 | Nut-compression |
|
- |
