Diagram for 02 - Freezer Door
02 - Freezer Door

Diagram for 03 - Freezer Shelves
03 - Freezer Shelves

Diagram for 04 - Hinges
04 - Hinges

Diagram for 05 - Ice Maker
05 - Ice Maker

Diagram for 06 - Machine Compartment And Cabinet Back
06 - Machine Compartment And Cabinet Back

Diagram for 07 - Refrigerator Compartment
07 - Refrigerator Compartment

Diagram for 08 - Refrigerator Door
08 - Refrigerator Door

Diagram for 09 - Refrigerator Shelves
09 - Refrigerator Shelves


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 555555 Assy Door Foam Fre   (Replaces: DA91-02051A) Special Order $ 151.94

2 DA63-01052A Gasket Door-sub,fre Special Order $ 26.72

3 DA67-01230A Cap-handle Special Order $ 0.85

4 DA63-02516A Grommet Hinge Special Order $ 0.85

5 555555 Stopper-mid   (Replaces: DA61-02158A) Special Order $ 151.94

6 DA61-02157A Stopper-door Low Special Order $ 6.95

7 6002-000213 Screw-tapping In-Stock Immediately $ 0.93


    View Diagram in Separate Window     Print Icon   Print Part List

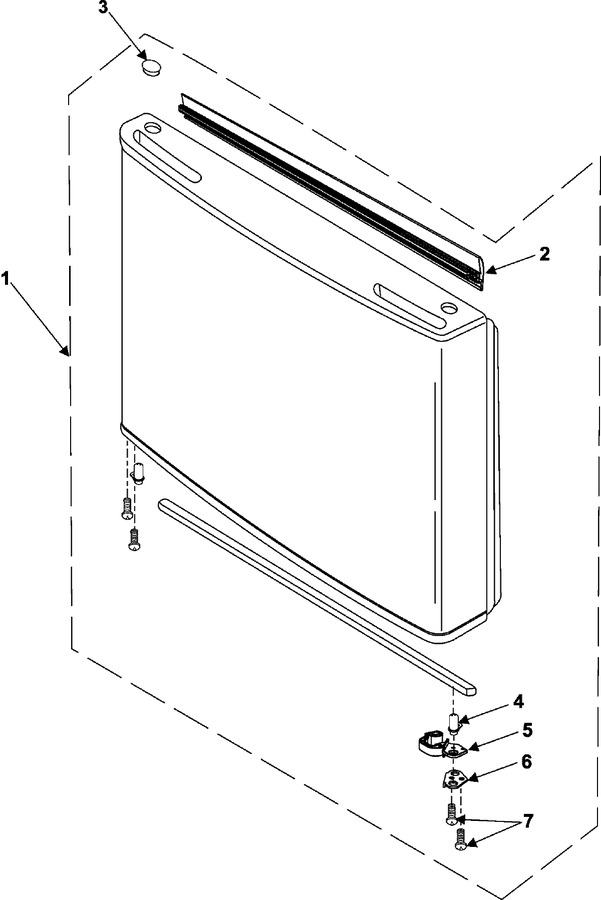

Diagram for RB215BSSB
