Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DA97-02782A Assy Hinge Upp;w2-05,t3.2 Special Order $ 43.20

2 DA63-50139C Shim Hinge-mid Special Order $ 2.50

2 DA97-02783A Assy Hinge Mid;w2-05,t04 Special Order $ 50.90

2 DA61-02160A Hinge-mid In-Stock Immediately $ 47.11

3 DA97-02904A Assy Hinge Mid-l Special Order $ 56.08

3 DA61-02160A Hinge-mid In-Stock Immediately $ 47.11

3 DA63-02527A Shim-hinge Upp Appelez-nous -
4 DA61-02161A Hinge-upp Special Order $ 31.07

5 DA61-02162A Hinge Low Special Order $ 11.12

6 6002-000458 Screw-tapping Special Order $ 1.66

7 DA63-02520A Cover Hinge-upp L Special Order $ 12.60

8 DA63-02521A Cover Hinge-upp R Special Order $ 8.89

9 DA63-02530B Cover Hinge-low Special Order $ 2.03

10 6002-000213 Screw-tapping In-Stock Immediately $ 0.93

11 6002-000213 Screw-tapping In-Stock Immediately $ 0.93

12 DA60-10004A Screw-tap Tite Special Order $ 2.78

13 DA60-10123G Screw-tap Tite Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

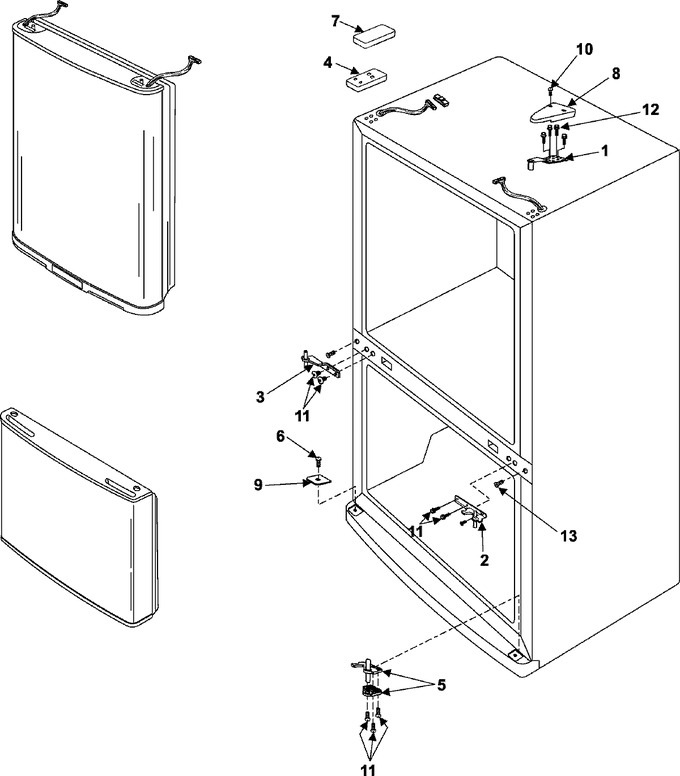

Diagram for RB215BSSB
