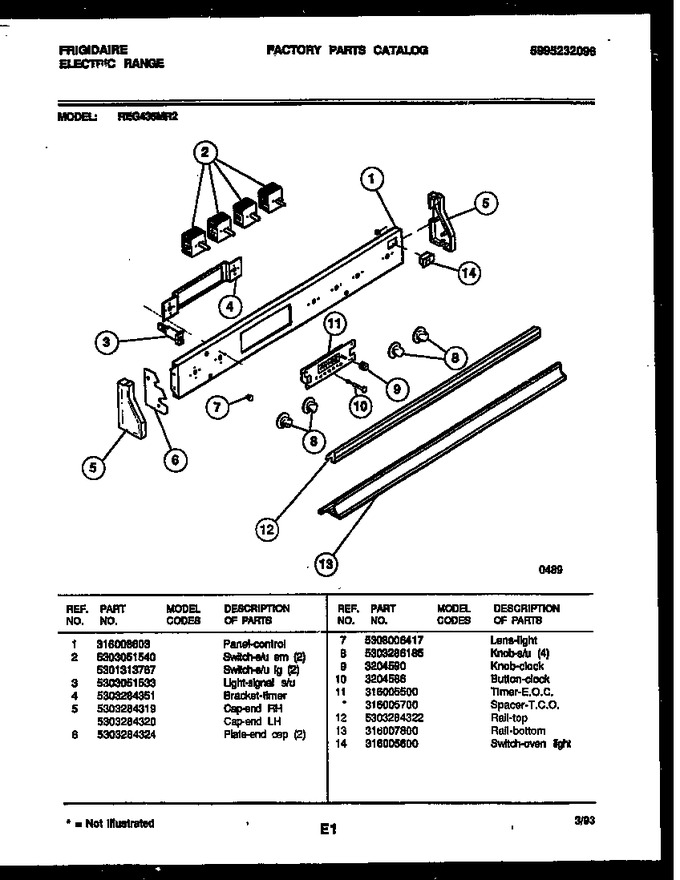

02 - Control Panel
03 - Cooktop And Broiler Parts
04 - Door Parts
05 - Body Parts
06 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316008603 | Panel-control |
|
- | |||||
| 2 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 3 | 5303051533 | Light-signal S/u |
|
$ 53.81 | |||||
| 4 | 5303284351 | Bracket-timer |
|
- | |||||
| 5 | 5303284319 | Cap-end Rh |
|
- | |||||
| 6 | 5303284324 | Plate-end Cap (2) |
|
- | |||||
| 7 | 5308006417 | Lens-light |
|
$ 19.06 | |||||
| 8 | 5303286185 | Knob-s/u (4) |
|
- | |||||
| 9 | 3204590 | Knob-clock |
|
- | |||||
| 10 | 3204586 | Button-clock |
|
- | |||||
| 11 | 316005500 | Timer-e.o.c. |
|
- | |||||
| 12 | 5303284322 | Rail-top |
|
- | |||||
| 13 | 316007800 | Rail-bottom |
|
- | |||||
| 14 | 316005600 | Switch-oven Light |
|
- | |||||
| 11A | 316005700 | Spacer-t.c.o. (non-illustrated) |
|
- | |||||
| 2A | 5301313767 | Switch-s/u Lg. (2) |
|
- | |||||
| 5A | 5303284320 | Cap-end Lh |
|
- |
