New Model Search:

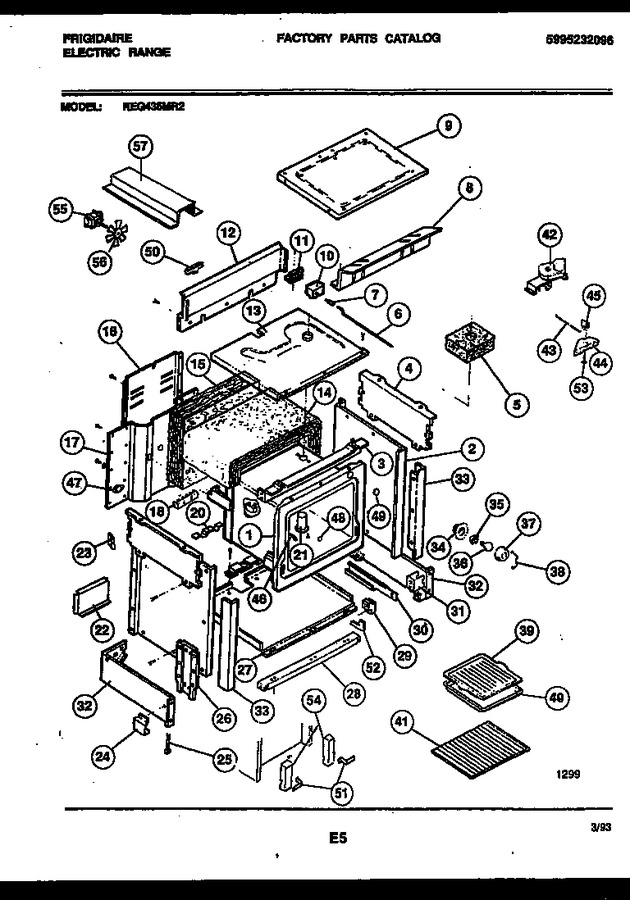

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303293411 | Liner-oven |
|
- | |||||
| 2 | 08012226 | Shield-insulation (2) |
|
- | |||||
| 3 | 5303293413 | Bracket-cooktop |
|
- | |||||
| 4 | 5308015935 | Panel, Side (2) |
|
- | |||||
| 5 | 3008673 | Insulation-vent Tube |
|
- | |||||
| 6 | 3051645 | Rod-switch |
|
- | |||||
| 7 | 08007444 | End-push Rod |
|
- | |||||
| 8 | 316039801 | Shield-wire |
|
- | |||||
| 9 | 5303293414 | Panel-subtop |
|
- | |||||
| 10 | W10169313 | Switch-door Latch (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 11 | 3051643 | Bracket-door Sw |
|
- | |||||
| 12 | 5303286183 | Back-range Upper |
|
- | |||||
| 13 | 5303294767 | Retainer-insulation Top |
|
- | |||||
| 14 | 3051521 | Oven Wrapper Insul |
|
- | |||||
| 15 | 5303051630 | Oven Back Insulation |
|
- | |||||
| 16 | 5303051586 | Wiring Cover |
|
- | |||||
| 17 | 5303280344 | Back-range |
|
- | |||||
| 18 | 5304409888 | Main-terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 3203574 | Plate, Mounting |
|
- | |||||
| 21 | 3051773 | Tube-vent Assy |
|
- | |||||
| 22 | 3051634 | Channel, Air |
|
- | |||||
| 23 | 3051827 | Plate-filler |
|
- | |||||
| 24 | 08012736 | Shield-toe (2) |
|
- | |||||
| 25 | 5303205540 | Screw-leveling (4) |
|
- | |||||
| 26 | 3051776 | Support-front (2) |
|
- | |||||
| 27 | 3205124 | Shield-bottom |
|
- | |||||
| 28 | 08012722 | Channel, Oven |
|
- | |||||
| 29 | 3051654 | Glide-front |
|
- | |||||
| 30 | 5308015746 | Rail-drwr Rh |
|
- | |||||
| 31 | 3051653 | Spacer-drawer Glide (2) |
|
- | |||||
| 32 | 5303280349 | Panel-side Rh |
|
- | |||||
| 33 | 3051777 | Trim, Oven Front (2) |
|
- | |||||
| 34 | 3051511 | Housing-light |
|
$ 60.22 | |||||
| 35 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 36 | 3201908 | Oven-light |
|
- | |||||
| 37 | 5304524341 | Oven Lamp Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 38 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 39 | 5303293415 | Insert-broiler Pan |
|
- | |||||
| 40 | 5303293416 | Pan-broiler |
|
- | |||||
| 41 | 08014219 | Rack-oven, Offset |
|
- | |||||
| 42 | 5303271102 | Motor-latch Assy |
|
- | |||||
| 43 | 3051649 | Tie Bar |
|
- | |||||
| 44 | 3051647 | Latch Housing |
|
- | |||||
| 45 | 3051648 | Latch-door |
|
- | |||||
| 46 | 5303208888 | Probe-sensor |
|
- | |||||
| 47 | 5303284446 | Switch-thermo Cut-out |
|
- | |||||
| 48 | 3204825 | Plug, Button |
|
- | |||||
| 49 | 3204817 | Plug, Button |
|
- | |||||
| 50 | 3051800 | Bracket, Hinge Support |
|
- | |||||
| 51 | 5303280340 | Retainer-counter-weight |
|
- | |||||
| 52 | 3051810 | Retainer-door (2) |
|
- | |||||
| 53 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 54 | 5303280341 | Cement-counter-weight |
|
- | |||||
| 55 | 5303284447 | Motor-fan |
|
- | |||||
| 56 | 316017600 | Blade-fan |
|
- | |||||
| 57 | 5303284448 | Channel-air |
|
- | |||||
| *74616 | 316002005 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| *74616 | 316007700 | Shield-heat |
|
- | |||||
| *74616 | 3051788 | Insulation, Liner |
|
- | |||||
| 30A | 3051652 | Rail-drwr Lh |
|
- | |||||
| 32A | 5303280351 | Panel-side Lh |
|
- | |||||
| 41A | 5303281625 | Rack Oven |
|
- | |||||
| 51A | 3931015 | Anti-tip Kit, (non-illustrated) |
|
- |
