Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 318372211 Element S/u Sm (2)   (Replaces: 08067762) In-Stock Immediately $ 45.14

2 316048414 Pan S/u Sm (2)   (Replaces: 5303280336) In-Stock Immediately $ 16.11

4 5308003317 Top-main (white) Appelez-nous -
5 5308003325 Hinge-top (2) Appelez-nous -
6 5303935058 Receptacle (4)   (Replaces: 5301167733) In-Stock Immediately $ 13.81

7 5303051519 Element-bake In-Stock Immediately $ 44.70

8 5303051516 Element-broil Special Order $ 189.23

9 3051518 Support-br Element Appelez-nous -
10 3051554 Rod-top Support Appelez-nous -
1A 316442301 Element S/u Lg (2)   (Replaces: 5303012223) In-Stock Immediately $ 44.39

2A 316048413 Pan S/u Lg (2)   (Replaces: 5303013588) In-Stock Immediately $ 9.85


    View Diagram in Separate Window     Print Icon   Print Part List

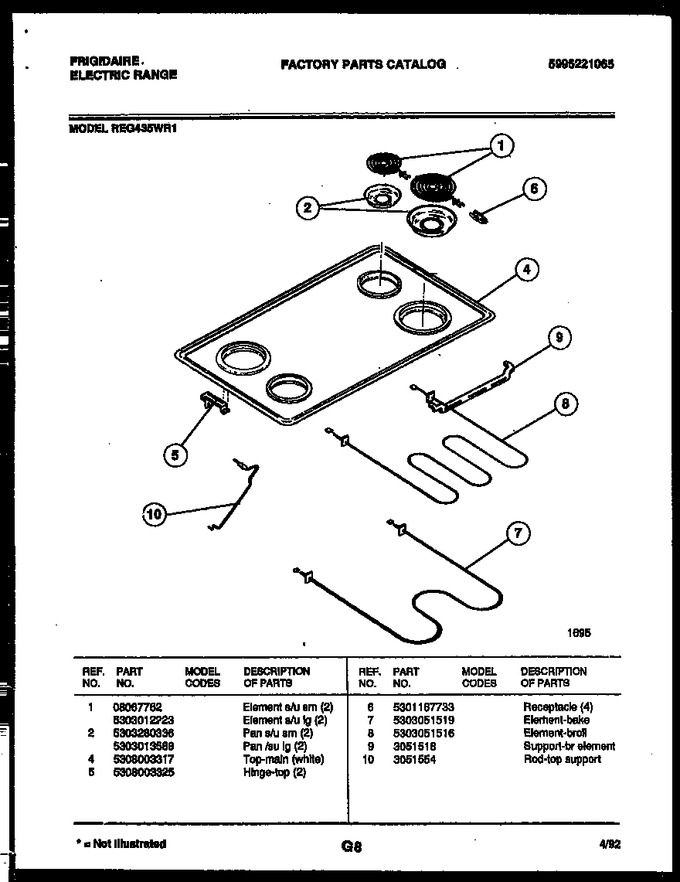

Diagram for REG435WRW1
