Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316016000 Glass-outer Appelez-nous -
2 5308015938 Frame, Door Appelez-nous -
3 5301167830 Strike-door Appelez-nous -
4 5303269674 Baffle-oven Door Appelez-nous -
5 5303051704 Gasket - Oven Door Special Order $ 388.08

6 5303269528 Insulation-baffle Appelez-nous -
7 5303209512 Glass Heat Barrier (2) Special Order $ 150.41

8 5303269564 Collar-glass Weldment Appelez-nous -
9 5303209517 Spacer-glass Appelez-nous -
10 316016201 Handle Appelez-nous -
11 3051807 Button, Plug (2) Appelez-nous -
12 08002868 Screw 10 X 24 X 1/2 Special Order $ 14.18

13 3017468 Door Liner Appelez-nous -
14 5303210232 Door Hinge Assy (2) Appelez-nous -
15 5308003186 Spring - Door (2) Appelez-nous -
16 5303286188 Screw-handle (4) Appelez-nous -
17 5303269529 Insulation-airwash Appelez-nous -
18 5303269570 Panel, Airwash Appelez-nous -
19 5303269535 Gasket-glass Appelez-nous -
20 5303269530 Insulation, Airwash (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

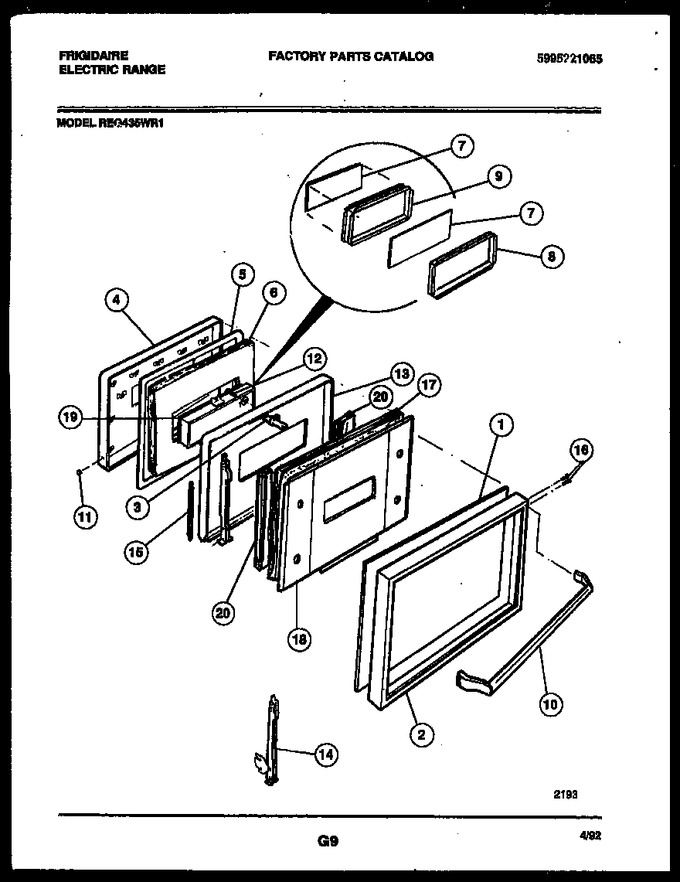

Diagram for REG435WRW1
