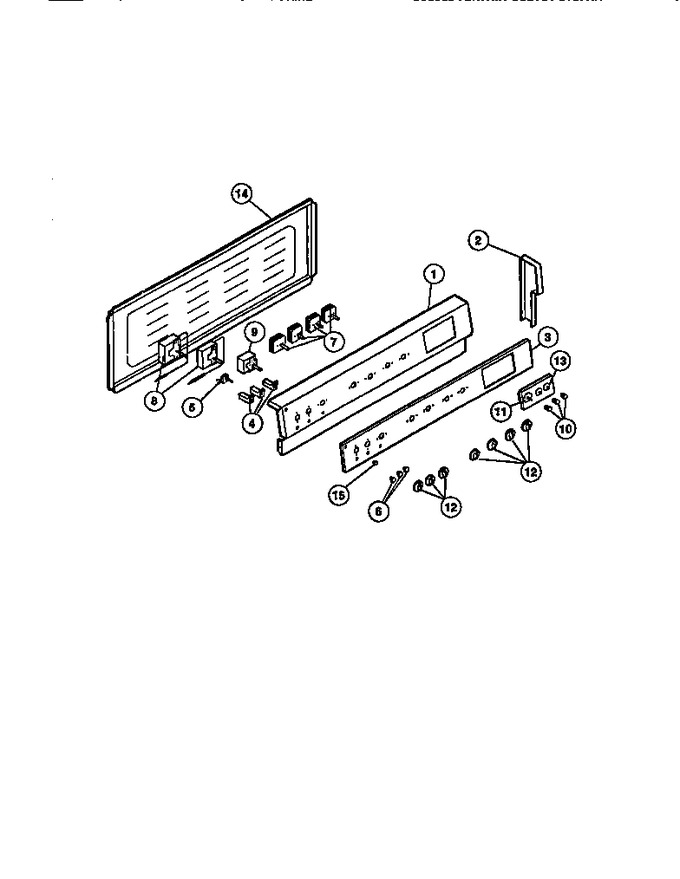

02 - Control Panel, Cook-master, Switche
03 - Drawer, Panels
04 - Oven Door
05 - Cook Top, Surface Units, Drip Pans,
06 - Oven Liner, Side Panels
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014207 | Panel, Control (wheat) |
|
- | |||||
| 2 | 08003234 | End Cap, Rh |
|
- | |||||
| 3 | 08015775 | Panel, Overlay |
|
- | |||||
| 4 | 5308012563 | Indicator Light, Clean And Lc Oven (2) |
|
- | |||||
| 5 | 5308012573 | Switch, Oven Light |
|
- | |||||
| 6 | 08012769 | Lens, Indicator Light (4) |
|
- | |||||
| 7 | 5303051540 | Switch, Surface Unit (4) |
|
- | |||||
| 8 | 08015774 | Thermostat, Lh Oven |
|
- | |||||
| 9 | 5308015771 | Selector Switch |
|
- | |||||
| 10 | 08004148 | Knob, Clock (3) |
|
- | |||||
| 11 | 08014217 | Clock |
|
- | |||||
| 12 | 5308015741 | Knob, Control (7) |
|
$ 91.02 | |||||
| 13 | 5308004154 | Glass, Clock |
|
- | |||||
| 14 | 3204808 | Cover Wire |
|
- | |||||
| 15 | 08012572 | Nut |
|
- | |||||
| 2A | 08003235 | End Cap, Lh |
|
- | |||||
| 4A | 08950022 | Indicator Light, Surface Unit |
|
- | |||||
| 4B | 08012515 | Indicator Light, Small Oven |
|
- | |||||
| 8A | 5308014203 | Thermostat, Rh Oven |
|
- |
