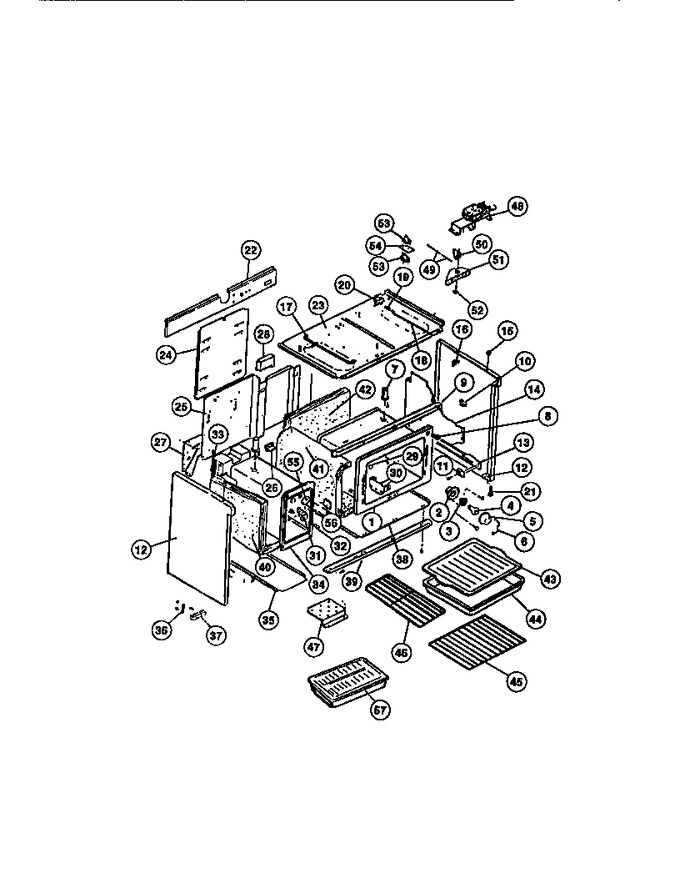

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303203691 | Liner, Oven, Rh |
|
- | |||||
| 2 | 3204816 | Housing, Oven Light |
|
- | |||||
| 3 | 316116400 | Receptacle, Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 40A15 | Bulb, Oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 6 | 5303205904 | Retainer, Lens, Oven Light |
|
$ 7.67 | |||||
| 7 | 08012252 | Tube, Oven Vent, Rh |
|
- | |||||
| 8 | 3204817 | Button, Plug (2) |
|
- | |||||
| 9 | 5305048202 | Support, Cooktop |
|
- | |||||
| 10 | 08008878 | Bracket, Filler |
|
- | |||||
| 11 | 3051654 | Guide, Front (2) |
|
- | |||||
| 12 | 08012535 | Panel, End, Rh (wheat) |
|
- | |||||
| 13 | 3204818 | Glide, Drawer, Rh |
|
- | |||||
| 14 | 3204820 | Retainer, Insulation |
|
- | |||||
| 15 | 5308003107 | Bumper, Cooktop (2) |
|
- | |||||
| 16 | 3204821 | Gusset, Backguard (2) |
|
- | |||||
| 17 | 3051554 | Rod-top Support |
|
- | |||||
| 18 | 08007445 | Rod, Switch |
|
- | |||||
| 19 | 08007444 | End-push Rod |
|
- | |||||
| 20 | W10169313 | Switch, Light (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 21 | 5303205540 | Screw-leveling (4) |
|
- | |||||
| 22 | 08016543 | Shield, Wire |
|
- | |||||
| 23 | 08014195 | Panel, Sub Top |
|
- | |||||
| 24 | 3204650 | Cover |
|
- | |||||
| 25 | 3204827 | Back, Range |
|
- | |||||
| 26 | 08011953 | Support |
|
- | |||||
| 27 | 3204822 | Gusset, Rear, Rh |
|
- | |||||
| 28 | 3204824 | Channel, Air |
|
- | |||||
| 29 | 3204825 | Plug, Button |
|
- | |||||
| 30 | 3051550 | Bracket, Thermostat Bulb |
|
- | |||||
| 31 | 5305138301 | Bracket, Door Strike |
|
- | |||||
| 32 | 08011945 | Strike, Door |
|
- | |||||
| 33 | 5301167905 | Insulation, Back |
|
- | |||||
| 34 | 3205600 | Liner, Small Oven |
|
- | |||||
| 35 | 3204828 | Panel, Bottom, Lh |
|
- | |||||
| 36 | 08003146 | Clip |
|
- | |||||
| 37 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 38 | 3203574 | Panel, Bottom, Rh |
|
- | |||||
| 39 | 08011954 | Channel, Oven Support |
|
$ 47.60 | |||||
| 40 | 5301305817 | Insulation, Wrap, Small Oven |
|
- | |||||
| 41 | 5303061630 | Insulation, Wrap, Large Oven |
|
- | |||||
| 42 | 5303051630 | Insulation, Back, Large Oven |
|
- | |||||
| 43 | 5303019066 | Insert, Broiler Pan |
|
- | |||||
| 44 | 08005315 | Pan, Broiler |
|
- | |||||
| 45 | 08014219 | Rack, Large Oven Offset |
|
- | |||||
| 46 | 08014191 | Rack, Small Oven |
|
- | |||||
| 47 | 08014188 | Shield, Element |
|
- | |||||
| 48 | 5308015743 | Motor, Lock Assembly |
|
$ 211.92 | |||||
| 49 | 3051649 | Bar, Tie |
|
- | |||||
| 50 | 3051684 | Latch |
|
- | |||||
| 51 | 3051647 | Housing, Latch |
|
- | |||||
| 52 | 5308012004 | Pin, Latch Axle |
|
$ 8.29 | |||||
| 53 | 5308006582 | Switch (2) |
|
- | |||||
| 54 | 08003090 | Insulator (2) |
|
- | |||||
| 55 | 3204815 | Cover, Light |
|
- | |||||
| 57 | 08014183 | Pan, Insert Broiler, Small |
|
- | |||||
| *25760 | 3934058 | Anti-tip Kit |
|
$ 98.75 | |||||
| 12A | 08012536 | Side Panel Lh-wheat |
|
- | |||||
| 13A | 3204819 | Glide, Drawer, Lh |
|
- | |||||
| 27A | 3204823 | Gusset, Rear, Lh |
|
- | |||||
| 45A | 5303131973 | Rack, Large Oven, Regular |
|
- |
