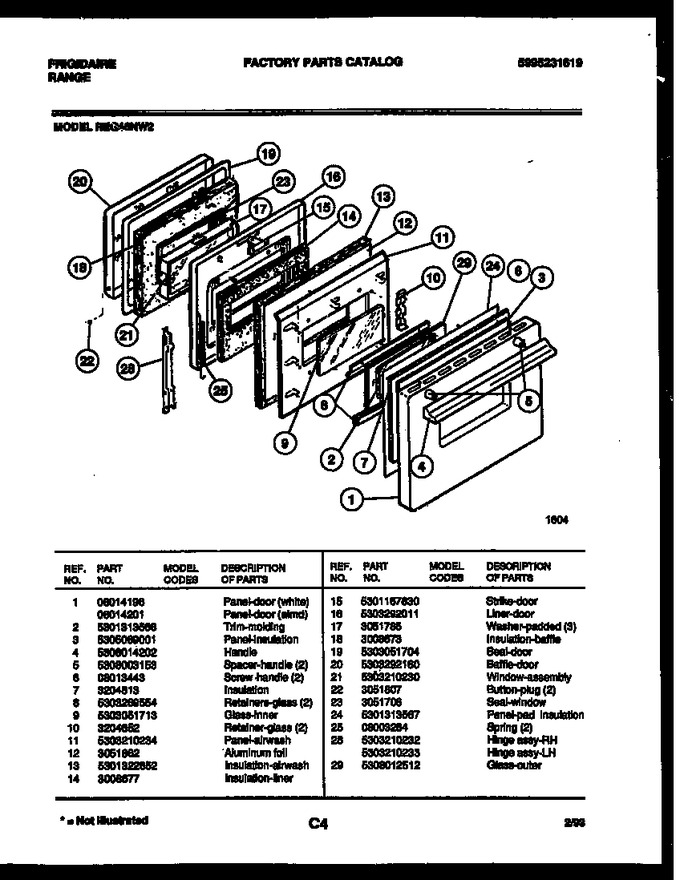

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014196 | Panel - Door (white) |
|
- | |||||
| 2 | 5301313568 | Trim-molding |
|
- | |||||
| 3 | 5305069001 | Panel, Insulation |
|
- | |||||
| 4 | 5308014202 | Handle |
|
- | |||||
| 5 | 5308003153 | Spacer-handle, (2) |
|
- | |||||
| 6 | 08013443 | Screw Handle (2) |
|
- | |||||
| 7 | 3204813 | Insulation |
|
- | |||||
| 8 | 5303269554 | Retainers-glass (2) |
|
- | |||||
| 9 | 5303051713 | Glass, Inner |
|
- | |||||
| 10 | 3204652 | Retainer, Glass (2) |
|
- | |||||
| 11 | 5303210234 | Panel-airwash |
|
- | |||||
| 12 | 3051862 | Aluminum Foil |
|
- | |||||
| 13 | 5301322652 | Insulation, Airwash |
|
- | |||||
| 14 | 3008677 | Insulation, Liner |
|
- | |||||
| 15 | 5301167830 | Strike-door |
|
- | |||||
| 16 | 5303292011 | Liner-door |
|
- | |||||
| 17 | 3051785 | Washer, Padded (3) |
|
- | |||||
| 18 | 3008673 | Insulation, Baffle |
|
- | |||||
| 19 | 5303051704 | Seal, Door |
|
$ 388.08 | |||||
| 20 | 5303292160 | Baffle-door |
|
- | |||||
| 21 | 5303210230 | Window-assembly |
|
- | |||||
| 22 | 3051807 | Button, Plug (2) |
|
- | |||||
| 23 | 3051706 | Seal Window |
|
- | |||||
| 24 | 5301313567 | Panel-pad Insulation |
|
- | |||||
| 25 | 08003264 | Spring-oven Door |
|
- | |||||
| 28 | 5303210232 | Hinge Assy-rh |
|
- | |||||
| 29 | 5308012512 | Glass, Outer |
|
- | |||||
| 28A | 5303210233 | Hinge Assy-lh |
|
- |
