02 - Control Panel
03 - Door And Drawer Parts
04 - Door Parts
05 - Cooktop And Broiler Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:

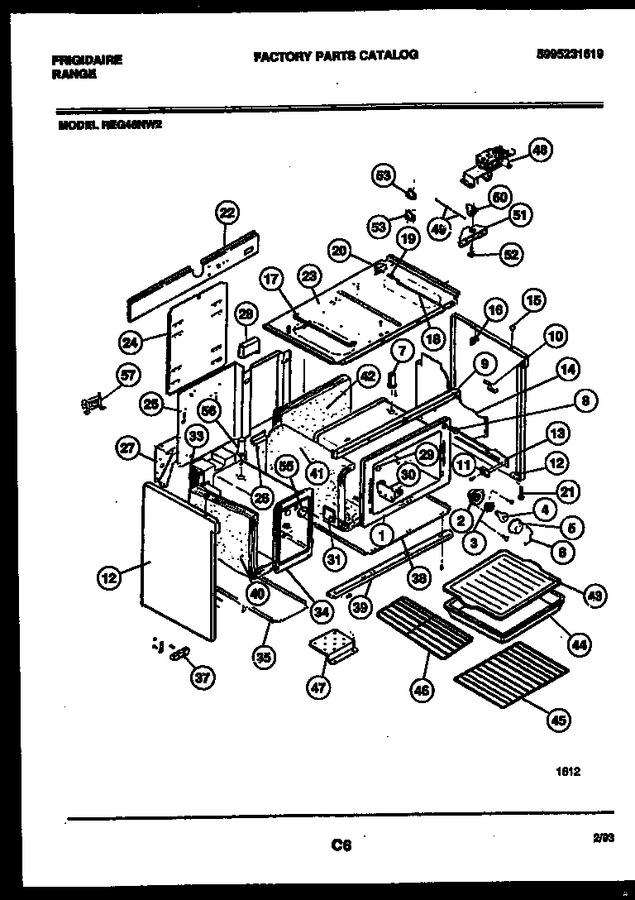

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303292166 | Oven Assembly-right |
|
- | |||||
| 2 | 3051511 | Housing-oven Light |
|
$ 60.22 | |||||
| 3 | 316116400 | Receptacle - Oven Lt (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 3201908 | Oven Lamp |
|
- | |||||
| 5 | 5304524341 | Lens-oven Light (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 6 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 7 | 5305055002 | Tube-oven Vent Rh |
|
- | |||||
| 8 | 3204817 | Button-plug |
|
- | |||||
| 9 | 5303292165 | Bracket-cooktop |
|
- | |||||
| 10 | 08008878 | Bracket-filter |
|
- | |||||
| 11 | 3051654 | Drawer Glide |
|
- | |||||
| 12 | 5308012527 | Panel-end Rh (white) |
|
- | |||||
| 13 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 14 | 3051632 | Insulation-retainer |
|
- | |||||
| 15 | 5308003107 | Bumper-cooktop |
|
- | |||||
| 16 | 3204821 | Gusset |
|
- | |||||
| 17 | 3051554 | Rod - Top Support-cooktop |
|
- | |||||
| 18 | 3051645 | Push Rod |
|
- | |||||
| 19 | 08007444 | End-push Rod |
|
- | |||||
| 20 | W10169313 | Switch-door Light (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 21 | 5303205540 | Leg, Leveling (4) |
|
- | |||||
| 22 | 5303209319 | Shield - Wire |
|
- | |||||
| 23 | 5303292165 | Panel-sub Top |
|
- | |||||
| 24 | 5303051856 | Wiring Cover |
|
- | |||||
| 25 | 3204827 | Back |
|
- | |||||
| 26 | 5301307085 | Support-gusset |
|
- | |||||
| 27 | 3204822 | Gusset, Rear, Rh |
|
- | |||||
| 28 | 3204824 | Channel, Air |
|
- | |||||
| 29 | 3204825 | Plug, Button |
|
- | |||||
| 30 | 3051552 | Brkt, Thermobulb |
|
- | |||||
| 31 | 3204318 | Plate-strike |
|
- | |||||
| 33 | 5301167905 | Insulation, Back |
|
- | |||||
| 34 | 5303294321 | Oven Assy-sm Left |
|
- | |||||
| 35 | 3204828 | Bottom Insul Panel |
|
- | |||||
| 37 | 5304409888 | Block-terminal-main (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 38 | 3206275 | Panel, Bottom |
|
- | |||||
| 39 | 08011954 | Channel - Oven Sprt |
|
$ 47.60 | |||||
| 40 | 5301305817 | Oven-insul-wrapper |
|
- | |||||
| 41 | 3203029 | Oven-insul-wrapper |
|
- | |||||
| 42 | 5303051630 | Oven-insul-back |
|
- | |||||
| 43 | 5303293415 | Insert-broiler Pan |
|
- | |||||
| 44 | 5303293416 | Pan-broiler |
|
- | |||||
| 45 | 08014219 | Rack - Lge Oven Offset |
|
- | |||||
| 46 | 08014191 | Rack - Sm Oven |
|
- | |||||
| 47 | 5303292163 | Shield-element |
|
- | |||||
| 48 | 5308015743 | Motor - Lock Assy |
|
$ 211.92 | |||||
| 49 | 3051649 | Bar, Tie |
|
- | |||||
| 50 | 3051648 | Latch-door |
|
- | |||||
| 51 | 3051647 | Housing, Latch |
|
- | |||||
| 52 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 53 | 5303051740 | Switch-top |
|
- | |||||
| 55 | 3017576 | Cover-light |
|
- | |||||
| 56 | 3017402 | Tube-oven Vent, Lh |
|
- | |||||
| 57 | 5301308270 | Ballast |
|
- | |||||
| *72510 | 08014183 | Grill-broiler |
|
- | |||||
| *72511 | 3203575 | Anti-tip Brkt |
|
- | |||||
| *72511 | 3051810 | Retainer-door (2) |
|
- | |||||
| *72511 | 3203576 | Anti-tip Brkt |
|
- | |||||
| 12A | 5308012528 | Panel-end Lh (white) |
|
- | |||||
| 13A | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 27A | 3204823 | Gusset, Rear, Lh |
|
- | |||||
| 45A | 5303281625 | Rack-oven Offset |
|
- | |||||
| 53A | 5308006582 | Switch-bottom |
|
- |
