SELECT A DIAGRAM

02 - Control Panel


03 - Cooktop And Broiler Parts


04 - Door Parts


05 - Body Parts

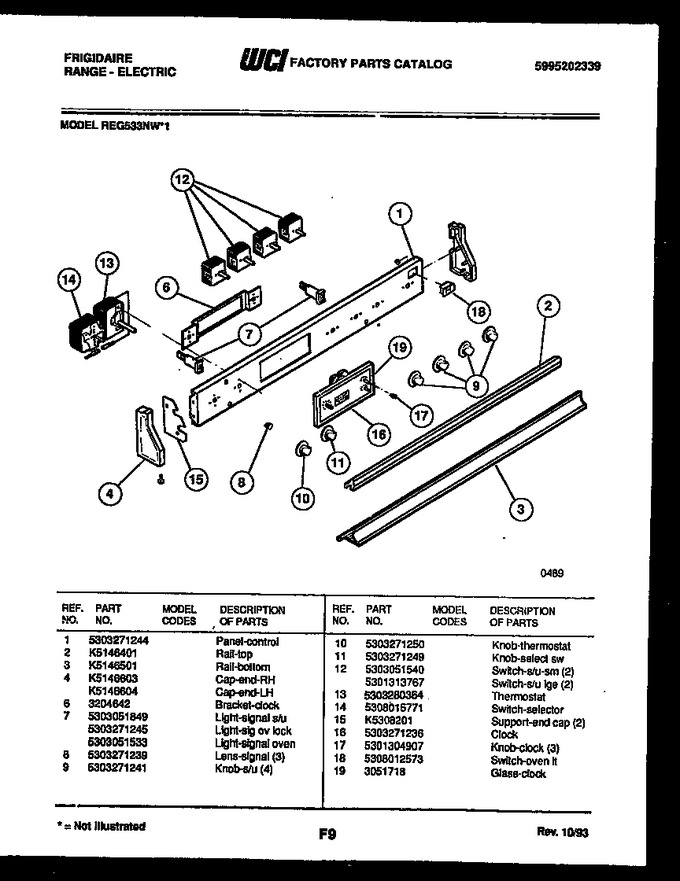

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303271244		Panel-control		Appelez-nous	-
2	K5146401		Rail-top		Appelez-nous	-
3	K5146501		Rail-bottom		Appelez-nous	-
4	K5146603		Cap-end-rh		Appelez-nous	-
6	3204642		Bracket-clock		Appelez-nous	-
7	5303051849		Light-signal S/u		Appelez-nous	-
8	5303271239		Lens-signal (3)		Appelez-nous	-
9	5303271241		Knob-s/u (4)		Appelez-nous	-
10	5303271250		Knob-thermostat		Appelez-nous	-
11	5303271249		Knob-select Sw		Appelez-nous	-
12	5303051540		Switch, S/u Sm (2)		Appelez-nous	-
13	5303280364		Thermostat		Appelez-nous	-
14	5308015771		Switch-selector		Appelez-nous	-
15	K5308201		Support-end Cap (2)		Appelez-nous	-
16	5303271236		Clock		Appelez-nous	-
17	5301304907		Knob-clock (3)		Appelez-nous	-
18	5308012573		Switch-oven Lt		Appelez-nous	-
19	3051718		Glass-clock		Appelez-nous	-
12A	5301313767		Switch-s/u Lge (2)		Appelez-nous	-
4A	K5146604		Cap-end-lh		Appelez-nous	-
7A	5303271245		Light-sig Ov Lock		Appelez-nous	-
7B	5303051533		Light-signal Oven				$ 53.81

    View Diagram in Separate Window       Print Part List
