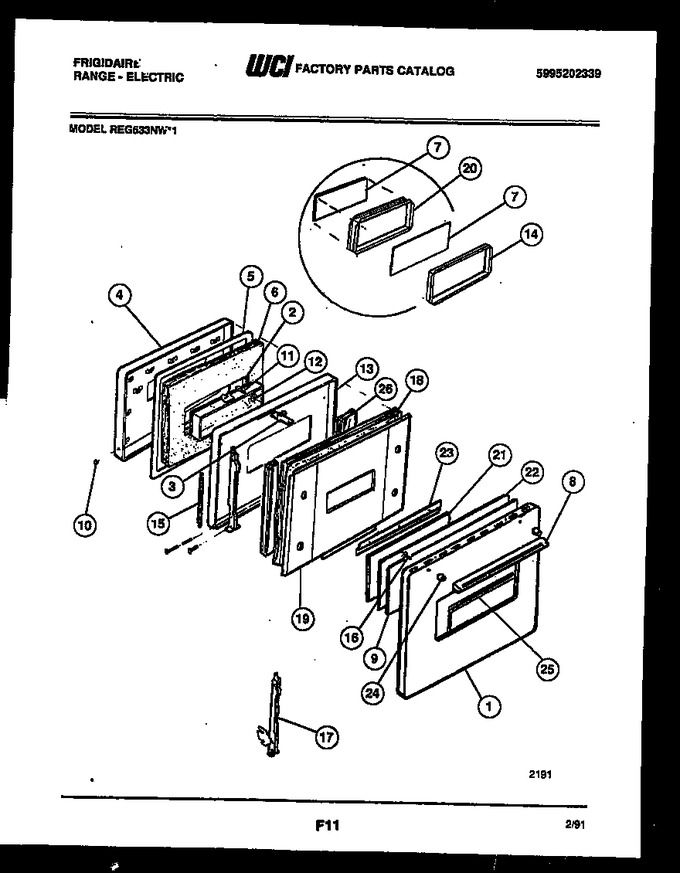

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303271324		Panel-door-white		Appelez-nous	-
2	5303269535		Gasket, Window		Appelez-nous	-
3	5301167830		Strike		Appelez-nous	-
4	5303269674		Baffle		Appelez-nous	-
5	5303051704		Gasket				$ 388.08
6	5303269528		Insulation-baffle		Appelez-nous	-
7	5303209512		Glass Heat Barrier (2)				$ 150.41
8	5308012552		Handle		Appelez-nous	-
9	5301318805		Insulation-panel		Appelez-nous	-
10	3051807		Button, Plug (2)		Appelez-nous	-
11	08002868		Screw 10 X 24 X 1/2				$ 14.18
12	08003259		Washer-padded (2)		Appelez-nous	-
13	3017468		Liner, Door		Appelez-nous	-
14	5303269564		Collar-glass		Appelez-nous	-
15	08003186		Spring (2)		Appelez-nous	-
16	K5104201		Screw, Handle		Appelez-nous	-
17	5303210232		Door Hinge Assy		Appelez-nous	-
18	5303269529		Insulation-airwash		Appelez-nous	-
19	5303269570		Panel, Airwash		Appelez-nous	-
20	5303269679		Spacer-glass		Appelez-nous	-
21	5303269526		Glass-outer		Appelez-nous	-
22	5303269574		Panel-insulator Pad		Appelez-nous	-
23	5303269554		Bracket-mtg (2)		Appelez-nous	-
24	5308003153		Spacer-handle, (2)		Appelez-nous	-
25	5301313568		Moulding-j		Appelez-nous	-
26	5303269530		Insulation, Airwash (2)		Appelez-nous	-
